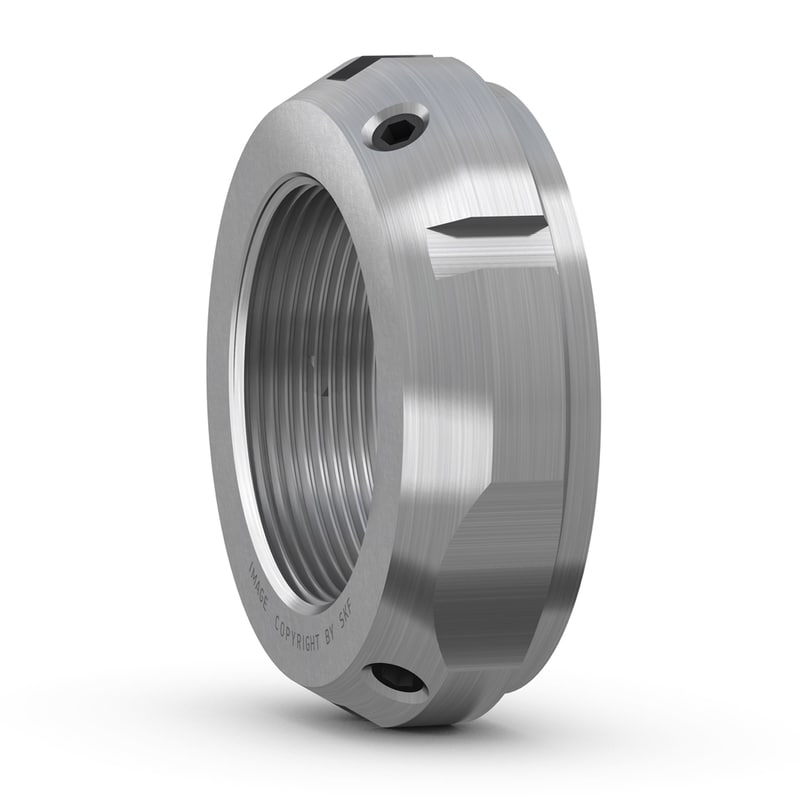

KMT precision lock nuts are intended for applications where high precision, simple assembly and reliable locking are required. The three equally-spaced locking pins enable these lock nuts to be accurately positioned at right angles to the shaft. However, they can also be adjusted to compensate for slight angular deviations of adjacent components. Maximum axial run-out between the locating face and thread (up to size 40): 0.005 mm
| G |
M 55×2
|
Thread |
|---|---|---|
| d1 |
78 mm
|
Outside diameter locating side face |
| B |
25 mm
|
Width |
| d3 |
85 mm
|
Outside diameter |
| d4 |
57 mm
|
Inner diameter locating side face |
| d5 |
74 mm
|
Diameter side face opposite to bearing |
| M |
80 mm
|
Width flat spanner |
| b |
7 mm
|
Width locating slot |
| h |
3 mm
|
Depth locating slot |
| Axial static load carrying capacity |
340 kN
|
| Mass |
0.56 kg
|
| Associated spanner (Hook spanner in accordance with DIN 1810) |
HN 12-13
|
| Set / Locking screw size |
M8
|
| Recommended tightening torque |
18 N·m
|
