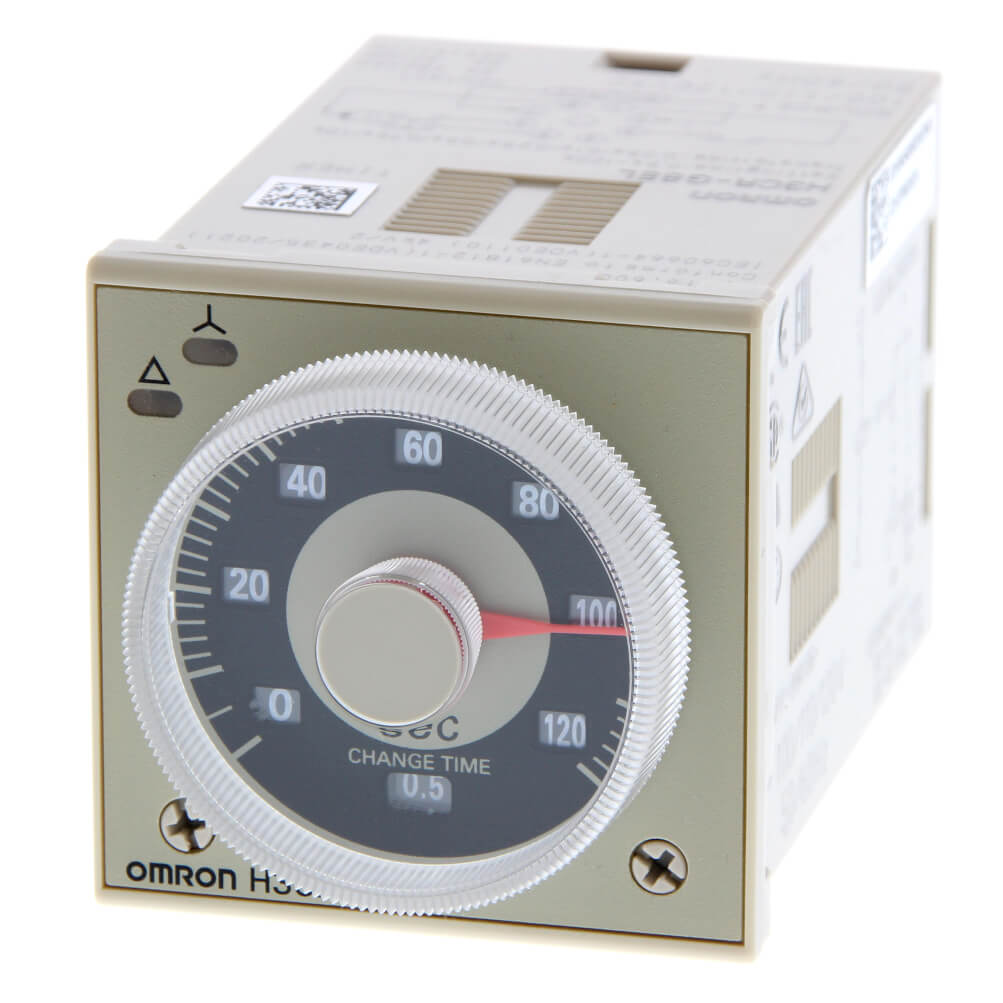

Timer, plug-in, 8-pin, 1/16DIN (48 x 48 mm), star-delta-delay, 0.5-120s, SPST-NO instantaneous, SPST-NO time-limit , 5 A, 200-240 VAC
| Type | Analog |
| Installation type | Socket |
| Functions | Star-delta |
| Size | 1/16 DIN (48 x 48 mm) |
| Terminal | Plug-in |
| Operating mode | Star-delta |
| Output type | Relay |
| Contact description | 3 x SPST-NO |
| Time range | 0.5 s – 120 s |
| Supply voltage AC | 200-240 V |
| Number of pin contact | 8 |
| Features | Instantaneous contact |
 |
P3G-08 | Socket, back-connecting, 8-pin, screw terminals |
|
 |
Y92A-48B | Protective cover for DIN 48×48 mm device, hard plastic |
|
 |
Y92F-30 | Flush panel mounting adapter for DIN 48×48 mm device |
|
 |
Y92P-48GL | Panel cover for H3CR-A* timer, light grey |
|
Datasheet
EN PDF
