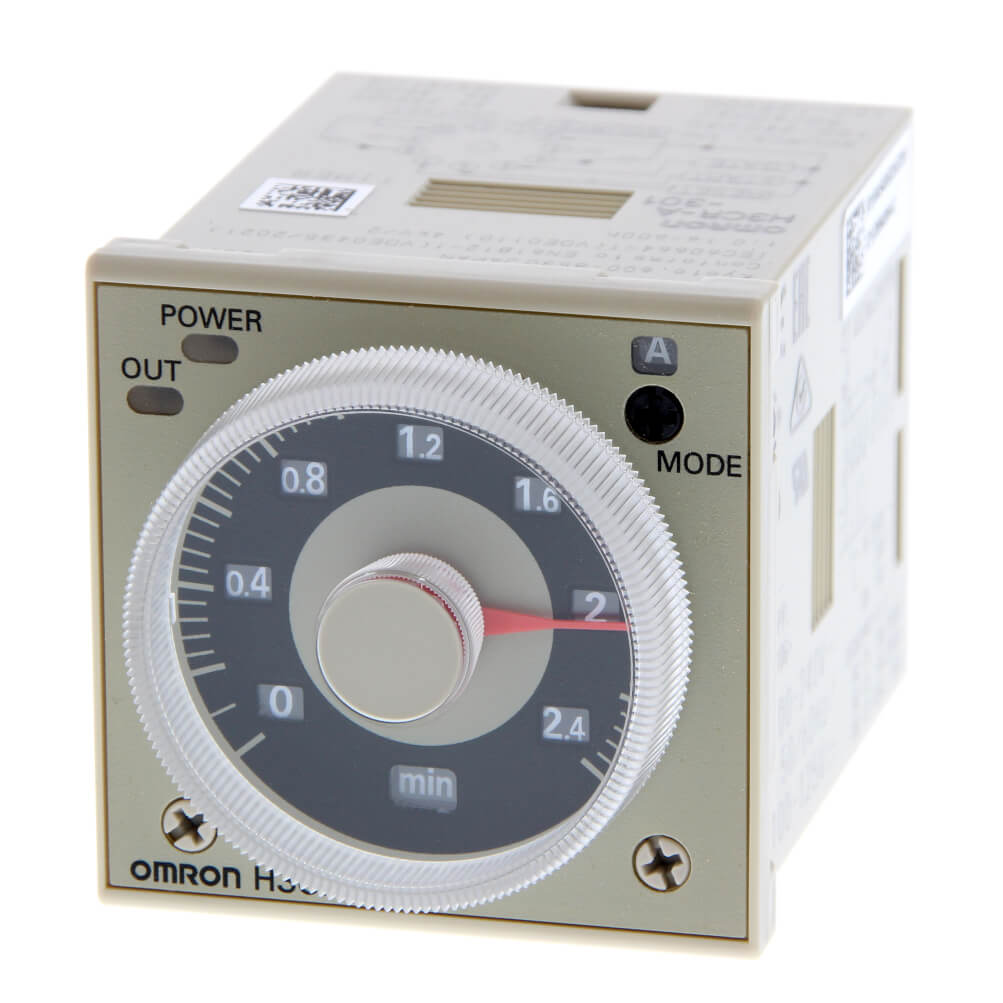

Timer, plug-in, 11-pin, 1/16DIN (48 x 48 mm),voltage input, multifunction, 0.05s-300h, Transistor output (NPN/PNP universal)
| Type | Analog |
| Installation type | Socket |
| Functions | Multi-functional |
| Size | 1/16 DIN (48 x 48 mm) |
| Terminal | Plug-in |
| Operating mode | Flicker OFF Start (Signal Start), Flicker ON Start (Signal Start), Interval (Signal Start), OFF Delay (Signal), ON Delay (Signal Start), Signal ON/OFF Delay |
| Output type | Transistor |
| Time range | 0.05 s – 300 h |
| Supply voltage AC | 24-48 V |
| Supply voltage DC | 12-48 V |
| Number of pin contact | 11 |
| Inputs | No-voltage |
 |
P3GA-11 | Socket, back-connecting, 11-pin, screw terminals |
|
 |
Y92A-48B | Protective cover for DIN 48×48 mm device, hard plastic |
|
 |
Y92F-30 | Flush panel mounting adapter for DIN 48×48 mm device |
|
 |
Y92F-73 | Adapter for H3CR replacement of STP-YMH timer |
|
 |
Y92P-48GL | Panel cover for H3CR-A* timer, light grey |
|
Datasheet
EN PDF
Timer, plug-in, 8-pin, 1/16DIN (48 x 48 mm), on/flicker-on/flicker-off/interval/one-shot-delay, 0.05s-300h, DPDT, 5 A
Timer, plug-in, 8-pin, 1/16DIN (48 x 48 mm), on/flicker-on/flicker-off/interval/one-shot-delay, 0.05s-300h, DPDT (inc. inst.), 5 A

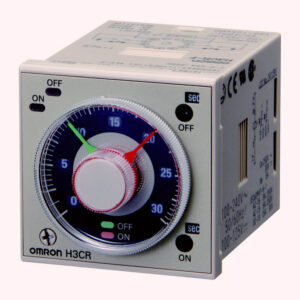

Timer, plug-in, 11-pin, 1/16DIN (48 x 48 mm), twin on & off-delay, flicker ON start, 0.05s-300h, DPDT, 5 A, 100 to 240 VAC, 100-125VDC
Timer, plug-in, 11-pin, DIN 48 x 48 mm, multifunction, 0.05 s-300 h, DPDT, 5 A, 100 to 240 VAC, 100-125VDC
