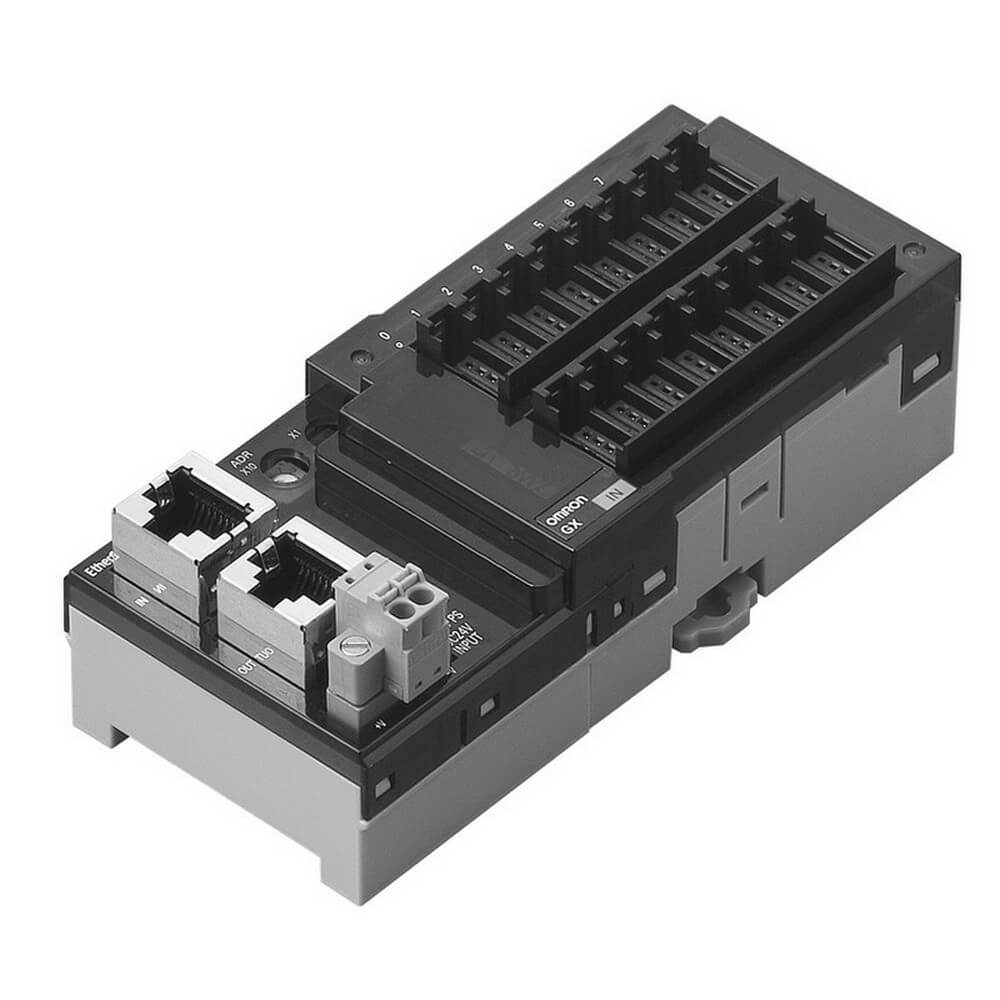

EtherCAT digital I/O unit, 8 x inputs + 8 x outputs, PNP, e-CON connectors (not included)
| Communication port(s) | EtherCAT Slave |
| Type of module | Digital I/O |
| I/O connection type | e-Con (plug not included) |
| Connection method | 3-wire |
| Number of digital inputs | 8 |
| Digital input type | PNP |
| Permitted voltage at input | 0-26.4 V |
| Number of digital outputs | 8 |
| Digital output type | PNP |
| Permitted voltage at output | 0-26.4 V |
| Output current | 0.5 A |
| Short-circuit protected outputs | ❌ |
| Number of IOV (V+) terminals | 18 |
| Number of IOG (V-) terminals | 18 |
| Number of COM terminals | 0 |
| I/O system | None |
| Degree of protection (IP) | IP20 |
| Product Height (unpacked) | 52 mm |
| Product Width (unpacked) | 115 mm |
| Product Depth (unpacked) | 49.8 mm |
 |
GX-JC03 | 3-port EtherCAT Junction module, 24 VDC power supply |
|
 |
GX-JC06 | 6-port EtherCAT Junction module, 24 VDC power supply |
|
| GX-JC06-H | 6-port EtherCAT Junction module, 24 VDC power supply, with node switches |
|
|
 |
XS6W-6LSZH8SS100CM-Y | Ethernet patch cable, F/UTP, Cat.6A, LSZH (Yellow), 1 m |
|
|
XS6W-6LSZH8SS200CM-Y | Ethernet patch cable, F/UTP, Cat.6A, LSZH (Yellow), 2 m |
|
|
XS6W-6LSZH8SS20CM-Y | Ethernet patch cable, F/UTP, Cat.6A, LSZH (Yellow), 0.2 m |
|
|
XS6W-6LSZH8SS500CM-Y | Ethernet patch cable, F/UTP, Cat.6A, LSZH (Yellow), 5 m |
|
|
XS6W-6LSZH8SS50CM-Y | Ethernet patch cable, F/UTP, Cat.6A, LSZH (Yellow), 0.5 m |
|
Datasheet
EN PDF
EtherCAT analog I/O unit, 4 x analog inputs, 0 to 5 V, 1 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA, resolution 1:8000 (full scale)
EtherCAT I/O unit, 2 x encoder inputs, line driver
EtherCAT digital I/O unit, 8 x inputs + 8 x outputs, NPN, e-CON connectors (not included)
EtherCAT digital I/O unit, 8 x inputs + 8 x outputs, PNP, 1-wire, expandable
