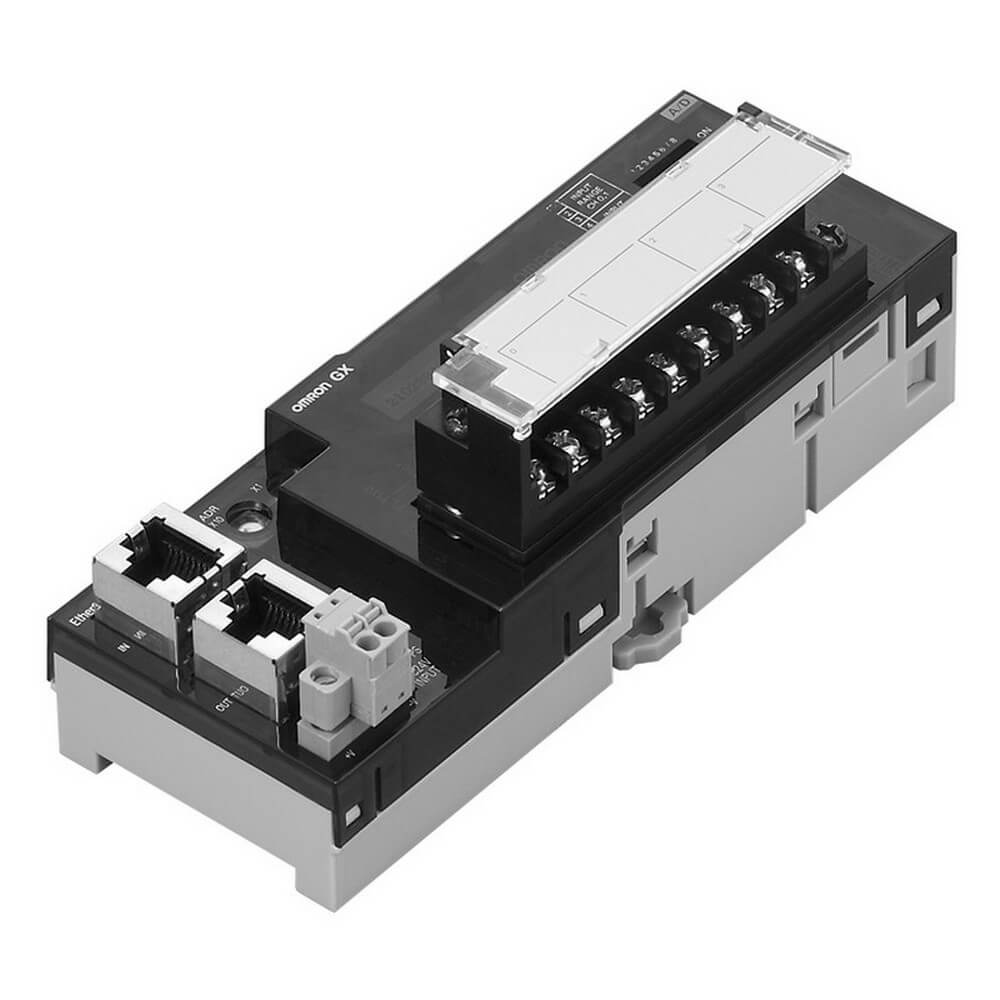

EtherCAT analog I/O unit, 4 x analog inputs, 0 to 5 V, 1 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA, resolution 1:8000 (full scale)
| Communication port(s) | EtherCAT Slave |
| Type of module | Analog I/O |
| I/O connection type | Screw |
| Number of analog inputs | 4 |
| Temperature input type | None |
| Linear analog input type | -10 to 10 V, 0 to 10 V, 0 to 5 V, 1 to 5 V, 4 to 20 mA |
| Resolution of the analog inputs | 13 Bit |
| Number of analog outputs | 0 |
| Linear analog output type | None |
| Degree of protection (IP) | IP20 |
| Product Height (unpacked) | 52 mm |
| Product Width (unpacked) | 135 mm |
| Product Depth (unpacked) | 57.1 mm |
| Product Weight (unpacked) | 180 g |
 |
GX-JC03 | 3-port EtherCAT Junction module, 24 VDC power supply |
|
 |
GX-JC06 | 6-port EtherCAT Junction module, 24 VDC power supply |
|
| GX-JC06-H | 6-port EtherCAT Junction module, 24 VDC power supply, with node switches |
|
|
 |
XS6W-6LSZH8SS100CM-Y | Ethernet patch cable, F/UTP, Cat.6A, LSZH (Yellow), 1 m |
|
|
XS6W-6LSZH8SS200CM-Y | Ethernet patch cable, F/UTP, Cat.6A, LSZH (Yellow), 2 m |
|
|
XS6W-6LSZH8SS20CM-Y | Ethernet patch cable, F/UTP, Cat.6A, LSZH (Yellow), 0.2 m |
|
|
XS6W-6LSZH8SS500CM-Y | Ethernet patch cable, F/UTP, Cat.6A, LSZH (Yellow), 5 m |
|
|
XS6W-6LSZH8SS50CM-Y | Ethernet patch cable, F/UTP, Cat.6A, LSZH (Yellow), 0.5 m |
|
Datasheet
EN PDF
EtherCAT digital I/O unit, 16 x outputs, NPN, e-CON connectors (not included)
EtherCAT digital I/O unit, 16 x inputs, NPN, e-CON connectors (not included)
EtherCAT digital I/O unit, 16 x outputs, NPN, 3-wire
EtherCAT digital I/O unit, 16 x outputs, PNP, 1-wire, expandable
