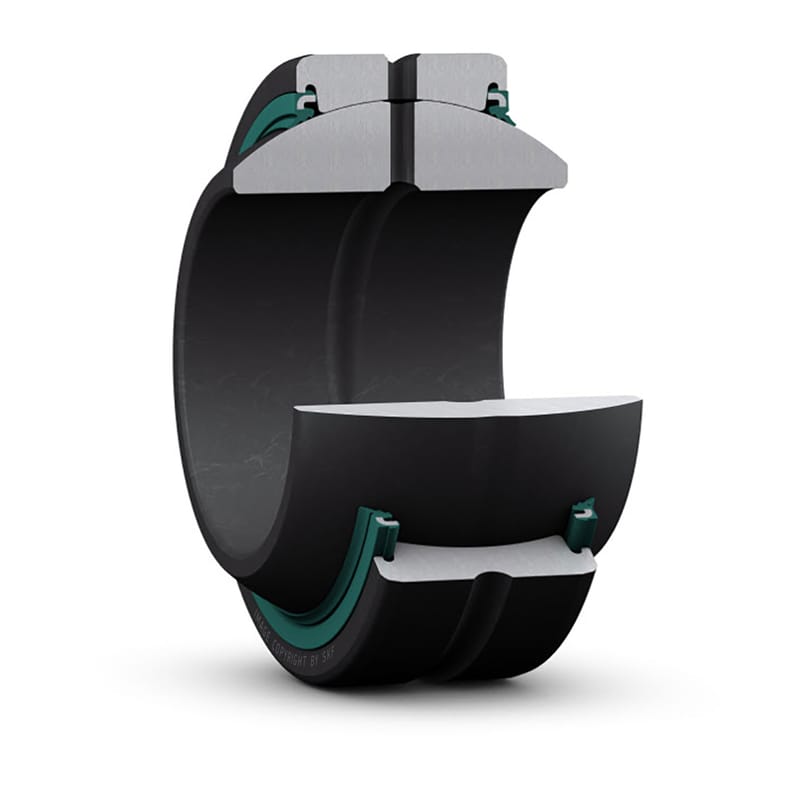

Radial spherical plain bearings are designed to accommodate radial and combined radial and axial loads, and also misalignment.
| Maintenance |
Relubrication required
|
| Sliding contact surface combination |
Steel/steel, standard
|
| Material, inner ring |
Bearing steel
|
| Material, outer ring |
Bearing steel
|
| Sealing |
Seal on both sides
|
| Sealing type |
Double-lip
|
| d |
139.7 mm
|
Bore diameter |
|---|---|---|
| D |
222.25 mm
|
Outside diameter |
| B |
125.73 mm
|
Width |
| C |
104.775 mm
|
Width outer ring |
| α |
7 °
|
Angle of tilt |
| dk |
207.162 mm
|
Raceway diameter inner ring |
| b |
15 mm
|
Width annular lubrication groove at outer ring |
| b1 |
11 mm
|
Width annular lubrication groove at inner ring |
| M |
8 mm
|
Diameter lubrication hole (outer ring) |
| r1 |
min. 2 mm
|
Chamfer dimension bore |
| r2 |
min. 1.1 mm
|
Chamfer dimension outer ring |
| da |
min. 152 mm
|
Abutment diameter shaft |
|---|---|---|
| da |
max. 164 mm
|
Abutment diameter shaft |
| Da |
min. 197.5 mm
|
Abutment diameter housing |
| Da |
max. 213.5 mm
|
Abutment diameter housing |
| ra |
max. 2 mm
|
Fillet radius shaft |
| rb |
max. 1.1 mm
|
Fillet radius housing |
| Basic dynamic load rating | C |
1 730 kN
|
|---|---|---|
| Basic static load rating | C0 |
5 200 kN
|
| Specific dynamic load factor | K |
100 N/mm²
|
| Specific static load factor | K0 |
300 N/mm²
|
| Material constant | KM |
330
|
| Mass plain bearing |
20.5 kg
|
