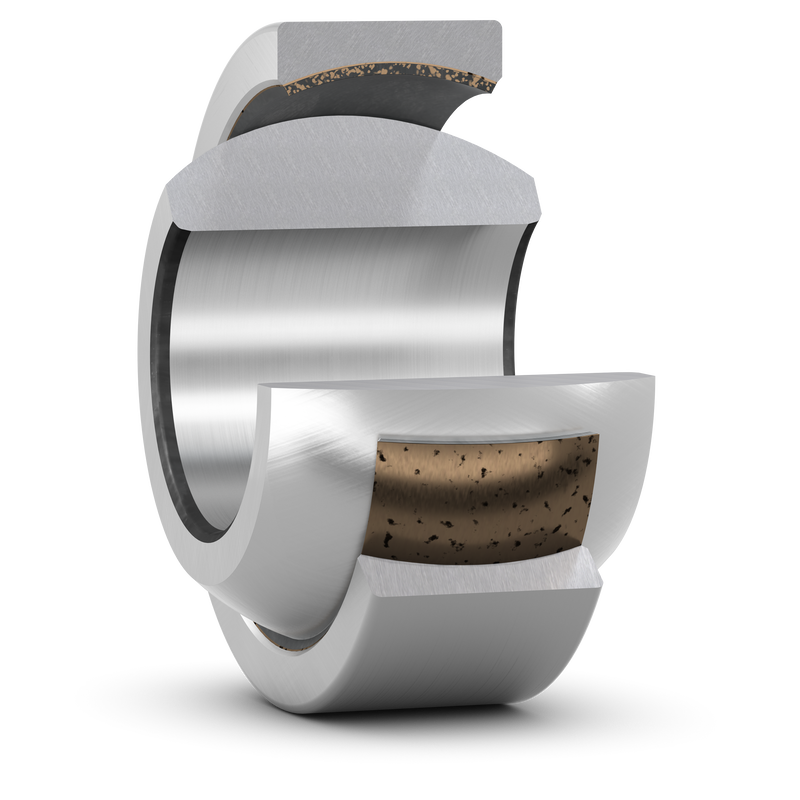

These spherical plain bearings have a steel/PTFE sintered bronze contact surface combination and are maintenance-free. The sliding surfaces have to be externally protected from contaminants. These bearings are also available with a wider inner ring and a larger outside diameter (suffix GEH), which enable higher load ratings and larger tilt angles.
| Maintenance |
Maintenance-free
|
| Sliding contact surface combination |
Steel/PTFE sintered bronze
|
| Material, inner ring |
Bearing steel
|
| Material, outer ring |
Steel
|
| Sealing |
Without
|
| d |
12 mm
|
Bore diameter |
|---|---|---|
| D |
26 mm
|
Outside diameter |
| B |
15 mm
|
Width |
| C |
9 mm
|
Width outer ring |
| α |
18 °
|
Angle of tilt |
| dk |
22 mm
|
Raceway diameter inner ring |
| r1 |
min. 0.3 mm
|
Chamfer dimension bore |
| r2 |
min. 0.3 mm
|
Chamfer dimension outer ring |
| da |
min. 13.7 mm
|
Abutment diameter shaft |
|---|---|---|
| da |
max. 16.1 mm
|
Abutment diameter shaft |
| Da |
min. 20.9 mm
|
Abutment diameter housing |
| Da |
max. 24.5 mm
|
Abutment diameter housing |
| ra |
max. 0.3 mm
|
Fillet radius shaft |
| rb |
max. 0.3 mm
|
Fillet radius housing |
| Basic dynamic load rating | C |
18 kN
|
|---|---|---|
| Basic static load rating | C0 |
45 kN
|
| Specific dynamic load factor | K |
100 N/mm²
|
| Specific static load factor | K0 |
250 N/mm²
|
| Material constant | KM |
1 400
|
| Mass plain bearing |
0.03 kg
|
