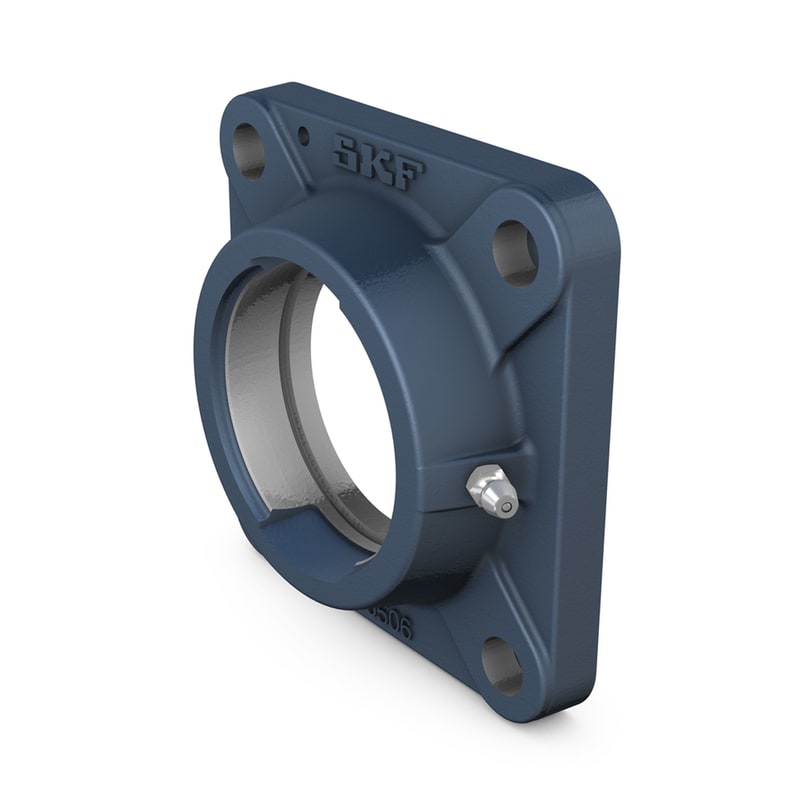

These square flanged housings for insert bearings are made of grey cast iron and can be bolted with four bolts to a machine wall or frame. They have been developed for bearing arrangements that must operate reliably in difficult environments.
| Material |
Cast iron
|
| Da |
100 mm
|
Diameter of spherical seat |
|---|---|---|
| Db1 |
122 mm
|
Top external diameter |
| Db2 |
134 mm
|
Base external diameter |
| Dc |
150.8 mm
|
Centring diameter |
| A |
47.5 mm
|
Overall width |
| A1 |
16 mm
|
Flange width |
| A2 |
31 mm
|
Axial position of spherical seat (from support surface) |
| A3 |
3.2 mm
|
Depth of centring recess |
| A5 |
37.5 mm
|
Standout of end cover |
| J |
130 mm
|
Distance between attachment bolts |
| L |
162 mm
|
Overall length |
| N |
18 mm
|
Diameter of attachment bolt hole |
| RG |
1/4-28 UNF
|
Housing thread for grease fitting |
|---|---|---|
| R1 |
32 mm
|
Axial position of the housing thread |
| DN |
6.5 mm
|
Diameter of head sphere of grease fitting |
|---|---|---|
| SWN |
7 mm
|
Hexagonal key size for the grease fitting |
| GN |
1/4-28 SAE-LT
|
Thread of the grease fitting |
| J6 |
148 mm
|
Distance of dowel pins |
|---|---|---|
| J7 |
45 mm
|
Axial offset of dowel pins |
| N4 |
4 mm
|
Recommended diameter for dowel pins |
| Mass housing |
2.25 kg
|
| Recommended diameter for attachment bolts, mm | G |
16 mm
|
|---|---|---|
| Recommended diameter for attachment bolts, inch | G |
0.625 in
|
