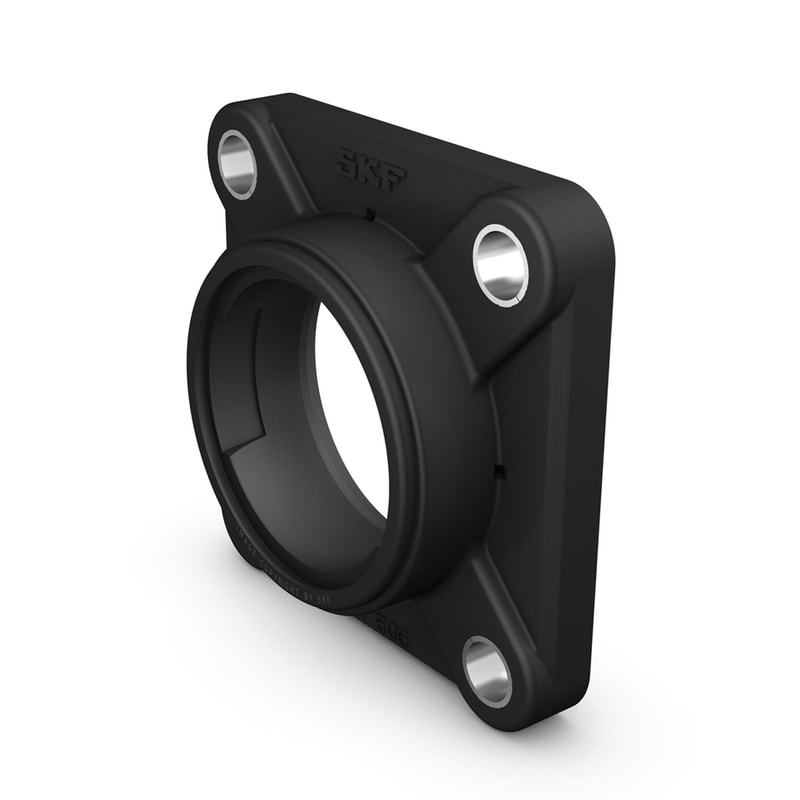

These square flanged housings for insert bearings are made of composite material and are chemical resistant, lightweight and strong. These housings have been developed for bearing arrangements that must operate reliably in difficult environments for extended periods without maintenance.
| Material |
Composite
|
| Da |
72 mm
|
Diameter of spherical seat |
|---|---|---|
| Db |
90 mm
|
Top external diameter |
| Dc |
106.4 mm
|
Centring diameter |
| A |
35 mm
|
Overall width |
| A1 |
17 mm
|
Flange width |
| A2 |
21 mm
|
Axial position of spherical seat (from support surface) |
| A3 |
3.2 mm
|
Depth of centring recess |
| A5 |
24 mm
|
Standout of end cover |
| J |
92 mm
|
Distance between attachment bolts |
| L |
118 mm
|
Overall length |
| N |
14.8 mm
|
Diameter of attachment bolt hole |
| Mass housing |
0.24 kg
|
| Recommended diameter for attachment bolts, mm | G |
12 mm
|
|---|---|---|
| Recommended diameter for attachment bolts, inch | G |
0.5 in
|
