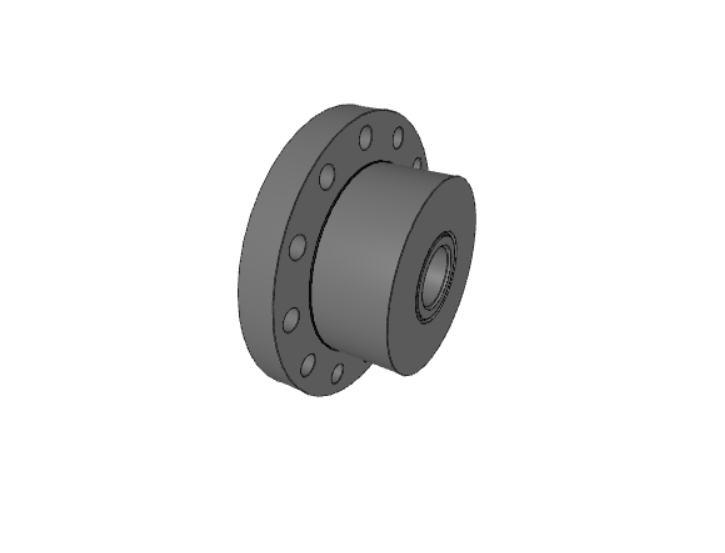

| d |
40 mm
|
Bore diameter |
|---|---|---|
| H |
165 mm
|
Height |
| A |
66 mm
|
Overall height |
| A1 |
64.26 mm
|
Distance over distance ring side faces |
| A2 |
43.5 mm
|
Distance flange position from side face |
| A3 |
17 mm
|
Flange width |
| d1 |
55 mm
|
Shoulder diameter of laminar ring |
| D1 |
128 mm
|
Cartridge outside diameter at flange side |
| D2 |
124 mm
|
Cartridge outside diameter at housing seat |
| D3 |
66 mm
|
Lock nut innner diameter |
| Basic dynamic load rating | C |
42.5 kN
|
|---|---|---|
| Basic static load rating | C0 |
112 kN
|
| Fatigue load limit | Pu |
4.15 kN
|
| Attainable speed for preload class A |
5 040 r/min
|
|
| Attainable speed for preload class B |
2 520 r/min
|
|
| Contact angle | α |
62 °
|
| Preload class A |
3 400 N
|
|
| Preload class B |
6 800 N
|
|
| Frictional moment for preload class A |
0.212 N·m
|
|
| Frictional moment for preload class B |
0.46 N·m
|
|
| Axial stiffness for preload A (sets of two brgs back-to-back or face-to-face) |
1 130 N/µm
|
|
| Axial stiffness for preload B (sets of two brgs back-to-back or face-to-face) |
1 440 N/µm
|
| Mass cartridge unit |
6.1 kg
|
| Through hole diameter for attachment bolts | N |
11.4 mm
|
|---|---|---|
| Pitch diameter of attachment bolt holes | J |
146 mm
|
| Cartridge half diameter without flange | J1 |
64 mm
|
