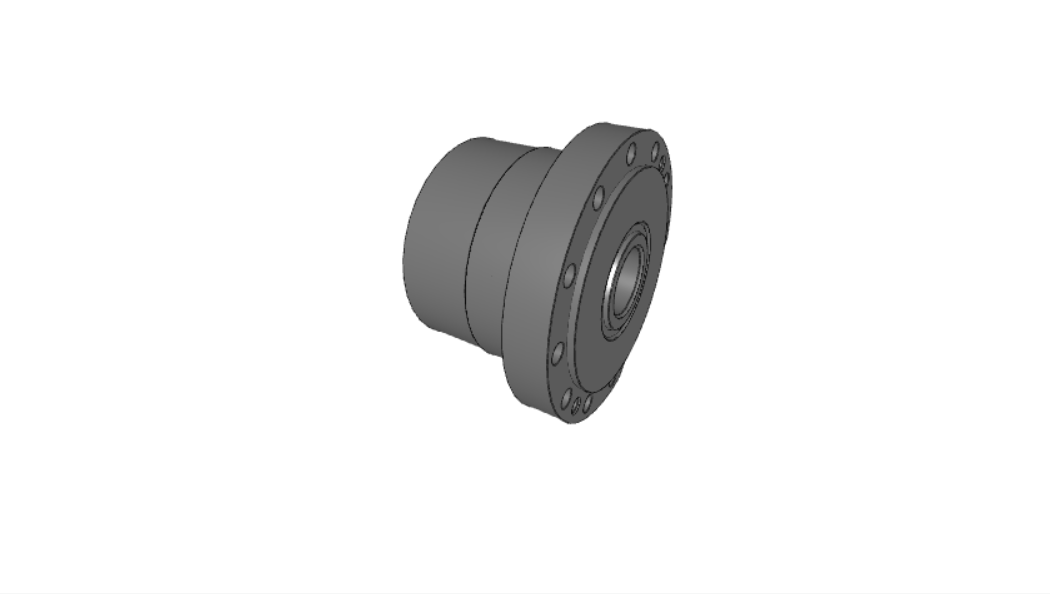

| d |
40 mm
|
Bore diameter |
|---|---|---|
| H |
165 mm
|
Height |
| A |
106 mm
|
Overall height |
| A1 |
106.26 mm
|
Distance over distance ring side faces |
| A2 |
4 mm
|
Distance flange position from side face |
| A3 |
24 mm
|
Flange width |
| A4 |
≈ 1 mm
|
Standout of lock nut |
| C |
35 mm
|
Length of the housing seat surface |
| d1 |
55 mm
|
Shoulder diameter of laminar ring |
| D1 |
128 mm
|
Cartridge outside diameter at flange side |
| D2 |
128 mm
|
Cartridge outside diameter at housing seat |
| D3 |
66 mm
|
Lock nut innner diameter |
| Basic dynamic load rating | C |
69.3 kN
|
|---|---|---|
| Basic static load rating | C0 |
224 kN
|
| Fatigue load limit | Pu |
8.3 kN
|
| Attainable speed for preload class A |
3 150 r/min
|
|
| Attainable speed for preload class B |
1 575 r/min
|
|
| Contact angle | α |
62 °
|
| Preload class A |
6 800 N
|
|
| Preload class B |
13 600 N
|
|
| Frictional moment for preload class A |
0.424 N·m
|
|
| Frictional moment for preload class B |
0.92 N·m
|
|
| Axial stiffness for preload A (sets of two brgs back-to-back or face-to-face) |
2 260 N/µm
|
|
| Axial stiffness for preload B (sets of two brgs back-to-back or face-to-face) |
2 880 N/µm
|
| Mass cartridge unit |
10 kg
|
| Through hole diameter for attachment bolts | N |
11.4 mm
|
|---|---|---|
| Pitch diameter of attachment bolt holes | J |
146 mm
|
| Cartridge half diameter without flange | J1 |
65.5 mm
|
| Threaded hole size | G |
M10x1,5
|
