$2,560.00
| Special feature | Free from silicone; Gold-plated contacts |
|---|---|
| Application | hygienic and wet areas in the food industry |
| Free from silicone | yes |
| Operating voltage [V] | < 60 AC/DC |
|---|---|
| Protection class | II |
| Max. current load total [A] | 4; (…40 °C) |
| Ambient temperature [°C] | -25…100 | |
|---|---|---|
| Storage temperature [°C] | -25…55 | |
| Storage humidity [%] | 10…100 | |
| Other climatic conditions for storage according to stated class |
|
|
| Protection | IP 65; IP 67; IP 68; IP 69K |
| Weight [g] | 42 |
|---|---|
| Materials | PA 6.6 grey; Sealing: EPDM |
| Moulded-body material | PA 6.6 |
| Material nut | stainless steel (1.4404 / 316L) |
| Sealing material | EPDM |
| Pack quantity | 1 pcs. |
|---|
| screw terminals: 0.25…1 mm²; Cable sheath: Ø 3.5…6 mm; AWG 23…17 |

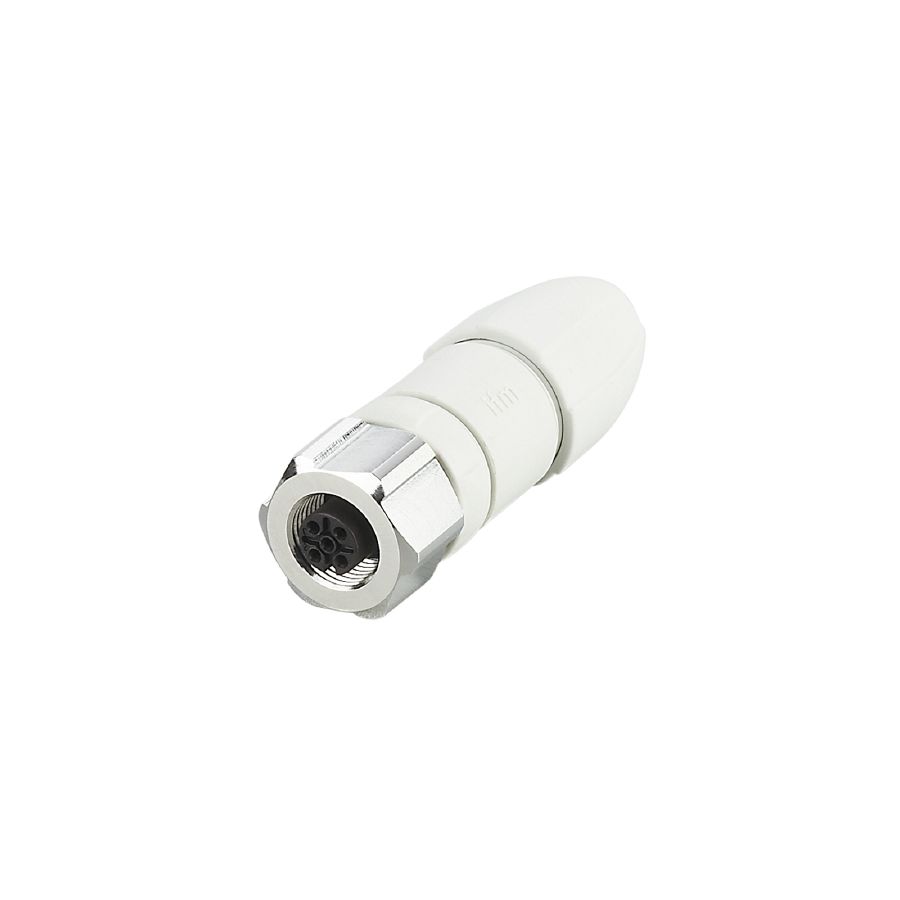

| Connection | Connector: 1 x M12, straight; coding: A; Moulded body: PA 6.6, grey; Locking: stainless steel (1.4404 / 316L); Sealing: EPDM; Contacts: gold-plated; Tightening torque: 0.6…1.2 Nm; Take into account the maximum value of the counterpart! |
|---|
