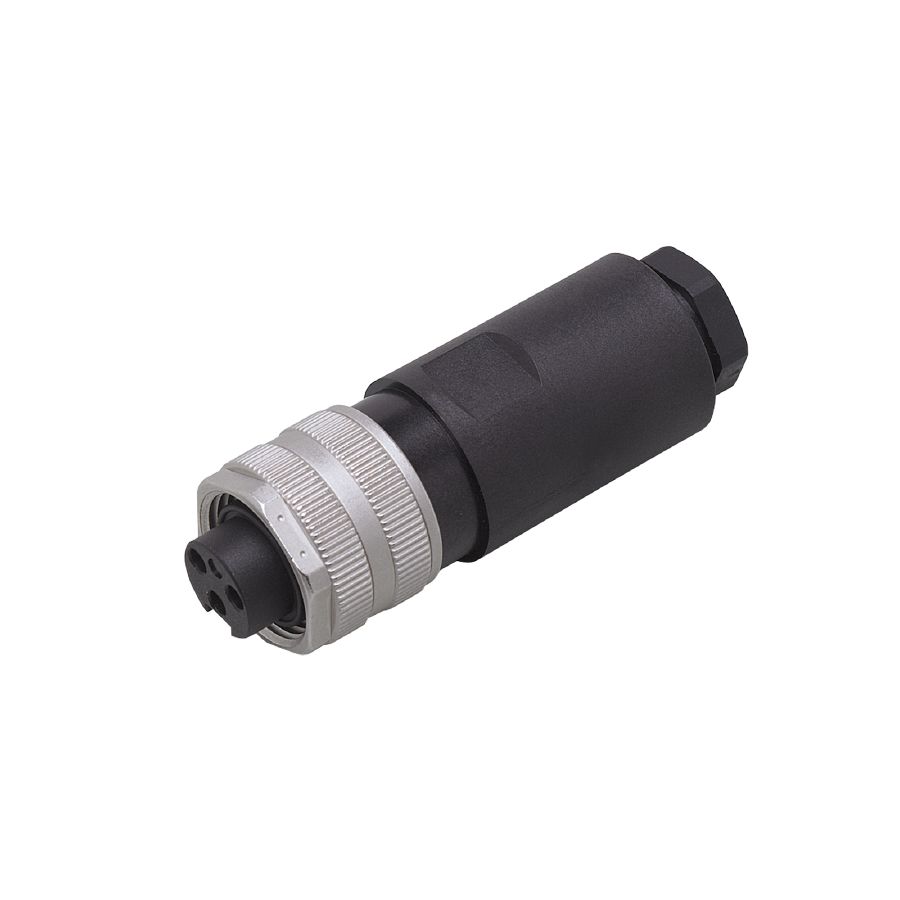

E70170

Gold-plated contacts for reliable electrical connections
High protection rating for the requirements of harsh industrial environments
Wide operating temperature range
Safe cable connection with screw terminals

SKU: E70170

$1,980.00

Electrical data

Operating voltage [V]	< 300 AC/DC
Max. current load total [A]	12

Operating conditions

Ambient temperature [°C]	-25…85
Protection	IP 67

Mechanical data

Weight [g]	54.2
Dimensions [mm]	27 x 27 x 83
Moulded-body material	PBT
Material nut	diecast zinc

Remarks

Pack quantity	1 pcs.

Electrical connection

	terminals: …1.5 mm²; Cable sheath: Ø 8…10 mm

Electrical connection – socket

Connection	Connector: 1 x 7/8″, straight; Moulded body: PBT; Locking: diecast zinc

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E70170-02 — 03.12.2021 —

E70170-02_EN-US

Datasheet
EN PDF
