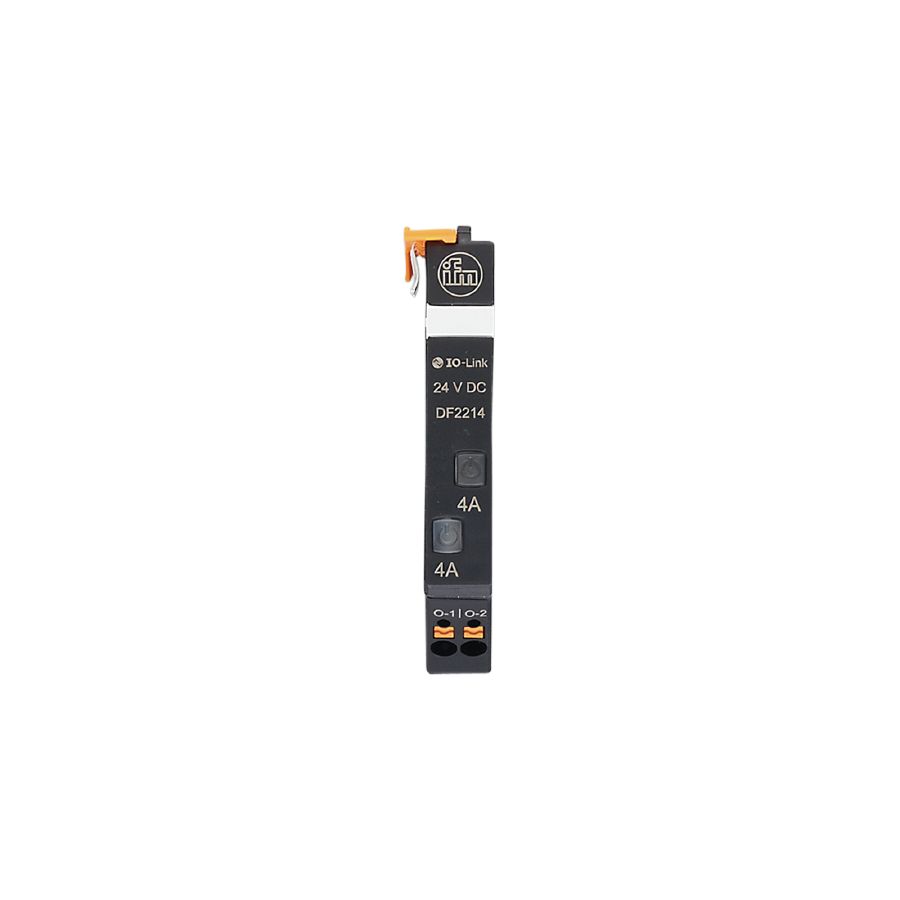

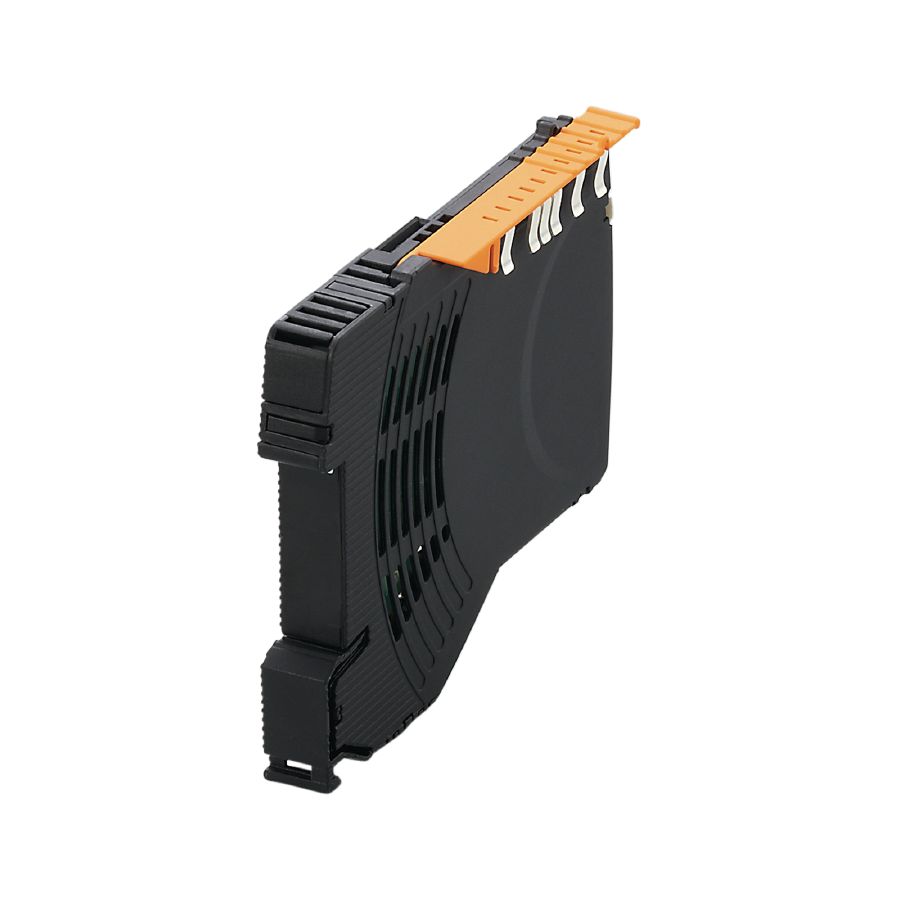

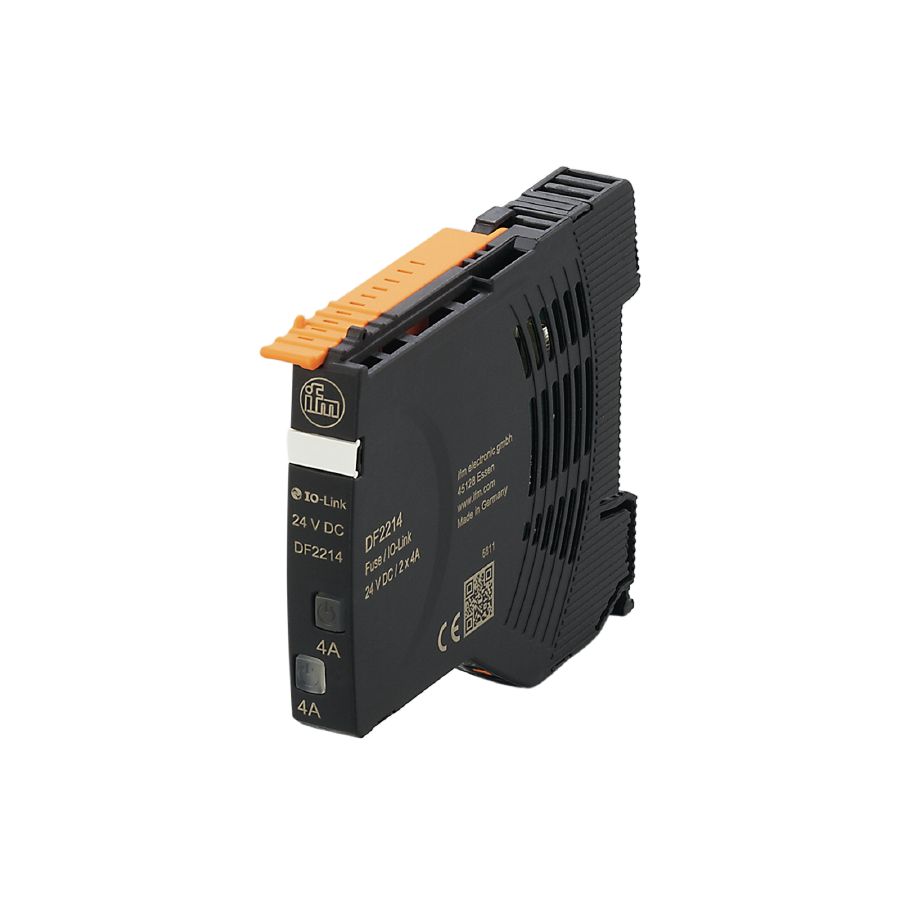

For the permanent monitoring of the 24 V secondary circuit
Reliable switch-off in case of a fault
Modular and selective protection of machinery and plant
Clearly visible LED for indicating capacity utilisation, tripping and operation
With IO-Link for transmission of signals and diagnostic data

SKU: DF2214

$5,980.00

Electrical data

Operating voltage [V]	to SELV/PELV ; “supply class 2” according to UR
Nominal voltage DC [V]	24
Input voltage DC [V]	19.2…30
Protection class	III
Mains buffering time (nominal voltage 24 V DC) [ms]	10
Closed-circuit current [mA]	8
Number of channels	2
Nominal current [A]	4
Nominal current (Fail Safe Element) [A]	4

Outputs

Load capacitance, total [mF]	15

Operating conditions

Ambient temperature [°C]	-25…60
Storage temperature [°C]	-40…70
Protection	IP 20; (on the front)
Pollution degree	2

Tests / approvals

EMC

EN 61000-6-3	radiation of interference
EN 61000-6-2	immunity

Mechanical data

Weight [g]	72.5
Dimensions [mm]	80 x 12.5 x 98.5

Displays / operating elements

Display

status

2 x LED, red / green / orange

Operating elements

2 x	pushbutton

Electrical connection

Connection	push-in terminals:

Diagrams and graphs

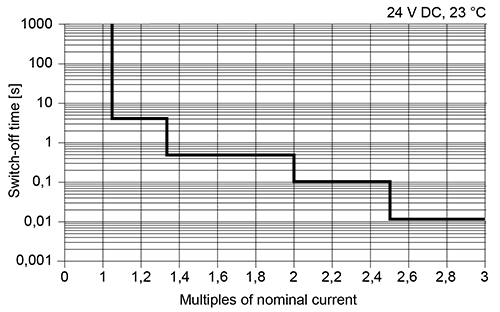

	time-current characteristics
