SIZE RANGE: 1 in F & 1 1/4 in M
MAX TEMP: 180°F
MAX PRESSURE: 150 PSI

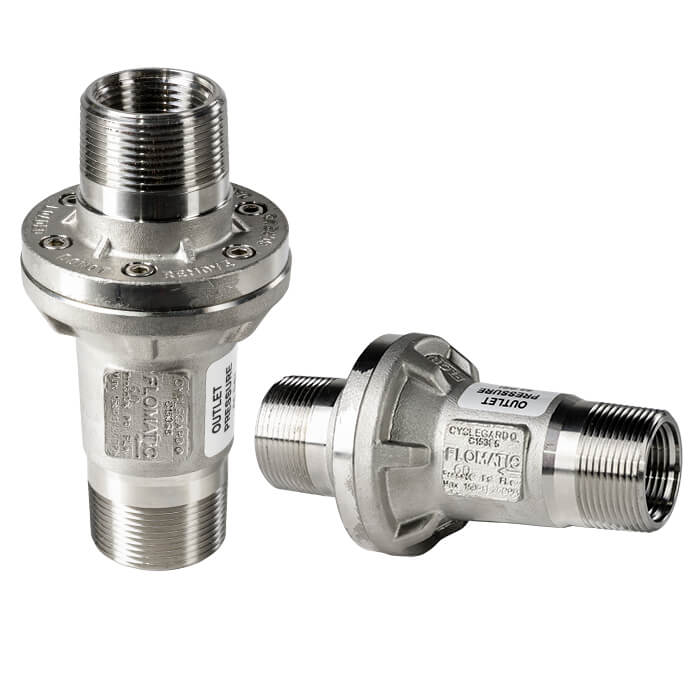

CONSTANT PRESSURE PUMP CONTROL VALVE Reduces rapid pump cycling and maintains a preset system operating pressure independent from low or high flow conditions. Valve body is all stainless steel female NPT connection. The valve supports a hanging load up to 3,400 lbs. and fits in a 4″” well casing. Dual purpose 1″” female & 1 ¼”” male design is rated for 1 – 20 GPM. The full port 1 ¼”” female design is rated for 2 – 50 GPM.
PLEASE NOTE: The valve pressure setting must be below the pressure switch-off setting. Consult O&M manual for proper installation.
| Part Number | Size | Style | None | List Price |
|---|---|---|---|---|
| C153002S6A | 1″” F x 1 1/4″” M | 40 PSI | 1 | $442 |
| C153002S6-3A* | 1″” F x 1 1/4″” M | 40 PSI | 3 | $442 |
| C153003S6A | 1 1/4″” F | 40 PSI | 1 | $662 |
| C153003S6-3A* | 1 1/4″” F | 40 PSI | 3 | $662 |
| C153002S6 | 1″” F x 1 1/4″” M | 50 PSI | 1 | $442 |
| C153002S6-3* | 1″” F x 1 1/4″” M | 50 PSI | 3 | $442 |
| C153003S6 | 1 1/4″” F | 50 PSI | 1 | $662 |
| C153003S6-3* | 1 1/4″” F | 50 PSI | 3 | $662 |
| C153002S6B | 1″” F x 1 1/4″” M | 60 PSI | 1 | $442 |
| C153002S6-3B* | 1″” F x 1 1/4″” M | 60 PSI | 3 | $442 |
| C153003S6B | 1 1/4″” F | 60 PSI | 1 | $662 |
| C153003S6-3B* | 1 1/4″” F | 60 PSI | 3 | $662 |
| C153002S6C | 1″” F x 1 1/4″” M | 70 PSI | 1 | $442 |
| C153002S6-3C* | 1″” F x 1 1/4″” M | 70 PSI | 3 | $442 |
