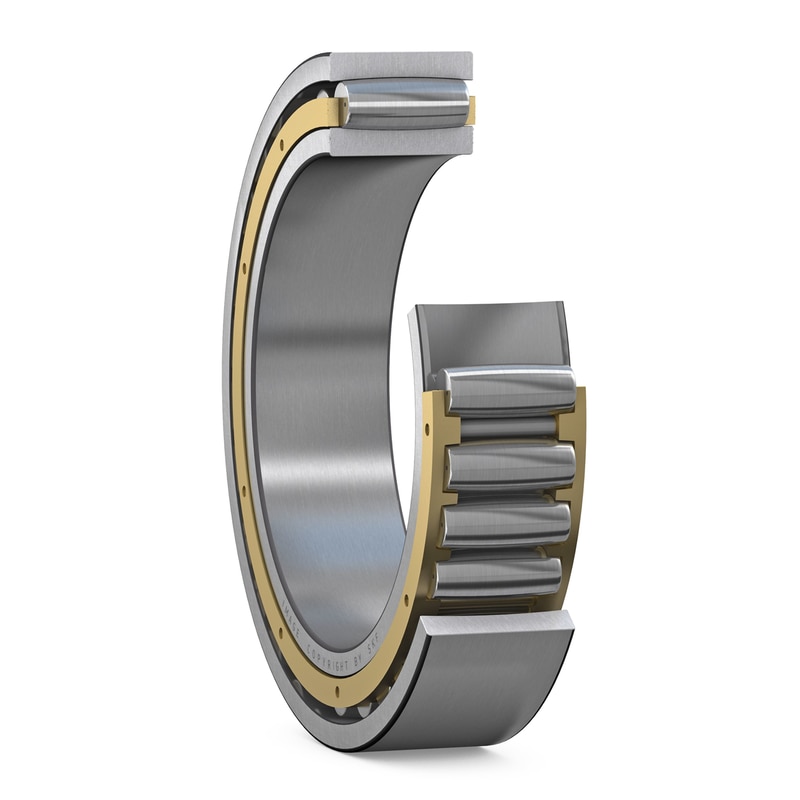

CARB toroidal roller bearings are unique: as well as accommodating misalignment without increased stress levels, they also provide frictionless axial movement within the bearing in the non-locating position in self-aligning bearing arrangements. Being SKF Explorer bearings, they can accommodate higher load levels and provide significantly extended service life.
| SKF performance class |
SKF Explorer
|
| Bore type |
Cylindrical
|
| d |
1 120 mm
|
Bore diameter |
|---|---|---|
| D |
1 460 mm
|
Outside diameter |
| B |
335 mm
|
Width |
| d2 |
≈ 1 225 mm
|
Shoulder diameter of inner ring |
| D1 |
≈ 1 362 mm
|
Shoulder or recess diameter of outer ring |
| s1 |
max. 76.1 mm
|
Permissible axial displacement |
| r1,2 |
min. 7.5 mm
|
Chamfer dimension |
| da |
min. 1 148 mm
|
Diameter of shaft abutment |
|---|---|---|
| da |
max. 1 220 mm
|
Diameter of shaft abutment |
| Da |
min. 1 344 mm
|
Diameter of housing abutment |
| Da |
max. 1 432 mm
|
Abutment diameter housing |
| Ca |
min. 47.6 mm
|
Minimum width of space required in housing |
| ra |
max. 6 mm
|
Radius of fillet |
|
||
| Basic dynamic load rating | C |
13 200 kN
|
|---|---|---|
| Basic static load rating | C0 |
31 500 kN
|
| Fatigue load limit | Pu |
1 700 kN
|
| Reference speed |
200 r/min
|
|
| Limiting speed |
260 r/min
|
|
| Misalignment factor | k1 |
0
|
| Internal clearance factor | k2 |
0.12
|
| Mass |
1 628 kg
|
