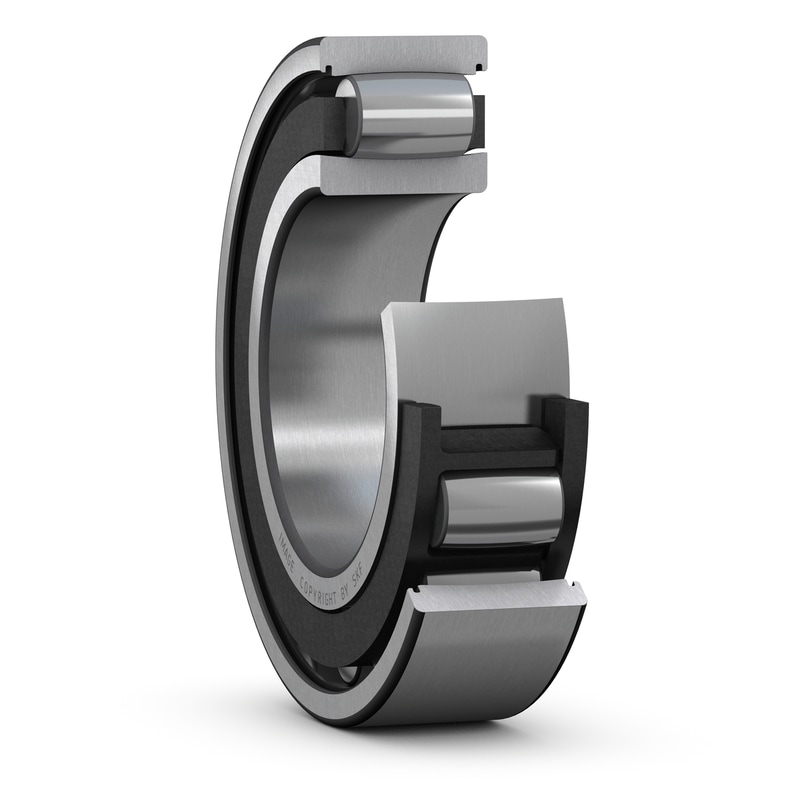

CARB toroidal roller bearings are unique: as well as accommodating misalignment without increased stress levels, they also provide frictionless axial movement within the bearing in the non-locating position in self-aligning bearing arrangements. Being SKF Explorer bearings, they can accommodate higher load levels and provide significantly extended service life.
| SKF performance class |
SKF Explorer
|
| Bore type |
Tapered 1:12
|
| d |
50 mm
|
Bore diameter |
|---|---|---|
| D |
90 mm
|
Outside diameter |
| B |
23 mm
|
Width |
| d2 |
≈ 61.9 mm
|
Shoulder diameter of inner ring |
| D1 |
≈ 79.4 mm
|
Shoulder or recess diameter of outer ring |
| s1 |
max. 7.1 mm
|
Permissible axial displacement |
| r1,2 |
min. 1.1 mm
|
Chamfer dimension |
| Da |
min. 76.7 mm
|
Diameter of housing abutment |
|---|---|---|
| Da |
max. 83 mm
|
Abutment diameter housing |
| Ca |
min. -0.8 mm
|
Minimum width of space required in housing |
| ra |
max. 1 mm
|
Radius of fillet |
|
||
| Basic dynamic load rating | C |
98 kN
|
|---|---|---|
| Basic static load rating | C0 |
100 kN
|
| Fatigue load limit | Pu |
11.8 kN
|
| Reference speed |
7 000 r/min
|
|
| Limiting speed |
9 500 r/min
|
|
| Misalignment factor | k1 |
0.097
|
| Internal clearance factor | k2 |
0.128
|
| Mass |
0.58 kg
|
