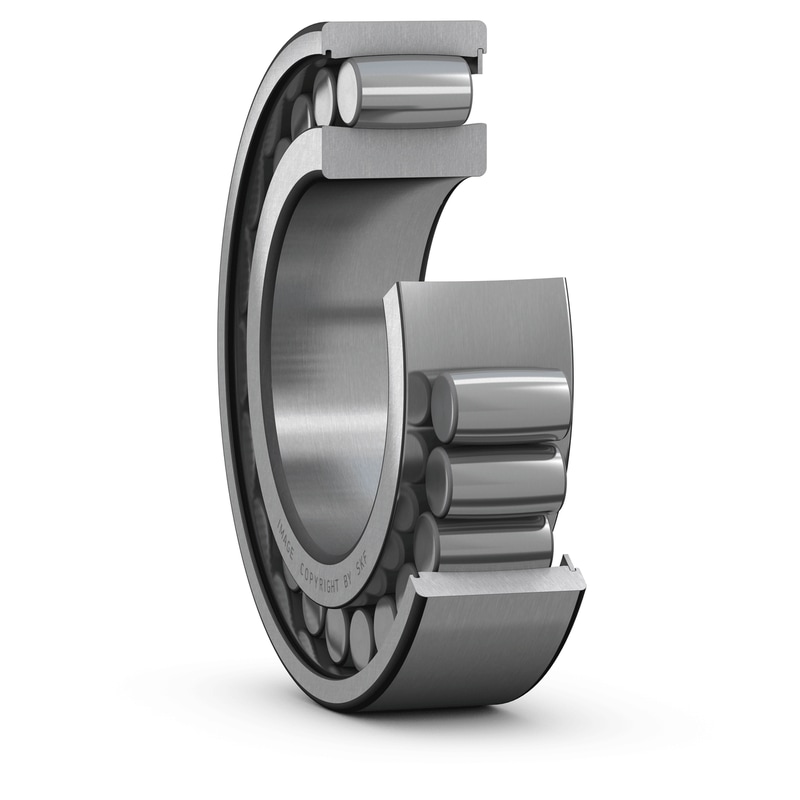

CARB toroidal roller bearings are unique: as well as accommodating misalignment without increased stress levels, they also provide frictionless axial movement within the bearing in the non-locating position in self-aligning bearing arrangements. This full complement bearing, which has a lower speed rating, uses as many rollers as possible, giving it the highest possible load rating.
| SKF performance class |
SKF Explorer
|
| Bore type |
Cylindrical
|
| d |
75 mm
|
Bore diameter |
|---|---|---|
| D |
115 mm
|
Outside diameter |
| B |
40 mm
|
Width |
| d2 |
≈ 88.7 mm
|
Shoulder diameter of inner ring |
| D1 |
≈ 101 mm
|
Shoulder or recess diameter of outer ring |
| s1 |
max. 9.4 mm
|
Permissible axial displacement |
| s2 |
max. 5.1 mm
|
Permissible axial displacement |
| r1,2 |
min. 1.1 mm
|
Chamfer dimension |
| da |
min. 81 mm
|
Diameter of shaft abutment |
|---|---|---|
| da |
max. 94 mm
|
Diameter of shaft abutment |
| Da |
max. 109 mm
|
Abutment diameter housing |
| ra |
max. 1 mm
|
Radius of fillet |
| Basic dynamic load rating | C |
208 kN
|
|---|---|---|
| Basic static load rating | C0 |
345 kN
|
| Fatigue load limit | Pu |
40.5 kN
|
| Limiting speed |
2 000 r/min
|
|
| Misalignment factor | k1 |
0.099
|
| Internal clearance factor | k2 |
0.114
|
| Mass |
1.6 kg
|
