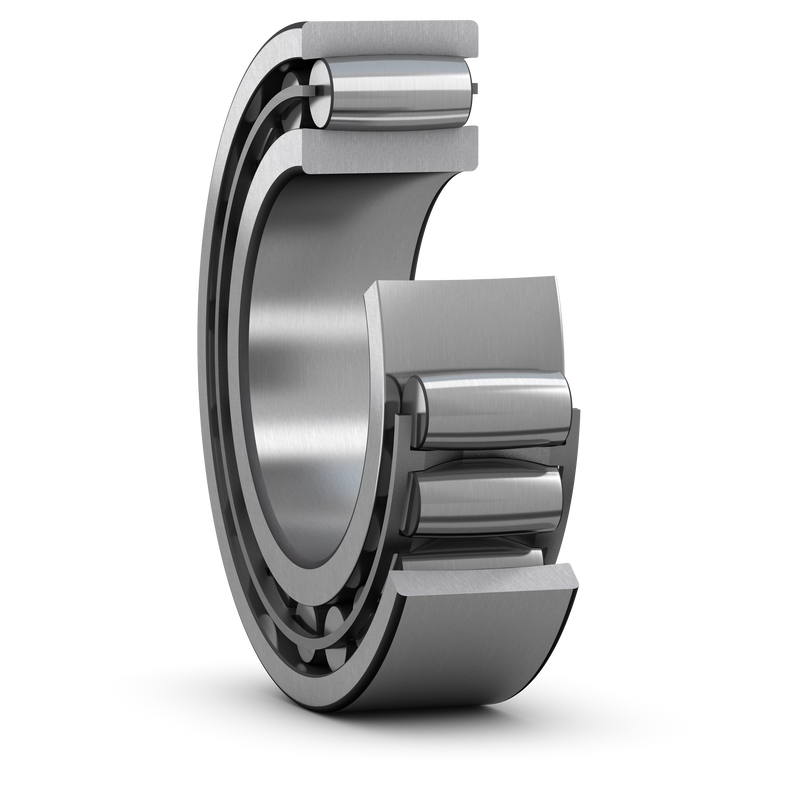

CARB toroidal roller bearings are unique: as well as accommodating misalignment without increased stress levels, they also provide frictionless axial movement within the bearing in the non-locating position in self-aligning bearing arrangements. Being SKF Explorer bearings, they can accommodate higher load levels and provide significantly extended service life.
| SKF performance class |
SKF Explorer
|
| Bore type |
Tapered 1:12
|
| d |
180 mm
|
Bore diameter |
|---|---|---|
| D |
280 mm
|
Outside diameter |
| B |
74 mm
|
Width |
| d2 |
≈ 209 mm
|
Shoulder diameter of inner ring |
| D1 |
≈ 251 mm
|
Shoulder or recess diameter of outer ring |
| s1 |
max. 15.1 mm
|
Permissible axial displacement |
| r1,2 |
min. 2.1 mm
|
Chamfer dimension |
| Da |
min. 239 mm
|
Diameter of housing abutment |
|---|---|---|
| Da |
max. 269 mm
|
Abutment diameter housing |
| Ca |
min. 2 mm
|
Minimum width of space required in housing |
| ra |
max. 2 mm
|
Radius of fillet |
|
||
| Basic dynamic load rating | C |
880 kN
|
|---|---|---|
| Basic static load rating | C0 |
1 340 kN
|
| Fatigue load limit | Pu |
122 kN
|
| Reference speed |
2 000 r/min
|
|
| Limiting speed |
2 600 r/min
|
|
| Misalignment factor | k1 |
0.112
|
| Internal clearance factor | k2 |
0.105
|
| Mass |
16.5 kg
|
