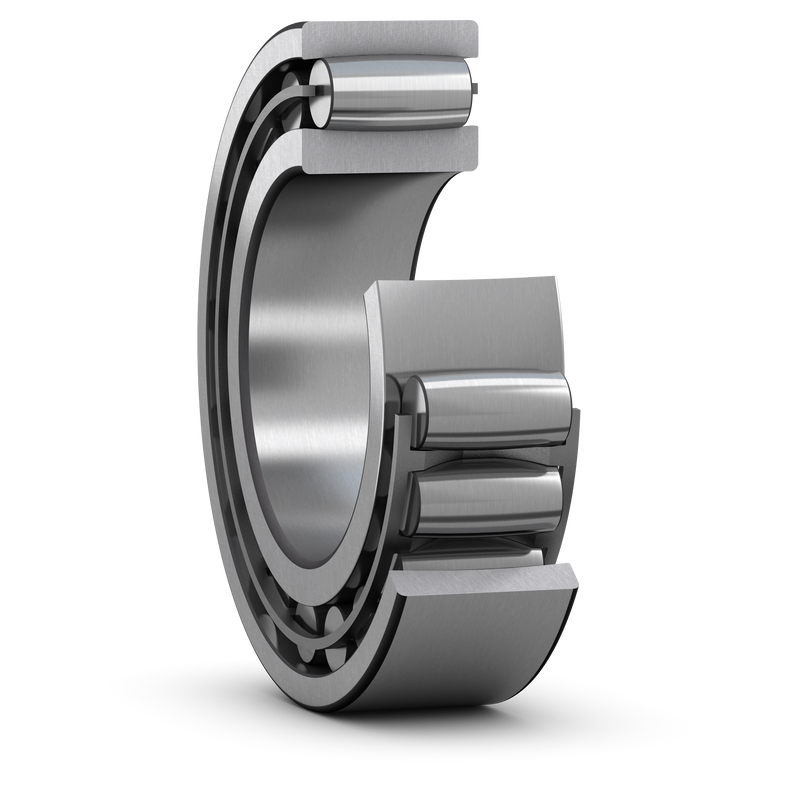

CARB toroidal roller bearings are unique: as well as accommodating misalignment without increased stress levels, they also provide frictionless axial movement within the bearing in the non-locating position in self-aligning bearing arrangements. Being SKF Explorer bearings, they can accommodate higher load levels and provide significantly extended service life.
| SKF performance class |
SKF Explorer
|
| Bore type |
Cylindrical
|
| d |
140 mm
|
Bore diameter |
|---|---|---|
| D |
250 mm
|
Outside diameter |
| B |
68 mm
|
Width |
| d2 |
≈ 173 mm
|
Shoulder diameter of inner ring |
| D1 |
≈ 223 mm
|
Shoulder or recess diameter of outer ring |
| s1 |
max. 13.7 mm
|
Permissible axial displacement |
| r1,2 |
min. 3 mm
|
Chamfer dimension |
| da |
min. 154 mm
|
Diameter of shaft abutment |
|---|---|---|
| da |
max. 191 mm
|
Diameter of shaft abutment |
| Da |
min. 207 mm
|
Diameter of housing abutment |
| Da |
max. 236 mm
|
Abutment diameter housing |
| Ca |
min. 2.3 mm
|
Minimum width of space required in housing |
| ra |
max. 2.5 mm
|
Radius of fillet |
|
||
| Basic dynamic load rating | C |
830 kN
|
|---|---|---|
| Basic static load rating | C0 |
1 060 kN
|
| Fatigue load limit | Pu |
102 kN
|
| Reference speed |
2 400 r/min
|
|
| Limiting speed |
3 200 r/min
|
|
| Misalignment factor | k1 |
0.109
|
| Internal clearance factor | k2 |
0.108
|
| Mass |
14 kg
|
