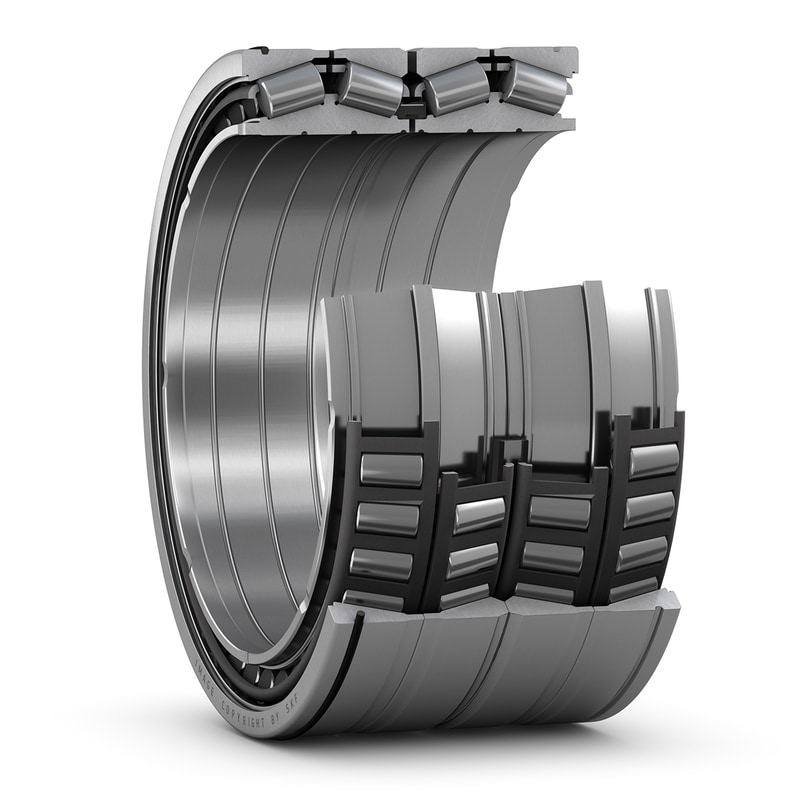

Four-row tapered roller bearings can accommodate combined heavy radial and axial loads at low to moderate speeds. They are used almost exclusively in work roll applications such as rolling mills. SKF manufactures four-row tapered roller bearings in TQO and TQI designs, in many variants and with different features.
| Design variant/feature |
TQO/WI
|
| Bore type |
Cylindrical
|
| d |
269.875 mm
|
Bore diameter |
|---|---|---|
| D |
381 mm
|
Outside diameter |
| B |
282.575 mm
|
Total bearing width over inner rings |
| T |
282.575 mm
|
Total bearing width over outer rings |
| d1 |
≈ 293 mm
|
Abutment diameter shaft |
| D1 |
≈ 339 mm
|
Abutment diameter housing |
| r1,2 |
min. 3.3 mm
|
Chamfer dimension inner ring |
| r3,4 |
min. 3.3 mm
|
Outer ring radius (chamfer) |
| Basic dynamic load rating | C |
3 080 kN
|
|---|---|---|
| Basic static load rating | C0 |
7 500 kN
|
| Fatigue load limit | Pu |
655 kN
|
| Comparative radial load rating | CF |
815 kN
|
| Comparative axial load rating | CFa |
132 kN
|
| Thrust factor | K |
1.76
|
| Limiting value | e |
0.33
|
| Calculation factor | Y1 |
2
|
| Calculation factor | Y2 |
3
|
| Calculation factor | Y0 |
2
|
| Mass bearing |
105 kg
|
