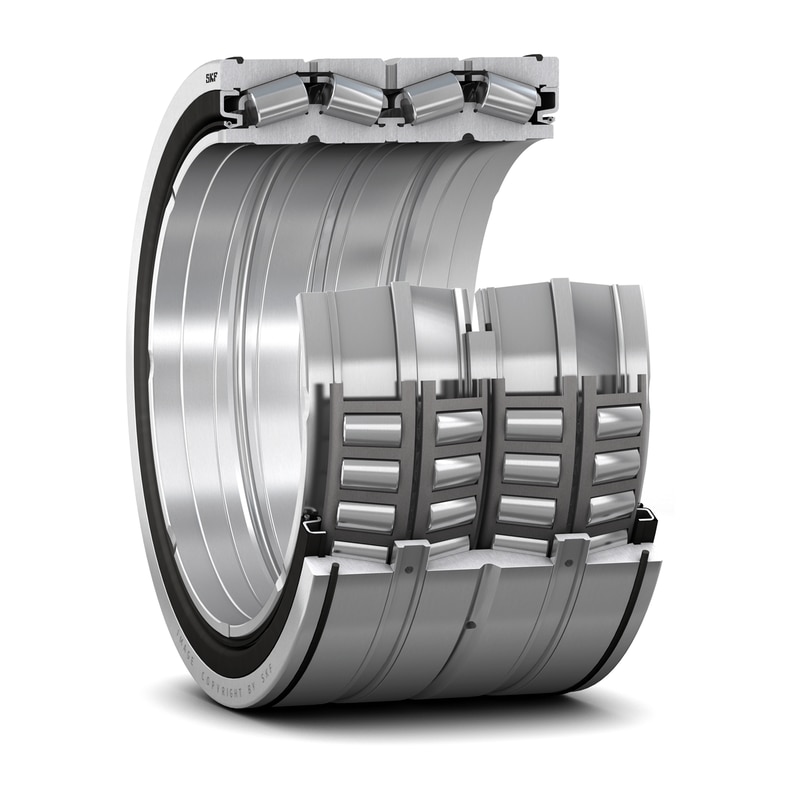

Four-row tapered roller bearings can accommodate combined heavy radial and axial loads at low to moderate speeds. They are used almost exclusively in work roll applications such as rolling mills. SKF manufactures four-row tapered roller bearings in TQO and TQI designs, in many variants and with different features.
| Design variant/feature |
TQOS/GWISI
|
| Bore type |
Cylindrical with helical groove
|
| d |
276.225 mm
|
Bore diameter |
|---|---|---|
| D |
393.7 mm
|
Outside diameter |
| B |
269.875 mm
|
Total bearing width over inner rings |
| T |
269.875 mm
|
Total bearing width over outer rings |
| d1 |
≈ 301 mm
|
Abutment diameter shaft |
| D1 |
≈ 354 mm
|
Abutment diameter housing |
| r1,2 |
min. 1 mm
|
Chamfer dimension inner ring |
| r3,4 |
min. 6.4 mm
|
Outer ring radius (chamfer) |
| Basic dynamic load rating | C |
2 750 kN
|
|---|---|---|
| Basic static load rating | C0 |
5 850 kN
|
| Fatigue load limit | Pu |
530 kN
|
| Comparative radial load rating | CF |
720 kN
|
| Comparative axial load rating | CFa |
134 kN
|
| Thrust factor | K |
1.55
|
| Limiting value | e |
0.37
|
| Calculation factor | Y1 |
1.8
|
| Calculation factor | Y2 |
2.7
|
| Calculation factor | Y0 |
1.8
|
| Mass bearing |
98.5 kg
|
