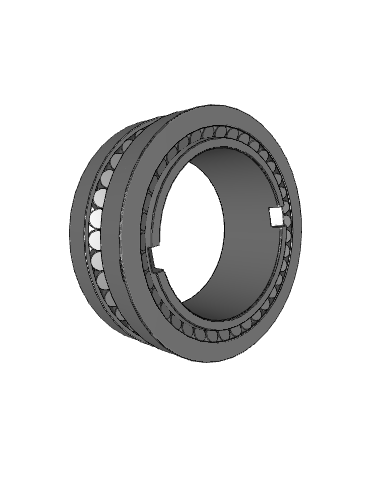

SKF double row tapered roller bearings are ready-to-mount units, manufactured with a predetermined axial clearance or preload. TDI design bearings have a double row inner ring and two outer rings that usually have an intermediate ring between them. Their roller sets are arranged face-to-face (X-arrangement). Design variants include features such as a helical groove in the bore, locating slots in the inner ring, or seals on both sides.
| Design variant/feature |
TDIS/NY
|
| Bore type |
Cylindrical
|
| d |
380 mm
|
Bore diameter |
|---|---|---|
| D |
560 mm
|
Outside diameter |
| T |
200 mm
|
Total width |
| B |
200 mm
|
Width of inner ring |
| d1 |
≈ 420 mm
|
Diameter of shaft abutment |
| D1 |
≈ 474 mm
|
Diameter of housing abutment |
| b |
51.3 mm
|
Inner ring locating slot width |
| h |
31.75 mm
|
Inner ring locating slot depth |
| r1,2 |
min. 5 mm
|
Chamfer dimension of inner ring |
| r3,4 |
min. 5 mm
|
Chamfer dimension of outer ring |
| Basic dynamic load rating | C |
2 991 kN
|
|---|---|---|
| Basic static load rating | C0 |
6 550 kN
|
| Fatigue load limit | Pu |
520 kN
|
| Limiting value | e |
0.79
|
| Calculation factor | Y1 |
0.85
|
| Calculation factor | Y2 |
1.25
|
| Calculation factor | Y0 |
0.8
|
| Comparative radial load rating | CF |
735 kN
|
| Comparative axial load rating | CFa |
582 kN
|
| Thrust factor | K |
0.73
|
| Mass |
165 kg
|
