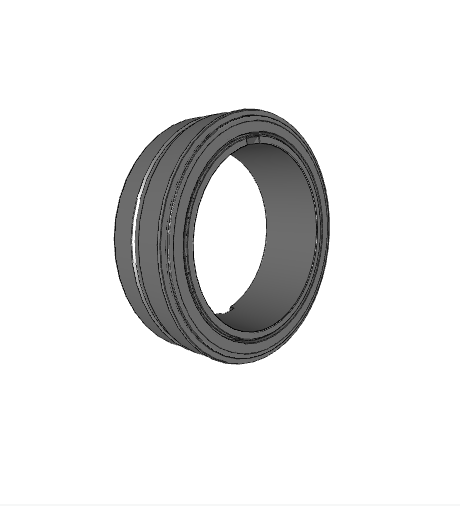

SKF double row tapered roller bearings are ready-to-mount units, manufactured with a predetermined axial clearance or preload. TDI design bearings have a double row inner ring and two outer rings that usually have an intermediate ring between them. Their roller sets are arranged face-to-face (X-arrangement). Design variants include features such as a helical groove in the bore, locating slots in the inner ring, or seals on both sides.
| Design variant/feature |
TDIS.2/N1V
|
| Bore type |
Cylindrical
|
| d |
406.4 mm
|
Bore diameter |
|---|---|---|
| D |
580 mm
|
Outside diameter |
| T |
164.275 mm
|
Total width |
| B |
164.275 mm
|
Width of inner ring |
| d1 |
≈ 434 mm
|
Diameter of shaft abutment |
| D1 |
≈ 498 mm
|
Diameter of housing abutment |
| b |
40.3 mm
|
Inner ring locating slot width |
| h |
15 mm
|
Inner ring locating slot depth |
| r1,2 |
min. 1.5 mm
|
Chamfer dimension of inner ring |
| r3,4 |
min. 5 mm
|
Chamfer dimension of outer ring |
| Basic dynamic load rating | C |
1 973 kN
|
|---|---|---|
| Basic static load rating | C0 |
4 250 kN
|
| Fatigue load limit | Pu |
345 kN
|
| Limiting value | e |
0.72
|
| Calculation factor | Y1 |
0.94
|
| Calculation factor | Y2 |
1.4
|
| Calculation factor | Y0 |
0.9
|
| Comparative radial load rating | CF |
480 kN
|
| Comparative axial load rating | CFa |
331 kN
|
| Thrust factor | K |
0.83
|
| Mass |
135 kg
|
