$15,680.00

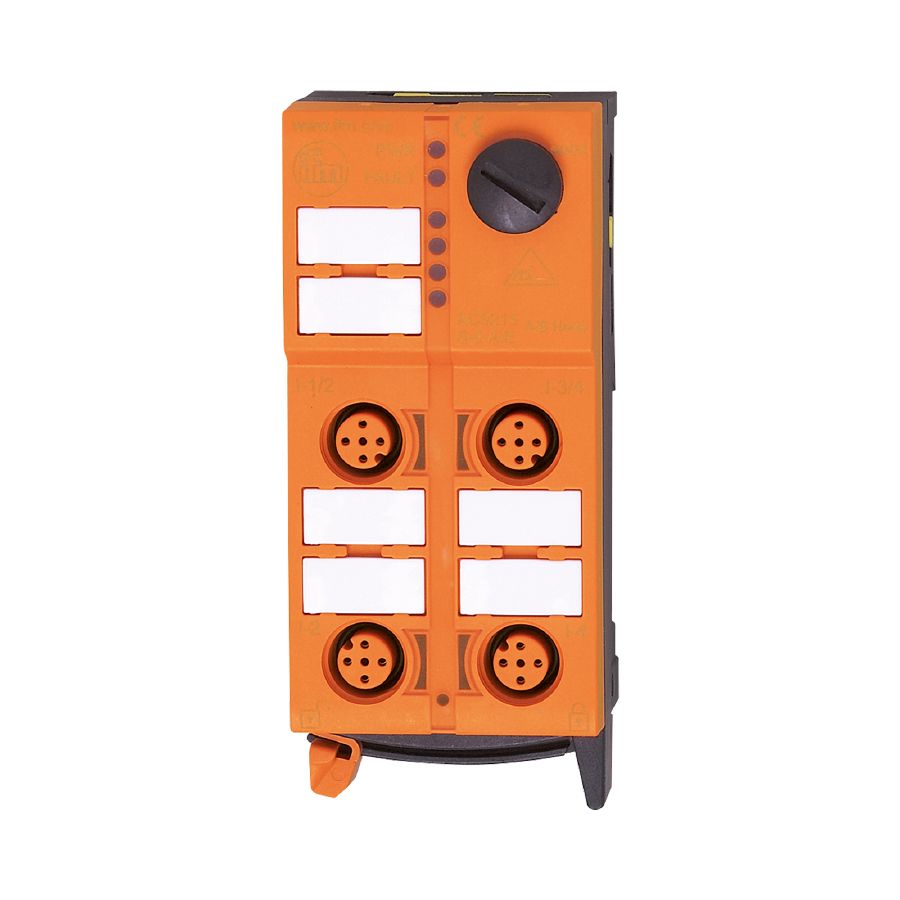

| Application | AS-i ATEX module |
|---|
| Operating voltage [V] | 26.5…31.6 DC |
|---|---|
| Max. current consumption from AS-i [mA] | 250 |
| Number of inputs and outputs | Number of digital inputs: 4 |
|---|
| Number of digital inputs | 4 |
|---|---|
| Input circuit of digital inputs | PNP |
| Sensor supply of the inputs | AS-i |
| Power supply [V] | 18…30; (via flat cable) |
| Max. total current rating of inputs [mA] | 200 |
| Input current High [mA] | 6…10 |
| Input current Low [mA] | 0…2 |
| Switching level high [V] | > 11 |
| Digital inputs protected against short circuits | yes |
| Ambient temperature [°C] | -10…50 |
|---|---|
| Protection | IP 50 |
| ATEX marking | |||||
|---|---|---|---|---|---|
| EMC |
|
||||
| MTTF [years] | 405 |
| AS-i version | 2.11; 3.0 | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AS-i addressing | addressing socket | ||||||||||||||||||||
| Extended addressing mode | yes | ||||||||||||||||||||
| AS-i profile | S-0.A.E | ||||||||||||||||||||
| AS-i I/O configuration [hex] | 0 | ||||||||||||||||||||
| AS-i ID code [hex] | A.E | ||||||||||||||||||||
| AS-i certificate pending | yes | ||||||||||||||||||||
| Assignment of the data bits |
|
| Weight [g] | 230.5 |
|---|---|
| Type of mounting | AS-i flat cables directly connectable |
| Materials | PA; piercing contacts: CuSn6 nickel-plated and tin-plated |
| Display |
|
|---|
| Module connection | Flat cables |
|---|
| Items supplied |
|
||
|---|---|---|---|
| Accessories (optional) |
|
| Remarks |
|
|||||
|---|---|---|---|---|---|---|
| Pack quantity | 1 pcs. |
| Connection | quick mounting technology for AS-i flat cable: ; three orientations possible |
|---|---|
| Connection | Connector: M12; coding: A |
