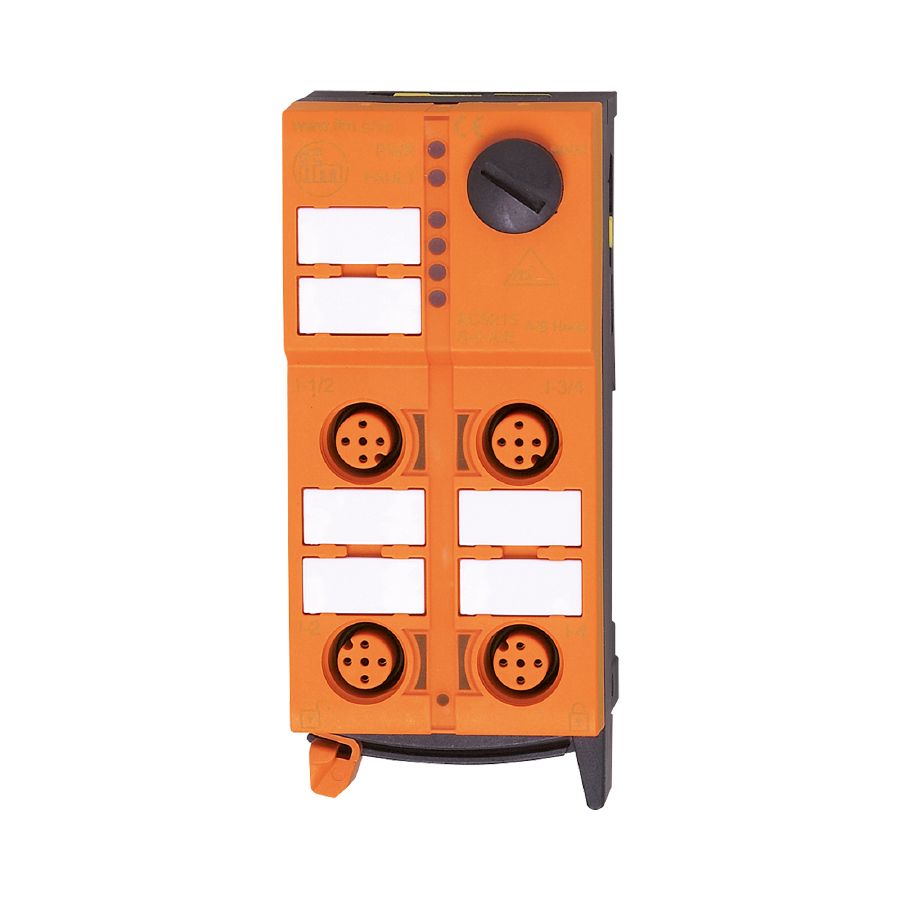

AC5202

AC5202

SKU: AC5202

$13,540.00

Application

Application	field installation

Electrical data

Operating voltage [V]	26.5…31.6 DC; (“supply class 2” to cULus)
Max. current consumption from AS-i [mA]	250
Max. current load total [A]	0.2
Integrated watchdog	yes

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 2; Number of digital outputs: 2

Inputs

Number of digital inputs	2
Input circuit of digital inputs	PNP
Sensor supply of the inputs	AS-i
Power supply [V]	18…30; (DC)
Max. total current rating of inputs [mA]	200; (current load for all inputs and outputs: 200 mA)
Input current High [mA]	6…10
Input current Low [mA]	0…2
Switching level high [V]	> 11
Digital inputs protected against short circuits	yes

Outputs

Number of digital outputs	2
Voltage range DC [V]	18…30
Max. current load per output [mA]	200; (current load for all inputs and outputs: 200 mA)
Short-circuit proof	yes
Electrically separated	no
Actuator supply outputs	AS-i

Operating conditions

Ambient temperature [°C]	-25…70
Protection	IP 67

Tests / approvals

EMC

EN 50295
IEC 61000-6-2

AS-i classification

AS-i version

2.11; 3.0

AS-i addressing

addressing socket

Extended addressing mode

yes

AS-i profile

S-B.A.E

AS-i I/O configuration [hex]

B

AS-i ID code [hex]

A.E

Assignment of the data bits

data bit	D0	D1	D2	D3
input	–	–	I-3	I-4
socket	–	–	I-3/O-1	I-4/O-2
pin	–	–	4	4
Output	O-1 ; O-1	O-2 ; O-2	–	–
socket	I-3/O-1 ; O-1	I-4/O-2 ; O-2	–	–
pin	2 ; 4	2 ; 4	–	–

Mechanical data

Weight [g]	156.4
Materials	PA; piercing contacts: CuSn6 nickel-plated and tin-plated

Displays / operating elements

Display

operation	LED, green
errors	LED, red
function	LED, yellow

Electrical connection

Module connection	Flat cables

Accessories

Items supplied

lower part

Accessories (optional)

Protective cap: M12, E73004

Remarks

Pack quantity	1 pcs.

Electrical connection

	quick mounting technology for AS-i flat cable: ; three orientations possible

Electrical connection – Inputs / outputs

Connection	Connector: M12

AC5202-01_EN-US

Datasheet
EN PDF
