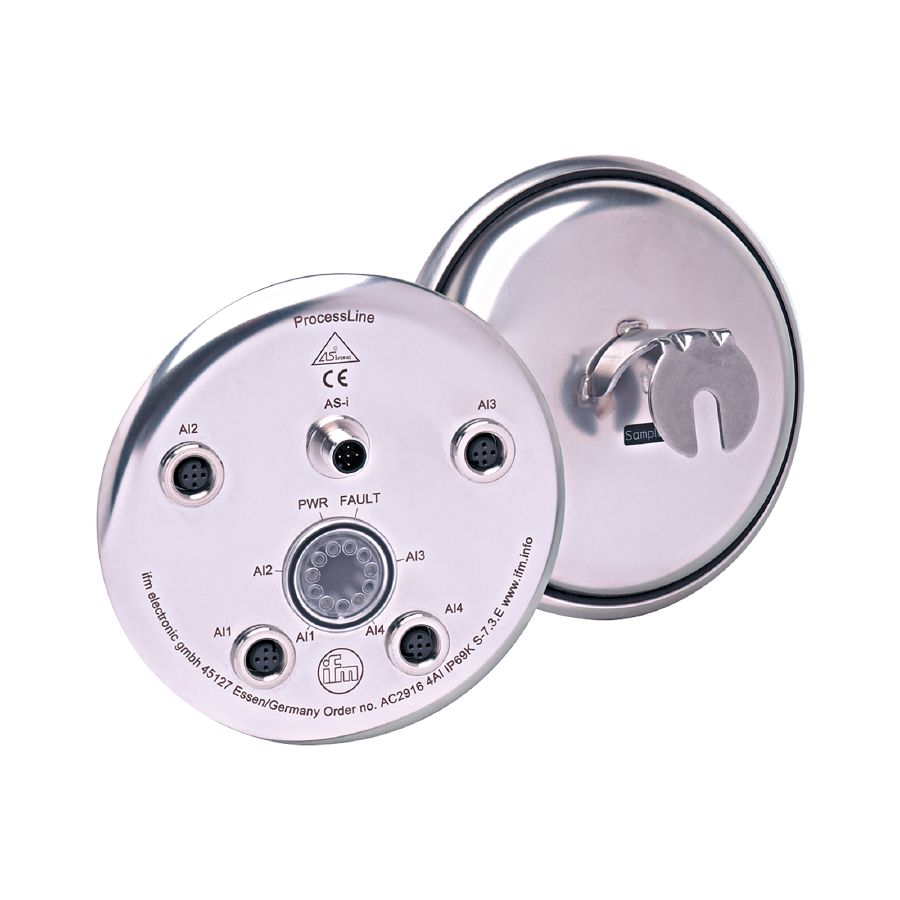

Application
| Application |
hygienic and wet areas in the food industry |
Electrical data
| Operating voltage [V] |
26.5…31.6 DC |
| Max. current consumption from AS-i [mA] |
450 |
| Reverse polarity protection |
yes |
Inputs / outputs
| Number of inputs and outputs |
Number of analogue inputs: 4 |
Inputs
| Sensor supply of the inputs |
AS-i |
| Number of analogue inputs |
4; (connection of 2- and 3-wire sensors) |
| Analogue input (current) [mA] |
4…20 |
| Max. voltage drop across load for nominal voltage [V] |
10 |
| Resolution of analogue input |
1 bit = 1 µA |
| Precision analogue input [%] |
0,5 |
Operating conditions
| Ambient temperature [°C] |
-5…70 |
| Storage temperature [°C] |
-25…85 |
| Max. relative air humidity [%] |
90; (non condensing) |
| Max. height above sea level [m] |
2000 |
| Protection |
IP 68; IP 69K |
AS-i classification
| AS-i version |
2.11; 3.0 |
| Extended addressing mode |
no |
| AS-i profile |
S-7.3.E |
| AS-i I/O configuration [hex] |
7 |
| AS-i ID code [hex] |
3.E |
| AS-i certificate |
101108 |
Mechanical data
| Weight [g] |
607 |
| Dimensions [mm] |
Ø 137.3 / L = 80 |
| Materials |
threaded bush: stainless steel (1.4404 / 316L); PC; O-ring: EPDM |
Displays / operating elements
| Display |
| analogue signal |
LED, yellow channels AI1…AI4 |
| operation |
LED, green AS-i |
| errors |
LED, red |
|
Accessories
| Accessories (optional) |
| Protective cap: M12, E70297 |
| Flat cable insulation displacement connector:, E70454 |
| Torque wrench:, E70390 |
| Flat cable insulation displacement connector:, E70453 |
|
Remarks
| Remarks |
| When the sensors and actuators are supplied from AS-i the load must not exceed a maximum of 380 mA. |
| The load for an individual sensor connection must not exceed 200 mA. |
| There is an electrical connection between the sensor and AS-i. |
| MEW = % of the final value of the measuring range |
|
| Pack quantity |
1 pcs. |
Electrical connection – AS-i
|
Connector: 1 x M12; coding: A; Tightening torque: 1.2…1.4 Nm |
Electrical connection – Process connection
|
Connector: 4 x M12; coding: A; Tightening torque: 1.2…1.4 Nm |
