$35,750.00

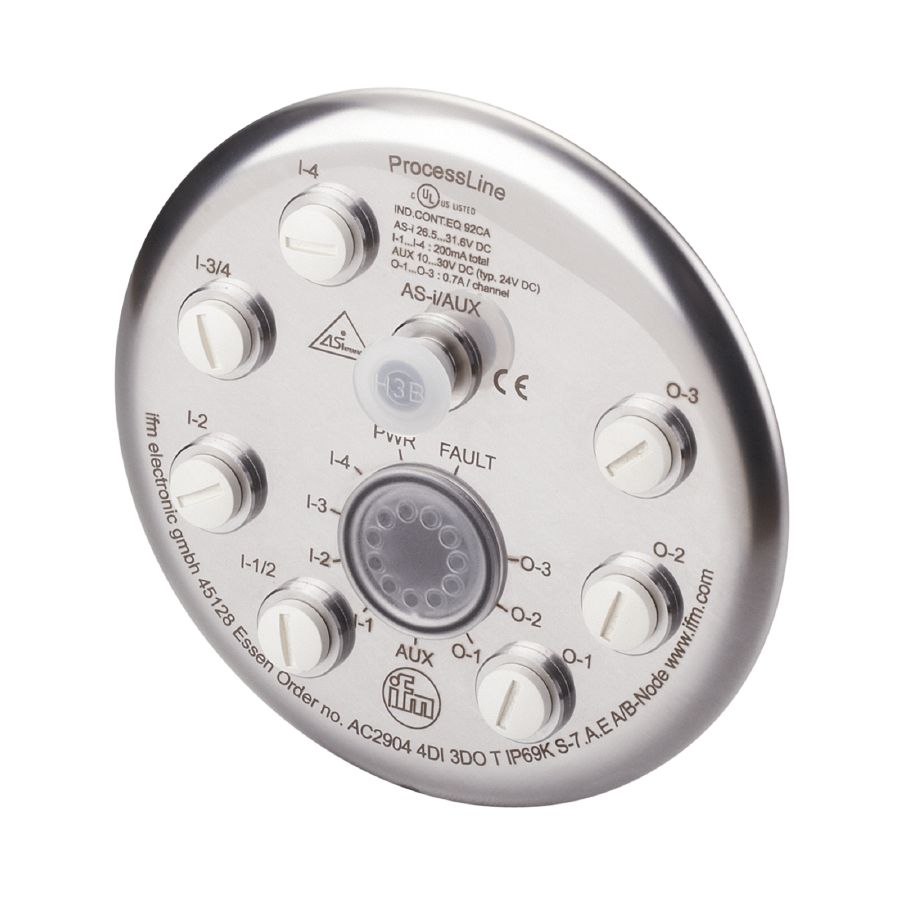

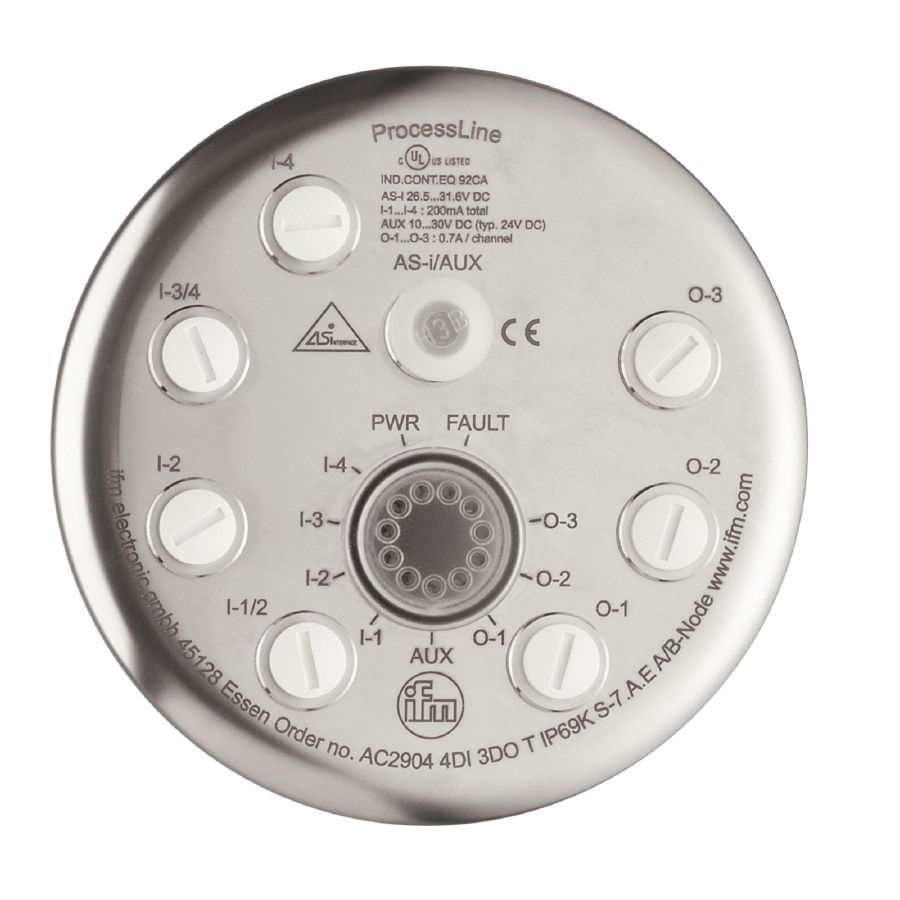

| Application | hygienic and wet areas in the food industry |
|---|
| Operating voltage [V] | 26.5…31.6 DC |
|---|---|
| Max. current consumption from AS-i [mA] | 240 |
| Additional voltage supply [V] | 20…30 DC; (AUX) |
| Max. current consumption from additional supply [mA] | 2100; (AUX) |
| Integrated watchdog | yes |
| Number of inputs and outputs | Number of digital inputs: 4; Number of digital outputs: 3 |
|---|
| Number of digital inputs | 4 |
|---|---|
| Input circuit of digital inputs | PNP; (type 2 according to IEC 61131-2) |
| Sensor supply of the inputs | AS-i |
| Power supply [V] | 18…30 |
| Max. total current rating of inputs [mA] | 200 |
| Input current High [mA] | 6…10 |
| Input current Low [mA] | 0…2 |
| Switching level high [V] | > 11 |
| Digital inputs protected against short circuits | yes |
| Number of digital outputs | 3 |
|---|---|
| Circuit | PNP |
| Voltage range DC [V] | 20…30; (AUX) |
| Max. current load per output [mA] | 700; (utilisation category DC-13 (control of electromagnets): 20 W (IEC 60947-5-1)) |
| Max. current load outputs total [A] | 2.1 |
| Short-circuit proof | yes |
| Electrically separated | yes |
| Ambient temperature [°C] | -5…70 |
|---|---|
| Protection | IP 68; IP 69K |
| EMC |
|
||||
|---|---|---|---|---|---|
| MTTF [years] | 160 |
| AS-i version | 2.1 | |||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Extended addressing mode | yes | |||||||||||||||||||||||||||||||||||
| AS-i profile | S-7.A.E | |||||||||||||||||||||||||||||||||||
| AS-i I/O configuration [hex] | 7 | |||||||||||||||||||||||||||||||||||
| AS-i ID code [hex] | A.E | |||||||||||||||||||||||||||||||||||
| AS-i certificate | 101107 | |||||||||||||||||||||||||||||||||||
| Assignment of the data bits |
|

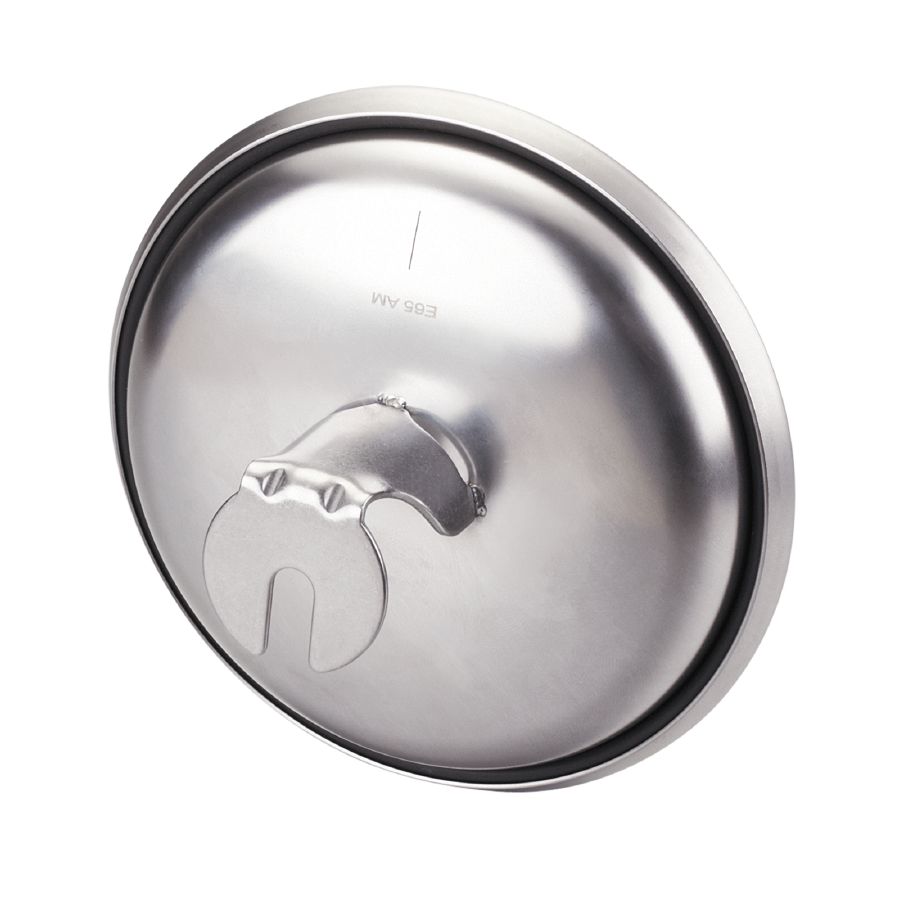

| Weight [g] | 632 |
|---|---|
| Dimensions [mm] | Ø 137.3 / L = 80 |
| Materials | threaded bush: stainless steel (1.4404 / 316L); PC; O-ring: EPDM |
| Display |
|
|---|
| Module connection | M12 |
|---|
| Accessories (optional) |
|
|---|
| Remarks |
|
|||||
|---|---|---|---|---|---|---|
| Pack quantity | 1 pcs. |
| Connector: M12; coding: A; Tightening torque: 1.2…1.4 Nm |
| Connection | Connector: M12; coding: A; Tightening torque: 1.2…1.4 Nm |
|---|
| Connector: M12; coding: A; Tightening torque: 1.2…1.4 Nm |
