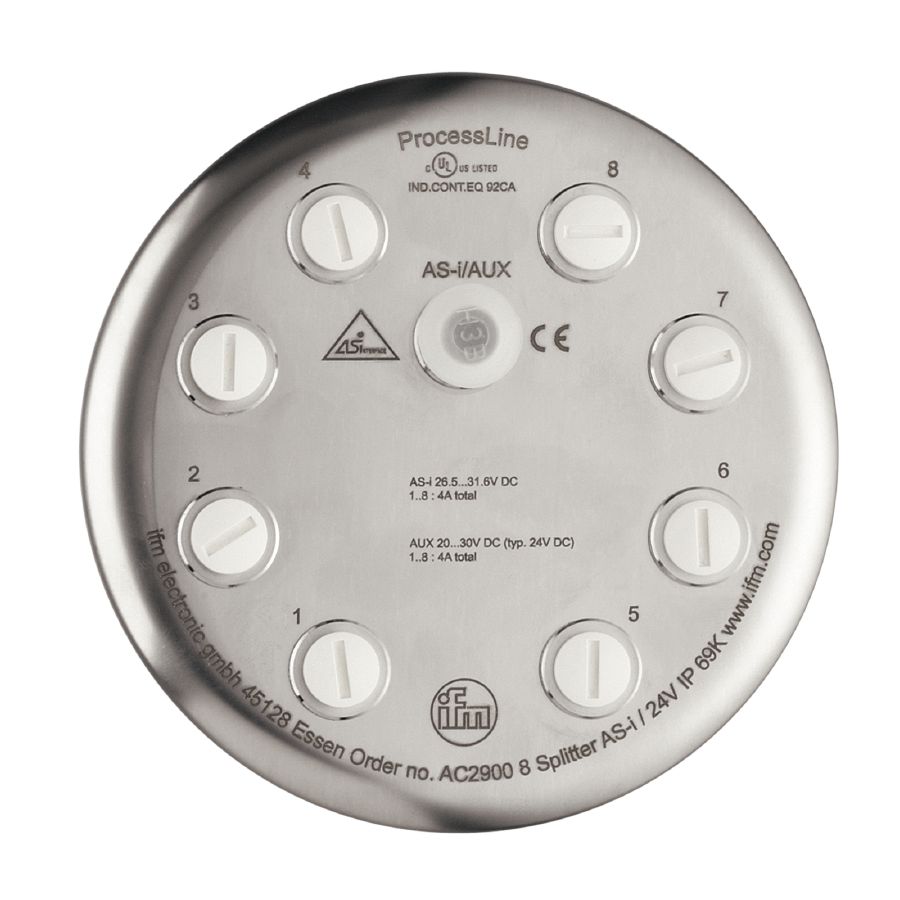

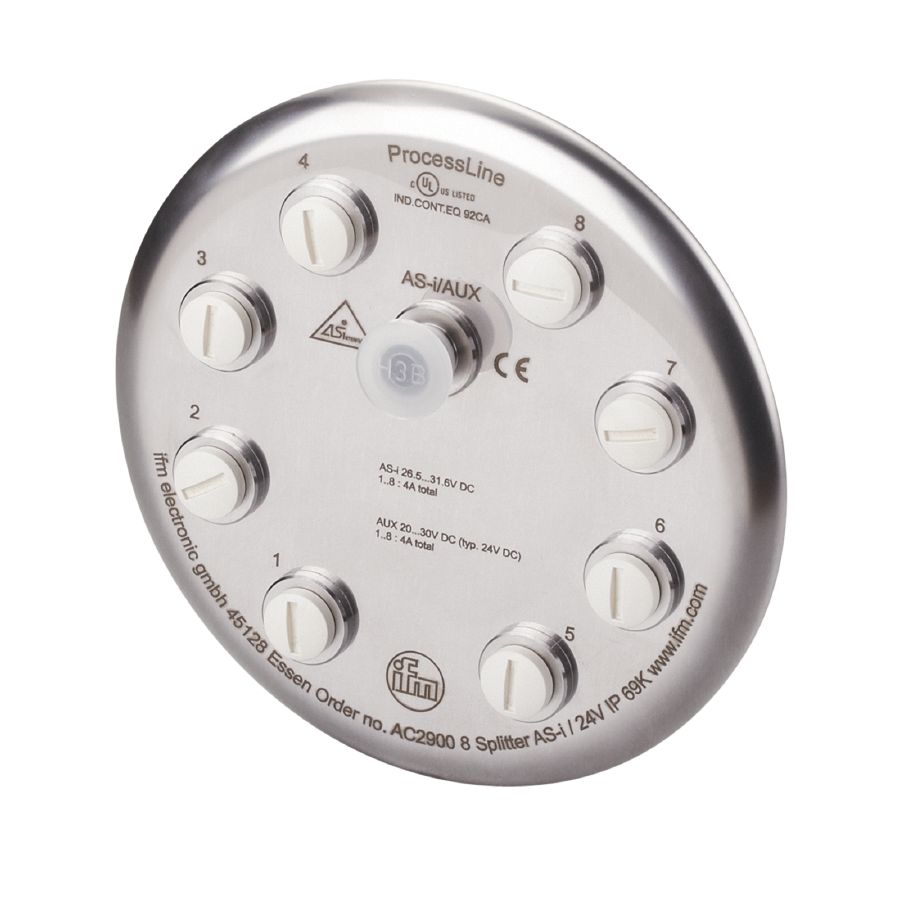

AC2900

Specially for the use in wet areas of the food and beverage industry
Hygienic design without corners and edges
Resistant to high-pressure cleaning with aggressive cleaning agents
AS-i and 24 V supply via a common M12 connector

SKU: AC2900

$17,650.00

Application

Application	hygienic and wet areas in the food industry

Electrical data

Operating voltage [V]	26.5…31.6 DC
Max. current load per module/slot [A]	4; (AS-i: 4 A; AUX: 4 A)
Additional voltage supply [V]	20…30 DC; (AUX)

Operating conditions

Ambient temperature [°C]	-5…70
Storage temperature [°C]	-5…70
Max. relative air humidity [%]	90; (non condensing)
Max. height above sea level [m]	2000
Protection	IP 68; IP 69K
Pollution degree	2

Tests / approvals

EMC

EN 62026-2
EN 61000-6-2

Mechanical data

Weight [g]	613.5
Dimensions [mm]	Ø 137.3 / L = 80
Materials	housing: stainless steel; O-ring: EPDM; Protective caps: PP
Sealing material	EPDM

Electrical connection

Module connection	M12

Accessories

Items supplied

Protective cap: M12, E70297

Accessories (optional)

Torque wrench:, E70390

Remarks

Pack quantity	1 pcs.

Electrical connection – plug

	Connector: 1 x M12; coding: A; Sealing: EPDM; Tightening torque: 1.2…1.4 Nm

Electrical connection – socket

	Connector: 8 x M12; coding: A; Sealing: EPDM; Tightening torque: 1.2…1.4 Nm

AC2900-01_EN-US

Datasheet
EN PDF
