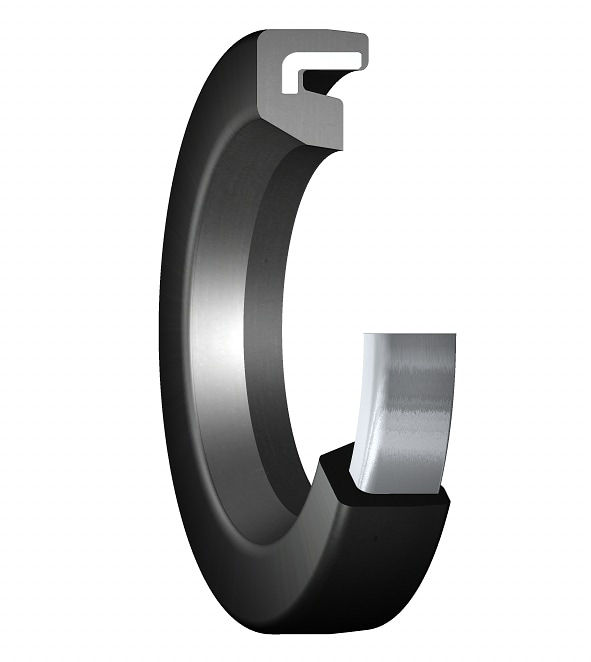

9X13X3 HM4 RRadial shaft seal with metal case and single sealing lip, for grease
Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. HM4 seals are designed with a single metal case. They have a conventional single sealing lip made of elastomer. Typical applications include grease lubricated agriculture machinery.
| Type of outside diameter |
Metal-cased
|
| Lip material |
Nitrile rubber (NBR)
|
| Seal design |
HM4
|
Dimensions
| d1 |
9 mm
|
Shaft diameter |
|---|---|---|
| D |
13 mm
|
Housing bore diameter |
| b |
3 mm
|
Seal width |
Application and operating conditions
| Operating temperature |
min. -40 °C
|
| Operating temperature |
max. 100 °C
|
| Circumferential speed |
max. 0.89 m/s
|
| Rotational speed |
max. 1 860 r/min
|
| Pressure differential |
0.07 N/mm²
|
