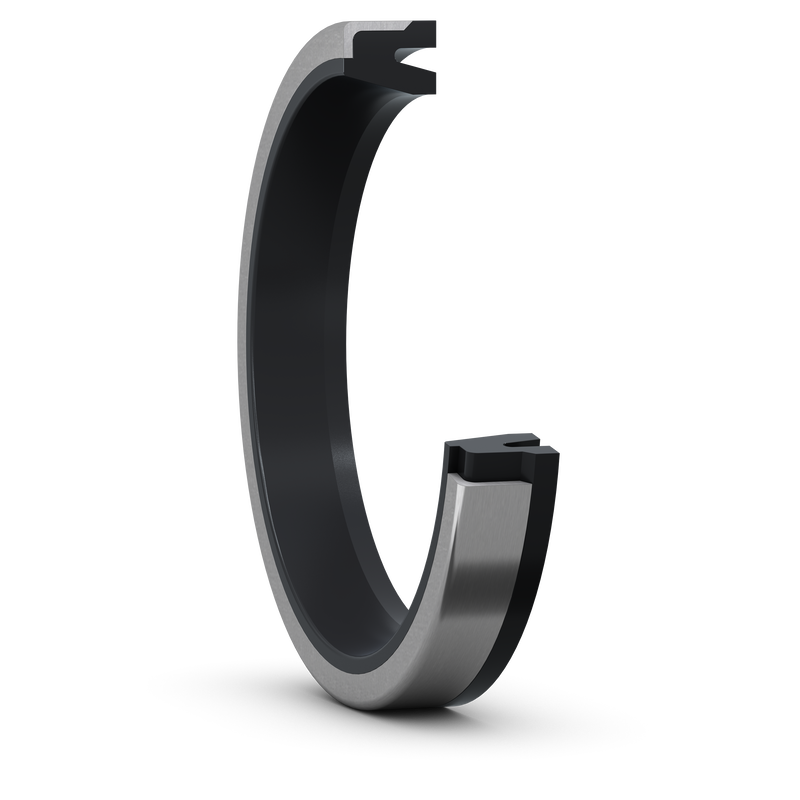

1850Radial shaft seal with metal case and single sealing lip, for grease
Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. HM1 seals are designed with a sealant coated metal case. They have a conventional single sealing lip made of elastomer. Typical applications include grease lubricated agriculture machinery.
| Type of outside diameter |
Metal-cased
|
| Lip material |
Nitrile rubber (NBR)
|
| Seal design |
HM1
|
Dimensions
| d1 |
4.775 mm
|
Shaft diameter |
|---|---|---|
| D |
12.7 mm
|
Housing bore diameter |
| b |
3.175 mm
|
Seal width |
Application and operating conditions
| Operating temperature |
min. -40 °C
|
| Operating temperature |
max. 100 °C
|
| Circumferential speed |
max. 0.38 m/s
|
| Rotational speed |
max. 1 500 r/min
|
| Pressure differential |
0.07 N/mm²
|
