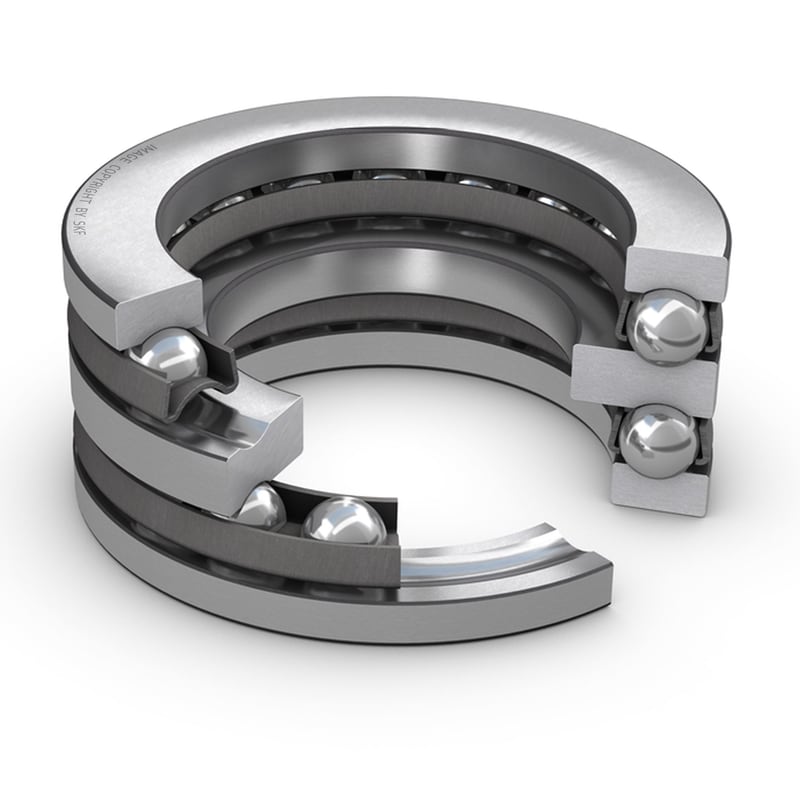

Double direction thrust ball bearings can accommodate axial loads in both directions, but they must not be subjected to any radial load. Their separable components facilitate mounting/dismounting and maintenance inspections, and many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit.
| d |
130 mm
|
Bore diameter |
|---|---|---|
| D |
215 mm
|
Outside diameter |
| H |
89 mm
|
Height |
| D1 |
≈ 153 mm
|
Inner diameter housing washer |
| B |
20 mm
|
Height shaft washer |
| r1,2 |
min. 1.5 mm
|
Chamfer dimension housing washer |
| r3,4 |
min. 1.1 mm
|
Chamfer dimension shaft washer |
| da |
150 mm
|
Abutment diameter shaft |
|---|---|---|
| Da |
max. 176 mm
|
Abutment diameter housing |
| ra |
max. 1.5 mm
|
Fillet radius housing |
| rb |
max. 1 mm
|
Fillet radius shaft |
| Basic dynamic load rating | C |
247 kN
|
|---|---|---|
| Basic static load rating | C0 |
800 kN
|
| Fatigue load limit | Pu |
21.6 kN
|
| Reference speed |
950 r/min
|
|
| Limiting speed |
1 300 r/min
|
|
| Minimum load factor | A |
3.3
|
| Mass bearing (including seat washer where applicable) |
11.5 kg
|
