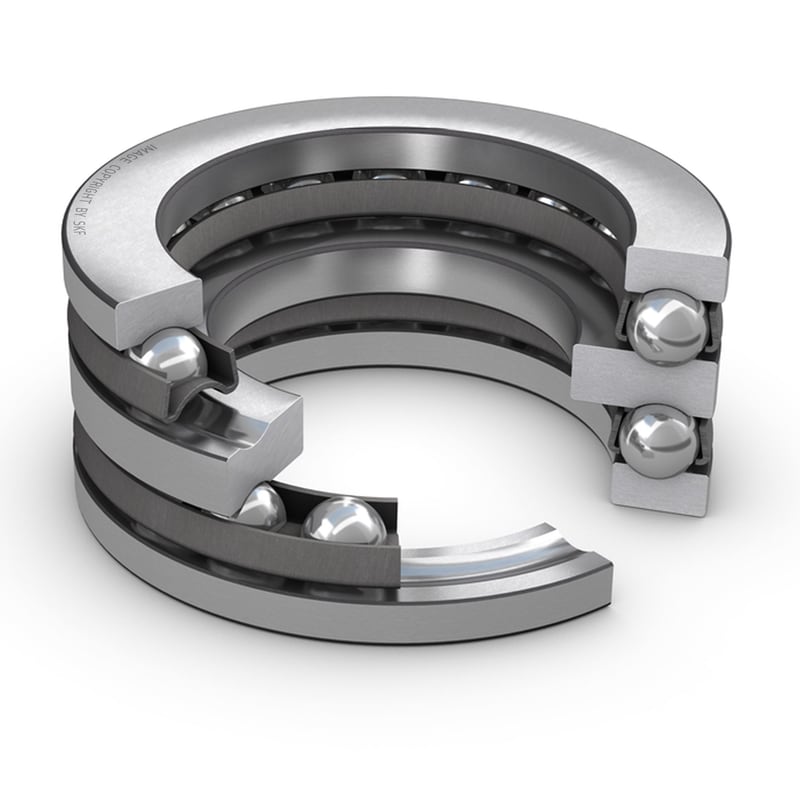

Double direction thrust ball bearings can accommodate axial loads in both directions, but they must not be subjected to any radial load. Their separable components facilitate mounting/dismounting and maintenance inspections, and many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit.
| d |
15 mm
|
Bore diameter |
|---|---|---|
| D |
40 mm
|
Outside diameter |
| H |
26 mm
|
Height |
| D1 |
≈ 22 mm
|
Inner diameter housing washer |
| B |
6 mm
|
Height shaft washer |
| r1,2 |
min. 0.6 mm
|
Chamfer dimension housing washer |
| r3,4 |
min. 0.3 mm
|
Chamfer dimension shaft washer |
| da |
20 mm
|
Abutment diameter shaft |
|---|---|---|
| Da |
max. 28 mm
|
Abutment diameter housing |
| ra |
max. 0.6 mm
|
Fillet radius housing |
| rb |
max. 0.3 mm
|
Fillet radius shaft |
| Basic dynamic load rating | C |
21.2 kN
|
|---|---|---|
| Basic static load rating | C0 |
37.5 kN
|
| Fatigue load limit | Pu |
1.4 kN
|
| Reference speed |
4 300 r/min
|
|
| Limiting speed |
6 000 r/min
|
|
| Minimum load factor | A |
0.0085
|
| Mass bearing (including seat washer where applicable) |
0.15 kg
|
