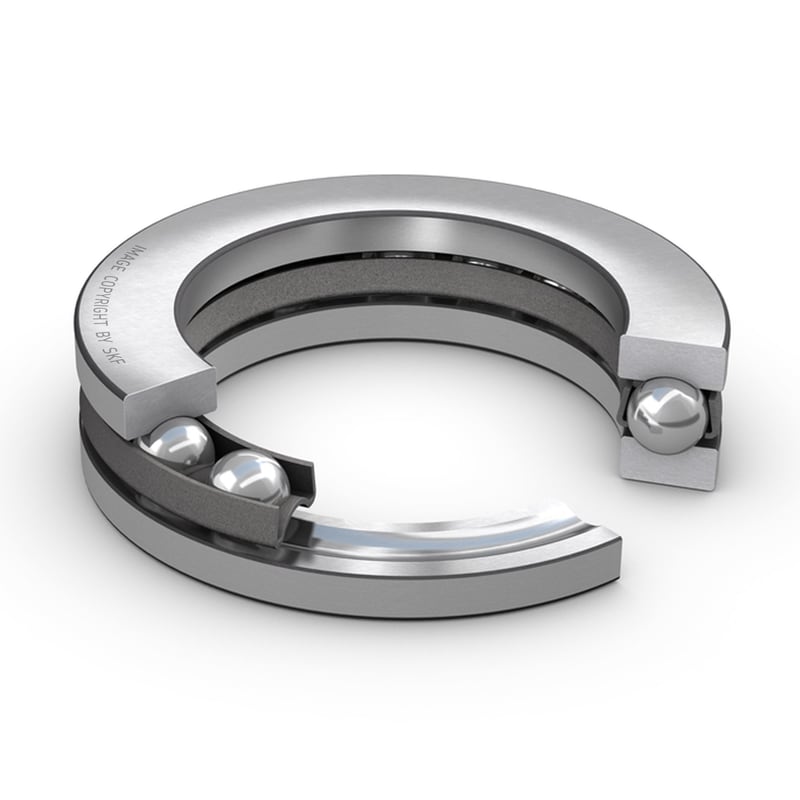

Single direction thrust ball bearings can accommodate axial loads in one direction. They must not be subjected to any radial load. Their separable components facilitate mounting/dismounting and maintenance inspections. Many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit.
| d |
70 mm
|
Bore diameter |
|---|---|---|
| D |
125 mm
|
Outside diameter |
| H |
40 mm
|
Height |
| d1 |
≈ 125 mm
|
Outside diameter shaft washer |
| D1 |
≈ 72 mm
|
Inner diameter housing washer |
| r1,2 |
min. 1.1 mm
|
Chamfer dimension washer |
| da |
min. 103 mm
|
Abutment diameter shaft |
|---|---|---|
| Da |
max. 92 mm
|
Abutment diameter housing |
| ra |
max. 1 mm
|
Fillet radius |
| Basic dynamic load rating | C |
135 kN
|
|---|---|---|
| Basic static load rating | C0 |
320 kN
|
| Fatigue load limit | Pu |
11.8 kN
|
| Reference speed |
1 900 r/min
|
|
| Limiting speed |
2 600 r/min
|
|
| Minimum load factor | A |
0.53
|
| Mass bearing (including seat washer where applicable) |
2 kg
|
