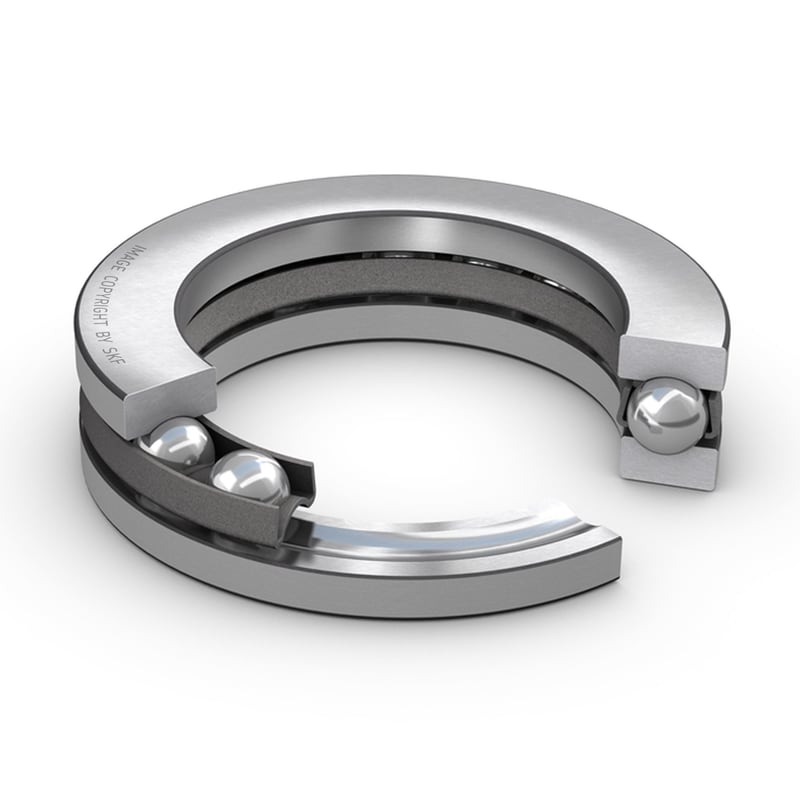

Single direction thrust ball bearings can accommodate axial loads in one direction. They must not be subjected to any radial load. Their separable components facilitate mounting/dismounting and maintenance inspections. Many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit.
| d |
8 mm
|
Bore diameter |
|---|---|---|
| D |
19 mm
|
Outside diameter |
| H |
7 mm
|
Height |
| d1 |
≈ 18.8 mm
|
Outside diameter shaft washer |
| D1 |
≈ 8.2 mm
|
Inner diameter housing washer |
| r1,2 |
min. 0.3 mm
|
Chamfer dimension washer |
| da |
min. 14.5 mm
|
Abutment diameter shaft |
|---|---|---|
| Da |
max. 12.5 mm
|
Abutment diameter housing |
| ra |
max. 0.3 mm
|
Fillet radius |
| Basic dynamic load rating | C |
3.19 kN
|
|---|---|---|
| Basic static load rating | C0 |
3.8 kN
|
| Fatigue load limit | Pu |
0.143 kN
|
| Reference speed |
12 000 r/min
|
|
| Limiting speed |
17 000 r/min
|
|
| Minimum load factor | A |
0.000075
|
| Mass bearing (including seat washer where applicable) |
0.0091 kg
|
