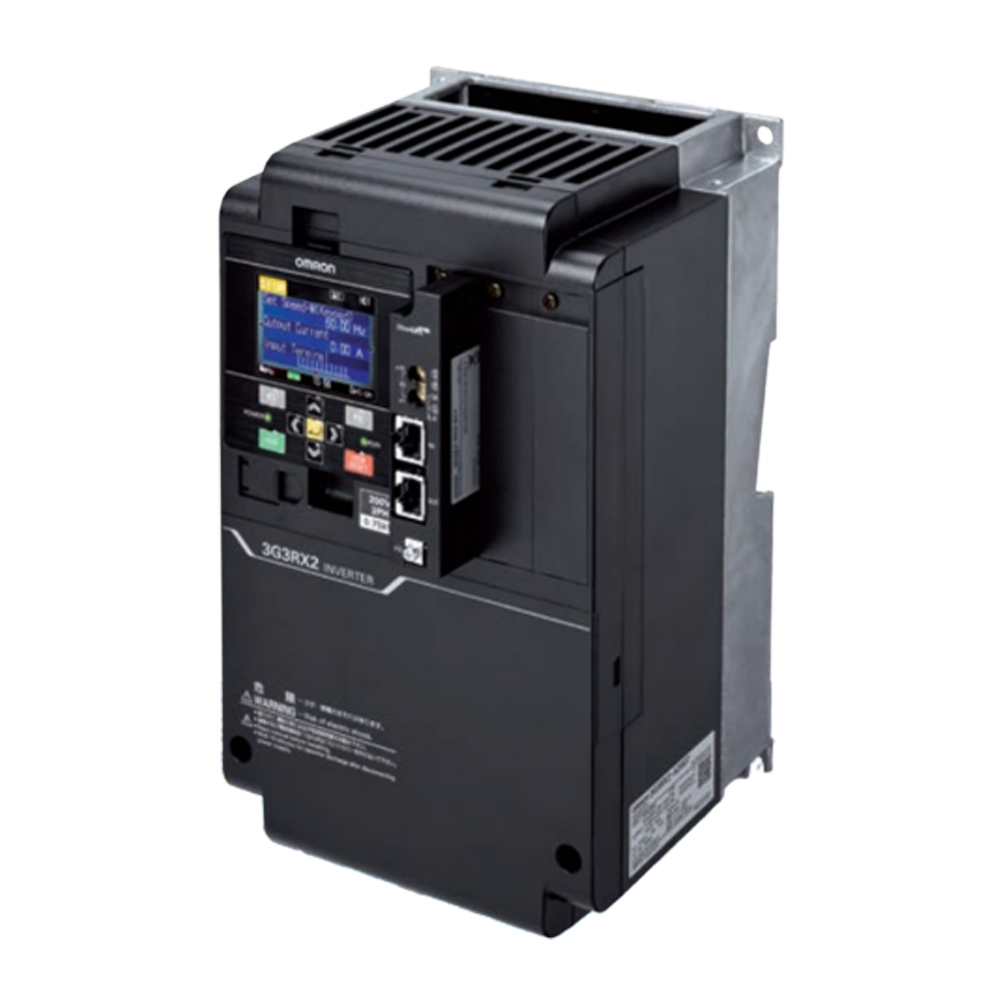

Inverter RX2, 400 V, VLD: 47 A / 22 kW, LD: 43 A / 22 kW, ND: 39 A / 18,5 kW, open/closed loop vector, built-in filter, max. output freq. 590Hz, IP20.
| Drive control method | Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector |
| Drive supply voltage | 400 V three phase |
| Max. motor output at constant torque (HD) | 18.5 kW |
| Max. motor output at variable torque (ND) | 22 kW |
| Built in EMC filter | ✔️ |
| Finless type | ❌ |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor |
| Regenerative solutions | As inverter option |
| Communication port(s) | Serial RS-485, USB |
| Communication option(s) | MODBUS/TCP, PROFIBUS DP Slave, PROFINET Slave |
| Product Height (unpacked) | 390 mm |
| Product Width (unpacked) | 245 mm |
| Product Depth (unpacked) | 190 mm |
| Product Weight (unpacked) | 8500 g |
| Degree of protection (IP) | IP20 |
 |
AX-FER5045-PE | Ferrite choke, 50mm diameter, for 45kW inverters and below |
|
|
|
AX-FIR4058-SE | RX2 foot print RFI filter, 58 A, 3~ 400 VAC, for 15-22 kW models |
|
 |
AX-RAI00360500-DE | AC input reactor, 50 A, 0.36 mH, for 18.5 to 22 kW sizes, 400 VAC, 3 phase |
|
 |
AX-RAO01650400-DE | AC output reactor, 40 A, 1.65 mH, for 18.5 kW , 400 VAC, 3 phase |
|
 |
AX-RC01200644-DE | DC link reactor, 64.4 A, 1.2 mH, for 18.5 to 22 kW, 400 VAC |
|
