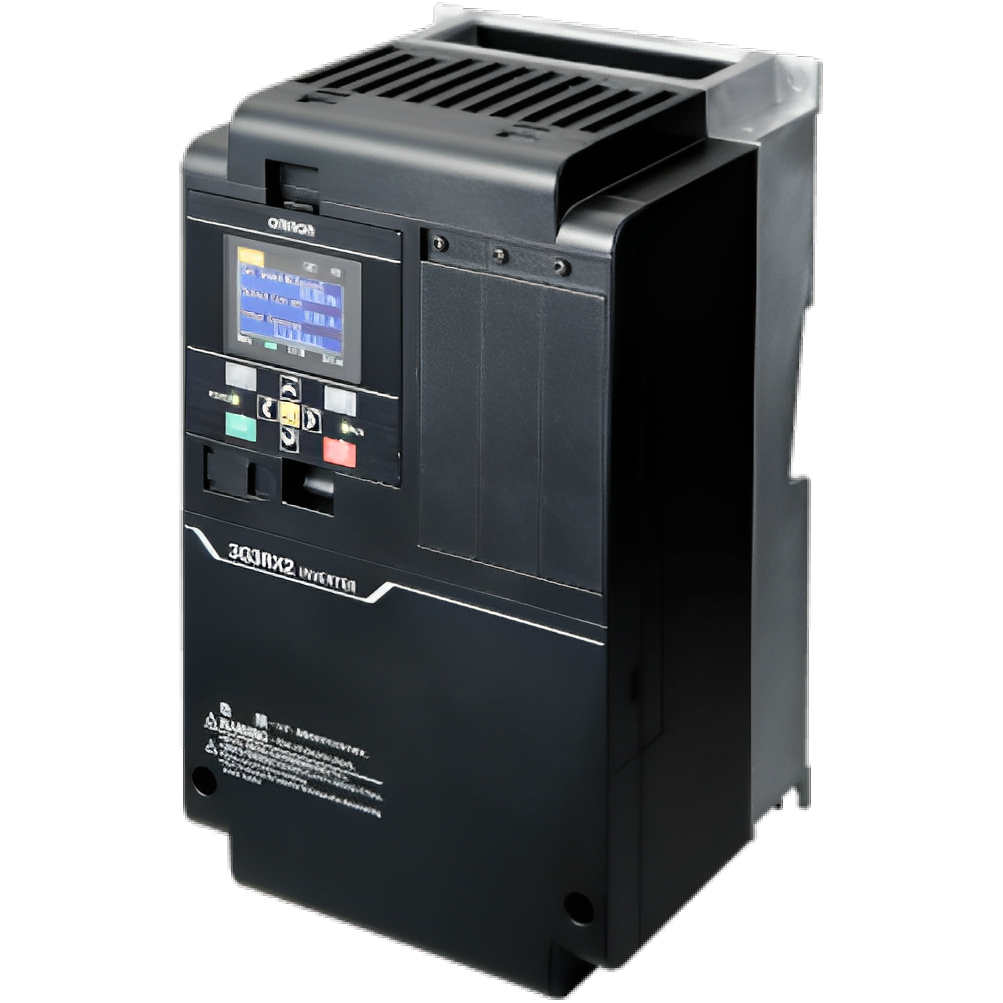

Inverter RX2, 400 V, VLD: 12,6 A / 5,5 kW, LD: 11,1 A / 5,5 kW, ND: 9,2 A / 3,7 kW, open/closed loop vector, built-in filter, max. output freq. 590Hz, IP20.
| Drive control method | Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector |
| Drive supply voltage | 400 V three phase |
| Max. motor output at constant torque (HD) | 3.7 kW |
| Max. motor output at variable torque (ND) | 5.5 kW |
| Built in EMC filter | ✔️ |
| Finless type | ❌ |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor |
| Regenerative solutions | As inverter option |
| Communication port(s) | Serial RS-485, USB |
| Communication option(s) | MODBUS/TCP, PROFIBUS DP Slave, PROFINET Slave |
| Product Height (unpacked) | 255 mm |
| Product Width (unpacked) | 150 mm |
| Product Depth (unpacked) | 140 mm |
| Product Weight (unpacked) | 3000 g |
| Degree of protection (IP) | IP20 |
 |
AX-FER2815-PE | Ferrite choke, 28mm diameter, for 15kW inverters and below |
|
 |
AX-FIR4011-SE | RX2 footprint RFI filter, 11 A, 3~ 400 VAC, for 0.75-3.7 kW models |
|
 |
AX-RAO07300080-DE | AC output reactor, 8 A, 7.3 mH, for 3.0 and 4.0 kW , 400 VAC, 3 phase |
|
 |
AX-RC06400116-DE | DC link reactor, 11.6 A, 6.4 mH, for 4 kW, 400 VAC |
|
