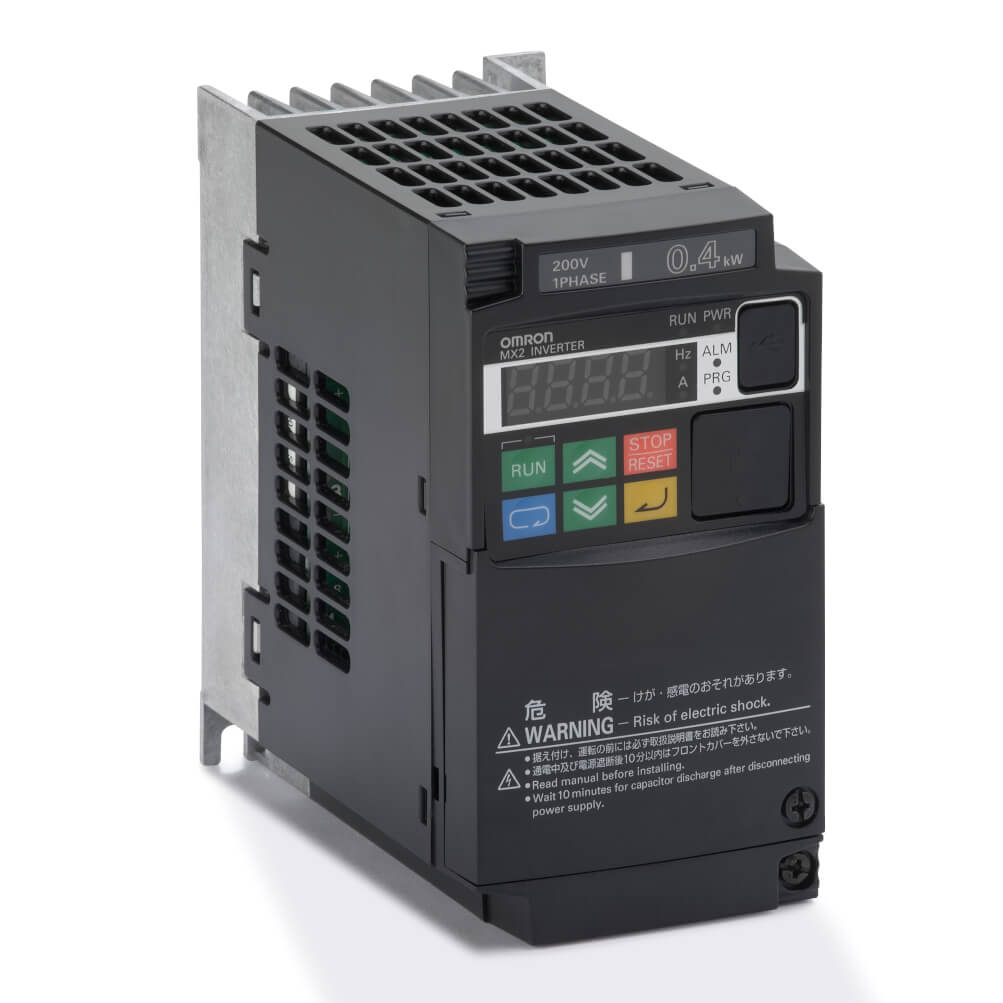

MX inverter drive, 0.4/0.55 kW (HD/ND), 3.0/3.5 A (HD/ND), 200 VAC, 1~ input, sensorless vector, max. output freq. 580Hz
| Drive control method | Open loop V/f, Open loop vector |
| Drive supply voltage | 230 V single phase |
| Max. motor output at constant torque (HD) | 0.4 kW |
| Max. motor output at variable torque (ND) | 0.55 kW |
| Built in EMC filter | ❌ |
| Degree of protection (IP) | IP20 |
| Finless type | ❌ |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor |
| Regenerative solutions | As inverter option |
| Communication port(s) | MODBUS Slave, Serial RS-485, USB |
| Communication option(s) | CompoNet Slave, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, PROFIBUS DP Slave |
 |
3G3AX-MX2-DRT-E | DeviceNet option card for MX2 inverter |
|
 |
3G3AX-MX2-ECT | MX2 EtherCAT option card |
|
 |
3G3AX-MX2-EIP-A | MX2 Ethernet/IP option card |
|
 |
3G3AX-MX2-PRT-E | MX2 option card, PROFIBUS DP |
|
 |
3G3AX-OP01 | LED remote operator panel, cable length max. 3m |
|
 |
3G3AX-OP05 | 5 line LCD digital operator with copy function |
|
| AX-FER2102-PE | Ferrite choke, 21mm diameter, for 2.2kW inverters and below |
|
|
 |
AX-FIC1010-SE | Common footprint RFI filter for Compact series (Q2V/V1000/J1000/MX2), 10 A, 200 VAC, single phase, for 0.12 to 0.55 kW drives. |
|
| AX-FIC1010-SE-LL | Low Leakage common footprint RFI filter for Compact series (Q2V/V1000/J1000/MX2), 10 A, 200 VAC, single phase, for 0.12 to 0.55 kW drives. |
|
|
| AX-RAI02000070-DE | AC input reactor, 7 A, 2.0 mH, for 0.4 kW sizes, 200 VAC, 1 phase |
|
|
| AX-RAO11500026-DE | AC output reactor, 2.6 A, 11.5 mH, for 0.1, 0.2 and 0.4 kW, 200 VAC, 1/3 phase |
|
|
| AX-RC06750061-DE | DC link reactor, 6.1 A, 6.75 mH, for 0.4 kW and 0.7 kW, 200 VAC |
|
|
 |
AX-REM00K1200-IE | Braking resistor, 200 ohm, 100 W nominal |
|
Datasheet
EN PDF
MX inverter drive, 3.0/4.0 kW (HD/ND), 7.2/8.8 A (HD/ND), 400 VAC, 3~, sensorless vector, max. output freq. 580Hz
MX inverter drive, 7.5/11.0 kW (HD/ND), 18/23 A (HD/ND), 400 VAC, 3~, sensorless vector, max. output freq. 580Hz
MX inverter drive, 7.5/11.0 kW (HD/ND), 33/40 A (HD/ND), 200 VAC, 3~ input, sensorless vector, max. output freq. 580Hz
MX inverter drive, 3.7/5.5 kW (HD/ND), 17.5/19.6 A (HD/ND), 200 VAC, 3~ input, sensorless vector, max. output freq. 580Hz
