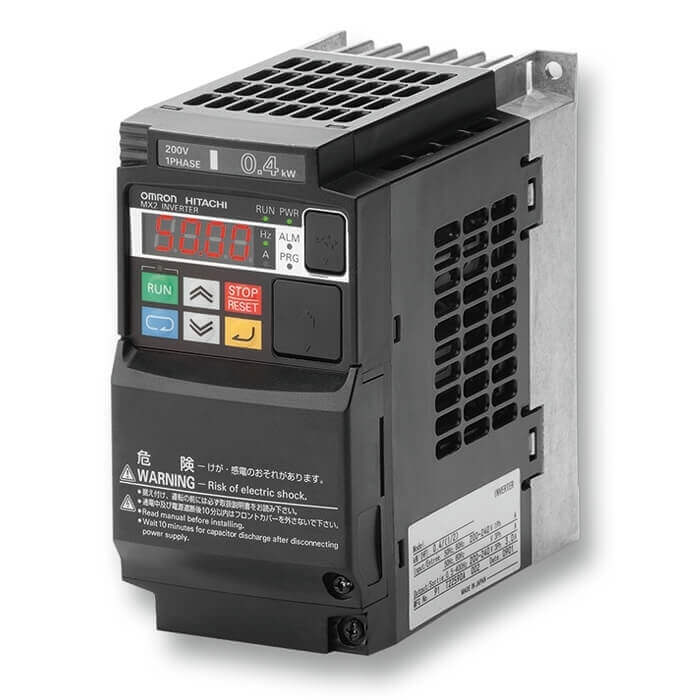

MX inverter drive, 2.2/3.0 kW (HD/ND), 5.5/6.9 A (HD/ND), 400 VAC, 3~, sensorless vector, max. output freq. 580Hz
| Drive control method | Open loop V/f, Open loop vector |
| Drive supply voltage | 400 V three phase |
| Max. motor output at constant torque (HD) | 2.2 kW |
| Max. motor output at variable torque (ND) | 3 kW |
| Built in EMC filter | ❌ |
| Degree of protection (IP) | IP20 |
| Finless type | ❌ |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor |
| Regenerative solutions | As inverter option |
| Communication port(s) | MODBUS Slave, Serial RS-485, USB |
| Communication option(s) | CompoNet Slave, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, PROFIBUS DP Slave |
 |
3G3AX-MX2-DRT-E | DeviceNet option card for MX2 inverter |
|
 |
3G3AX-MX2-ECT | MX2 EtherCAT option card |
|
 |
3G3AX-MX2-EIP-A | MX2 Ethernet/IP option card |
|
 |
3G3AX-MX2-PRT-E | MX2 option card, PROFIBUS DP |
|
 |
3G3AX-OP01 | LED remote operator panel, cable length max. 3m |
|
 |
3G3AX-OP05 | 5 line LCD digital operator with copy function |
|
| AX-FER2102-PE | Ferrite choke, 21mm diameter, for 2.2kW inverters and below |
|
|
 |
AX-FIC4010-SE | Common footprint RFI filter for Compact series (Q2V/V1000/J1000/MX2), 9.4 A, 400 VAC, three phase. Please check datasheet for the correct drive selection. |
|
| AX-FIC4010-SE-LL | Low Leakage common footprint RFI filter for Compact series (Q2V/V1000/J1000/MX2), 9.4 A, 400 VAC. Please check datasheet for the correct drive selection. |
|
|
| AX-RAO11800053-DE | AC output reactor, 5.3 A, 11.8 mH, for 2.2 kW , 400 VAC, 3 phase |
|
|
 |
AX-RC10100069-DE | DC link reactor, 6.9 A, 10.1 mH, for 2.2 kW, 400 VAC |
|
Datasheet
EN PDF
