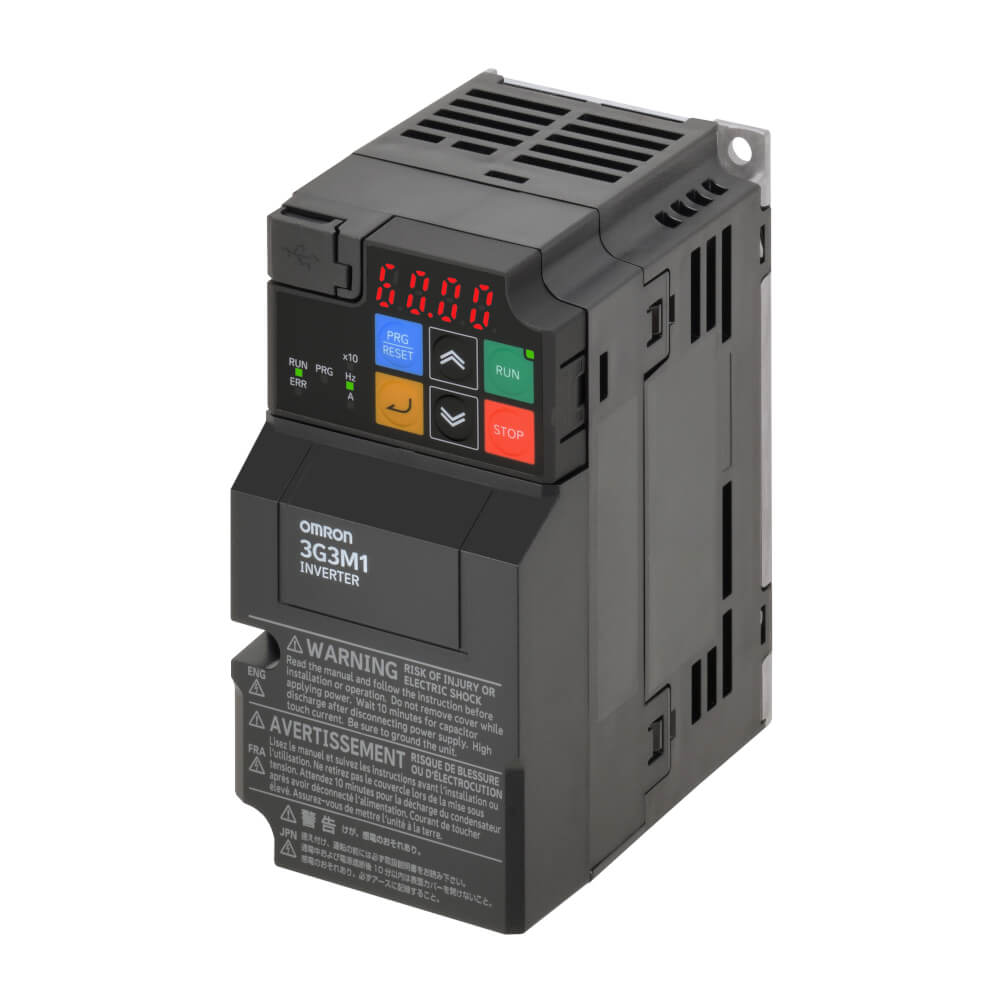

M1 AC Drive, 0.7/1.1 kW (HD/ND), 5.0/6.0 A (HD/ND), 200 VAC, 1~ input,OLV/CLV control, STO (wired), max. output freq. 590 Hz
| Drive control method | Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector, V/f control, Vector control |
| Drive supply voltage | 230 V single phase |
| Max. motor output at constant torque (HD) | 0.7 kW |
| Max. motor output at variable torque (ND) | 1.1 kW |
| Built in EMC filter | ❌ |
| Degree of protection (IP) | IP20 |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor |
| Communication port(s) | MODBUS Slave, Serial RS-485, USB |
| Product Height (unpacked) | 127 mm |
| Product Width (unpacked) | 68 mm |
| Product Depth (unpacked) | 165 mm |
| Product Weight (unpacked) | 900 g |
| Finless type | ❌ |
| AX-FER2102-PE | Ferrite choke, 21mm diameter, for 2.2kW inverters and below |
|
|
| AX-FIC1014-SE | M1 Series RFI filter 14 A, 200 VAC, single phase. |
|
|
| AX-FIC1014-SE-LL | Low Leakage M1 Series RFI filter 14 A, 200 VAC, single phase. |
|
|
| AX-RAI01700140-DE | AC input reactor, 14 A, 1.7 mH, for 0.75 kW sizes, 200 VAC, 1 phase |
|
|
| AX-RAO04100075-DE | AC output reactor, 7.5 A, 4.1 mH, for 1.5 kW, 200 VAC, 1/3 phase |
|
|
| AX-RC02510138-DE | DC link reactor, 13.8 A, 2.51 mH, for 1.5 kW and 2.2 kW, 200 VAC |
|
|
| AX-RC03510093-DE | DC link reactor, 9.3 A, 3.51 mH, for 0.7 kW and 1.5 kW, 200 VAC |
|
|
| AX-REM00K1100-IE | Braking resistor, 100 W, 100 ohm nominal |
|
|
| AX-REM00K2100-IE | Braking resistor, 200 W, 100 ohm nominal |
|
