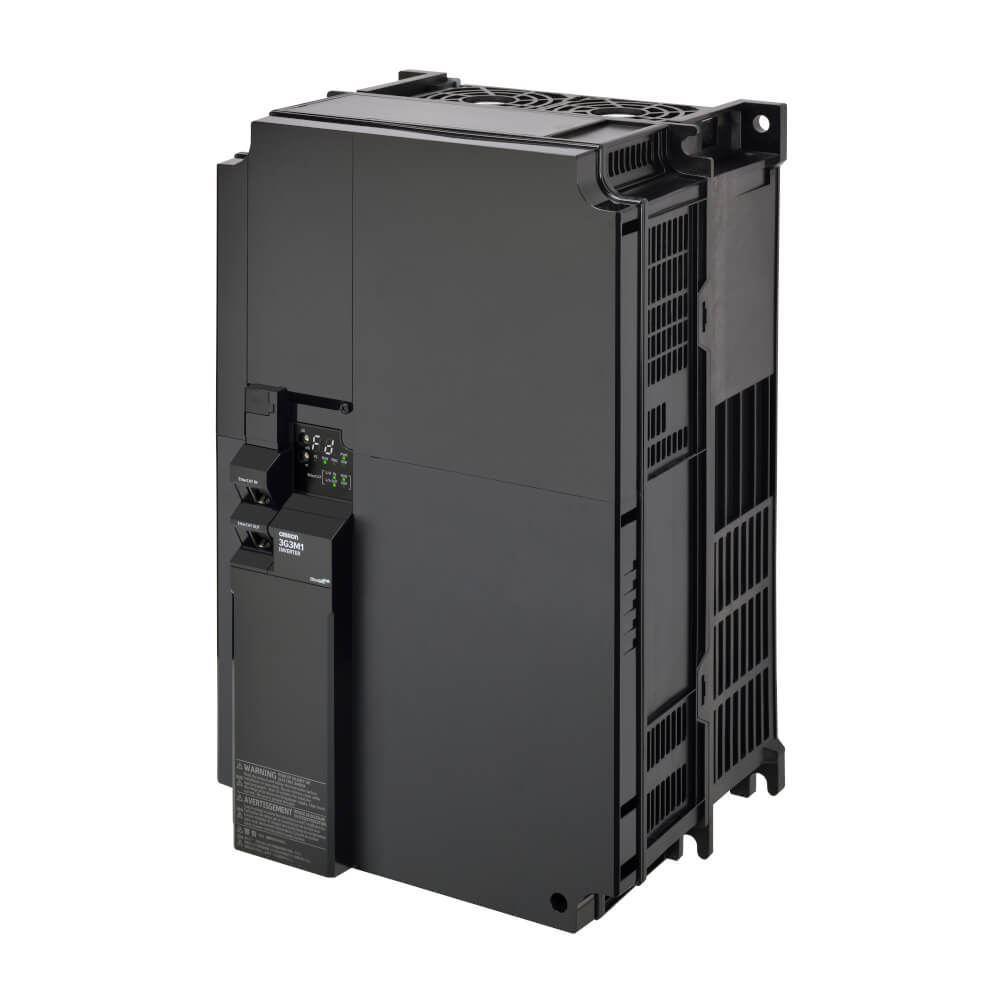

M1 AC Drive, 22/30 kW (HD/ND), 45/60 A (HD/ND), 400 VAC, 3~ input, OLV/CLV control, EtherCAT, STO (FSoE + wired), max. output freq. 590 Hz
| Drive control method | Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector, V/f control, Vector control |
| Drive supply voltage | 400 V three phase |
| Max. motor output at constant torque (HD) | 22 kW |
| Max. motor output at variable torque (ND) | 30 kW |
| Built in EMC filter | ❌ |
| Degree of protection (IP) | IP20 |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor |
| Communication port(s) | EtherCAT Slave, USB |
| Product Height (unpacked) | 400 mm |
| Product Width (unpacked) | 250 mm |
| Product Depth (unpacked) | 208 mm |
| Product Weight (unpacked) | 11000 g |
| Finless type | ❌ |
| AX-FER5045-PE | Ferrite choke, 50mm diameter, for 45kW inverters and below |
|
|
| AX-FIC4095-SE | M1 RFI filter 95 A, 400 VAC, three phase. |
|
|
| AX-FIC4095-SE-LL | Low Leakage M1 RFI filter 95 A, 400 VAC, three phase. |
|
|
| AX-RAI00191150-DE | AC input reactor, 115 A, 0.19 mH, for 45 to 55 kW sizes, 400 VAC, 3 phase |
|
|
| AX-RAI00290780-DE | AC input reactor, 78 A, 0.29 mH, for 30 to 37 kW sizes, 400 VAC, 3 phase |
|
|
| AX-RAO00800750-DE | AC output reactor, 75 A, 0.8 mH, for 37 kW , 400 VAC, 3 phase |
|
|
| AX-RAO01300480-DE | AC output reactor, 48 A, 1.3 mH, for 22 kW , 400 VAC, 3 phase |
|
|
| AX-RC00920797-DE | DC link reactor, 79.7 A, 0.92 mH, for 30 kW, 400 VAC |
|
|
| AX-RC01200644-DE | DC link reactor, 64.4 A, 1.2 mH, for 18.5 to 22 kW, 400 VAC |
|
|
| AX-REM01K1020-IE | Braking resistor, 1100 W, 20 ohm nominal |
|
|
 |
AX-REM01K9017-IE | Braking resistor, 17 ohm, 1900 W nominal |
|
| AX-REM03K5020-IE | Braking resistor, 3500 W, 20 ohm nominal |
|
