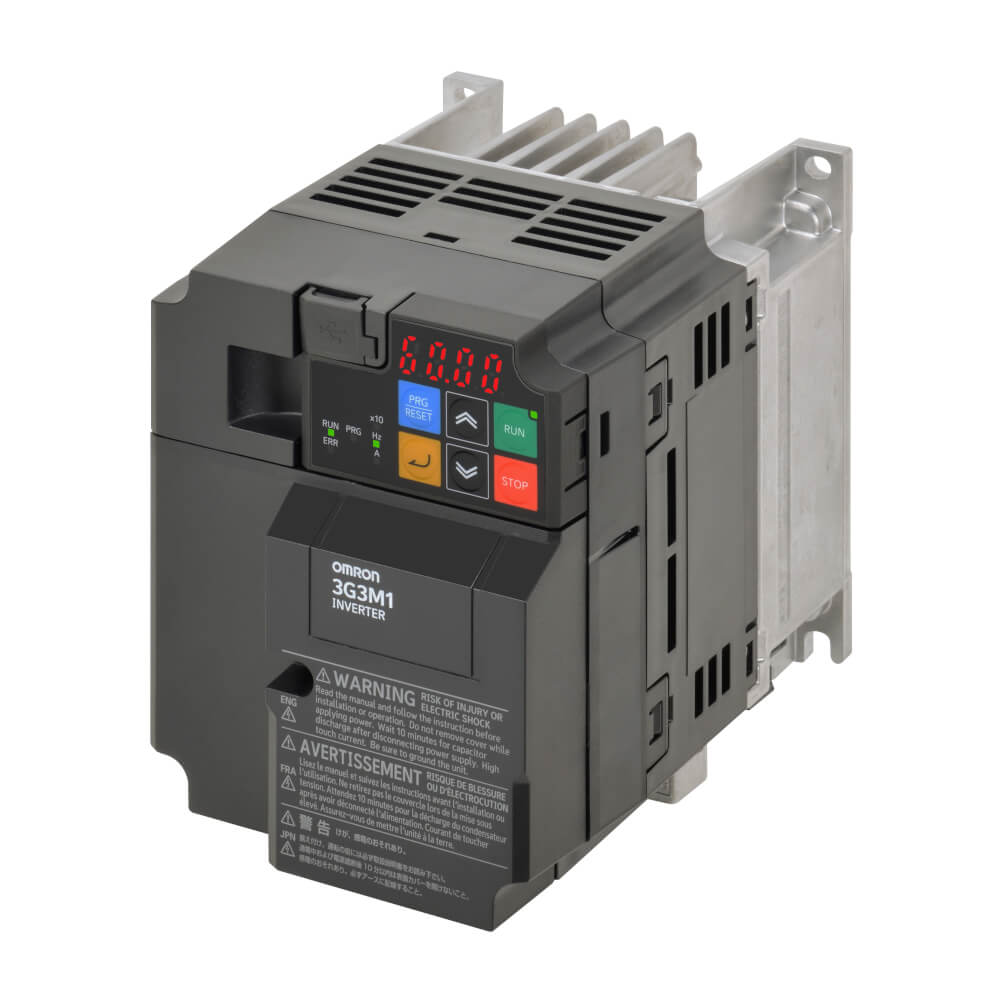

M1 AC Drive, 2.2/3.0 kW (HD/ND), 5.5/6.9 A (HD/ND), 400 VAC, 3~ input, OLV/CLV control, STO (wired), max. output freq. 590 Hz
| Drive control method | Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector, V/f control, Vector control |
| Drive supply voltage | 400 V three phase |
| Max. motor output at constant torque (HD) | 2.2 kW |
| Max. motor output at variable torque (ND) | 3 kW |
| Built in EMC filter | ❌ |
| Degree of protection (IP) | IP20 |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor |
| Communication port(s) | MODBUS Slave, Serial RS-485, USB |
| Product Height (unpacked) | 130 mm |
| Product Width (unpacked) | 110 mm |
| Product Depth (unpacked) | 156 mm |
| Product Weight (unpacked) | 1400 g |
| Finless type | ❌ |
| AX-FER2102-PE | Ferrite choke, 21mm diameter, for 2.2kW inverters and below |
|
|
| AX-FIC4011-SE | M1 RFI filter 11 A, 400 VAC, three phase. |
|
|
| AX-FIC4011-SE-LL | Low Leakage M1 RFI filter 11 A, 400 VAC, three phase. |
|
|
| AX-RAI01630090-DE | AC input reactor, 9 A, 1.63 mH, for 2.2 to 3.0 kW sizes, 400 VAC, 3 phase |
|
|
| AX-RAO11800053-DE | AC output reactor, 5.3 A, 11.8 mH, for 2.2 kW , 400 VAC, 3 phase |
|
|
 |
AX-RC06400116-DE | DC link reactor, 11.6 A, 6.4 mH, for 4 kW, 400 VAC |
|
 |
AX-RC10100069-DE | DC link reactor, 6.9 A, 10.1 mH, for 2.2 kW, 400 VAC |
|
 |
AX-REM00K1200-IE | Braking resistor, 200 ohm, 100 W nominal |
|
| AX-REM00K3160-IE | Braking resistor, 300 W, 160 ohm nominal |
|
|
| AX-REM00K4200-IE | Braking resistor, 400 W, 200 ohm nominal |
|
