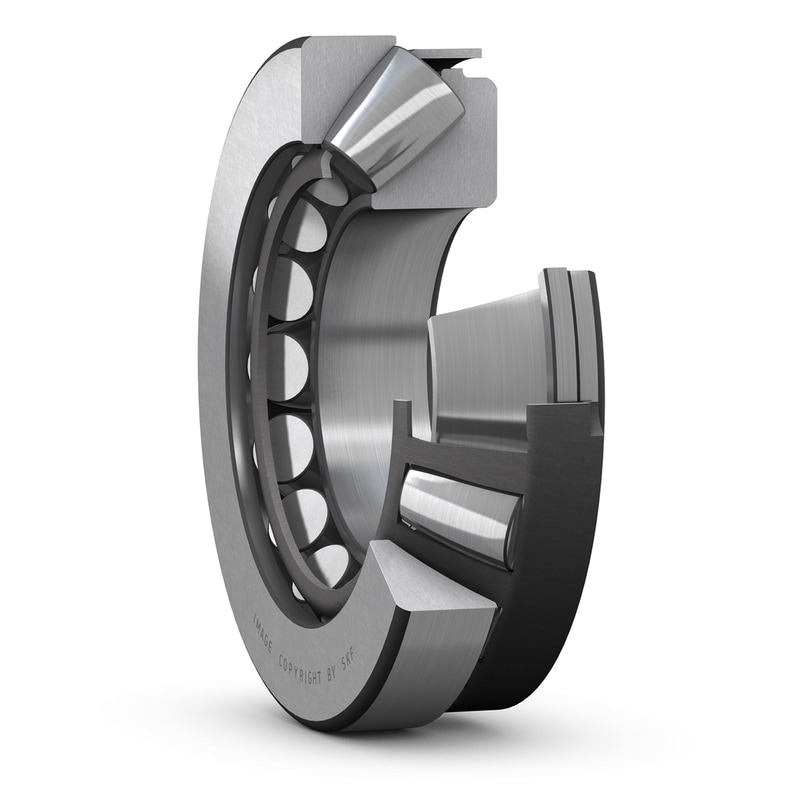

Spherical roller thrust bearings accommodate very heavy axial and considerable radial loads. They have the highest load rating of all thrust bearings, enabling compact, high power density bearing arrangements. By combining two or more spherical roller thrust bearings, it is possible to create a bearing arrangement that is either self-aligning, allowing misalignment of the shaft, or very stiff.
| d |
200 mm
|
Bore diameter |
|---|---|---|
| D |
400 mm
|
Outside diameter |
| H |
122 mm
|
Height |
| d1 |
≈ 350 mm
|
Outside diameter of shaft washer end side face |
| D1 |
≈ 278 mm
|
Shoulder diameter outer ring |
| B |
77 mm
|
Width shaft washer or length of shaft washer bore diameter that fits on shaft (bearings with a stamped steel cage) |
| B1 |
107.1 mm
|
Height shaft washer + cage |
| C |
59.4 mm
|
Height housing washer |
| s |
122 mm
|
Distance from shaft washer end side face to pressure point |
| r1,2 |
min. 5 mm
|
Chamfer dimension shaft washer |
| da |
min. 295 mm
|
Diameter of shaft abutment |
|---|---|---|
| db1 |
max. 217.5 mm
|
Abutment diameter of spacer ring |
| db2 |
max. 234 mm
|
Outside diameter of spacer ring |
| Da |
max. 337 mm
|
Diameter of housing abutment |
| ra |
max. 4 mm
|
Fillet radius |
| Basic dynamic load rating | C |
3 200 kN
|
|---|---|---|
| Basic static load rating | C0 |
9 000 kN
|
| Fatigue load limit | Pu |
850 kN
|
| Reference speed |
850 r/min
|
|
| Limiting speed |
1 600 r/min
|
|
| Minimum axial load factor | A |
7.7
|
| Mass bearing |
72 kg
|
