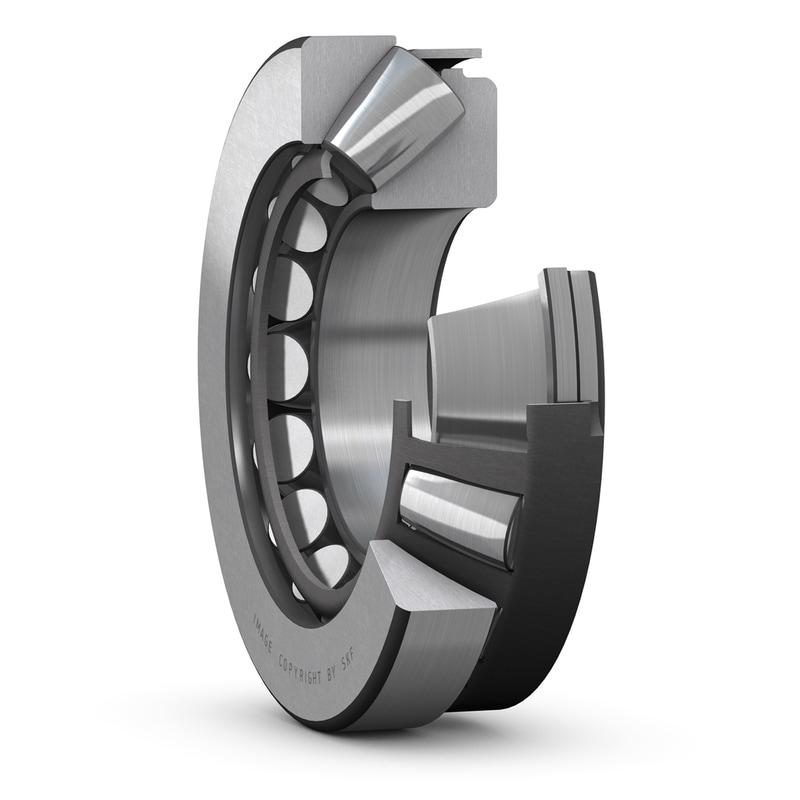

Spherical roller thrust bearings accommodate very heavy axial and considerable radial loads. They have the highest load rating of all thrust bearings, enabling compact, high power density bearing arrangements. By combining two or more spherical roller thrust bearings, it is possible to create a bearing arrangement that is either self-aligning, allowing misalignment of the shaft, or very stiff.
| d |
130 mm
|
Bore diameter |
|---|---|---|
| D |
225 mm
|
Outside diameter |
| H |
58 mm
|
Height |
| d1 |
≈ 203 mm
|
Outside diameter of shaft washer end side face |
| D1 |
≈ 166 mm
|
Shoulder diameter outer ring |
| B |
36.7 mm
|
Width shaft washer or length of shaft washer bore diameter that fits on shaft (bearings with a stamped steel cage) |
| B1 |
50.6 mm
|
Height shaft washer + cage |
| C |
30.1 mm
|
Height housing washer |
| s |
75.6 mm
|
Distance from shaft washer end side face to pressure point |
| r1,2 |
min. 2.1 mm
|
Chamfer dimension shaft washer |
| da |
min. 175 mm
|
Diameter of shaft abutment |
|---|---|---|
| db1 |
max. 138 mm
|
Abutment diameter of spacer ring |
| db2 |
max. 143 mm
|
Outside diameter of spacer ring |
| Da |
max. 194 mm
|
Diameter of housing abutment |
| ra |
max. 2 mm
|
Fillet radius |
| Basic dynamic load rating | C |
865 kN
|
|---|---|---|
| Basic static load rating | C0 |
2 500 kN
|
| Fatigue load limit | Pu |
280 kN
|
| Reference speed |
1 600 r/min
|
|
| Limiting speed |
2 600 r/min
|
|
| Minimum axial load factor | A |
0.59
|
| Mass bearing |
9 kg
|
