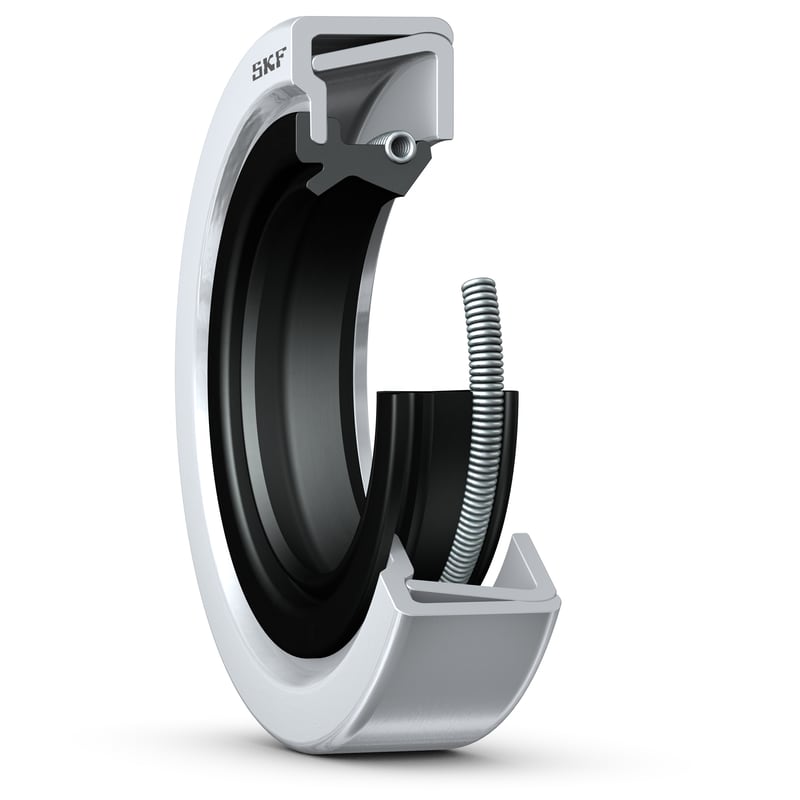

14035Radial shaft seal with double metal case, single sealing lip and auxiliary contacting lip, for oil or grease
Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. CRSHA1 seals are designed with a double metal case, a sealing lip and an contacting auxiliary lip made of elastomer for best sealing against the rotating shaft. The seal also has a garter spring to optimize sealing against the shaft.
| Type of outside diameter |
Metal-cased
|
| Lip material |
Nitrile rubber (NBR)
|
| Seal design |
CRSHA1
|
Dimensions
| d1 |
35.916 mm
|
Shaft diameter |
|---|---|---|
| D |
57.15 mm
|
Housing bore diameter |
| b |
6.35 mm
|
Seal width |
Application and operating conditions
| Operating temperature |
min. -40 °C
|
| Operating temperature |
max. 100 °C
|
| Circumferential speed |
max. 6.5 m/s
|
| Rotational speed |
max. 3 456 r/min
|
| Pressure differential |
0.07 N/mm²
|
