Product characteristics
Process connection for welding gun
| Process connection |
M22 x 1,5 |
Process connection for water supply
| Process connection |
threaded connection R 1/2 |
Flow monitoring
| Measuring range [l/min] |
0.1…25 |
Application
| Special feature |
Gold-plated contacts |
| Application |
Industrial applications / factory automation; cooling water control; cooling water extraction |
| Installation |
connection to pipe by means of an adapter; tube connection |
| Measuring parameters |
flow; temperature; pressure; totaliser |
| Control |
manual |
| Media |
conductive liquids; hydrous media; glycol solutions |
| Medium temperature [°C] |
-10…70 |
| Pressure rating [bar] |
10 |
| Volume expansion cylinder [ml] |
99.75 |

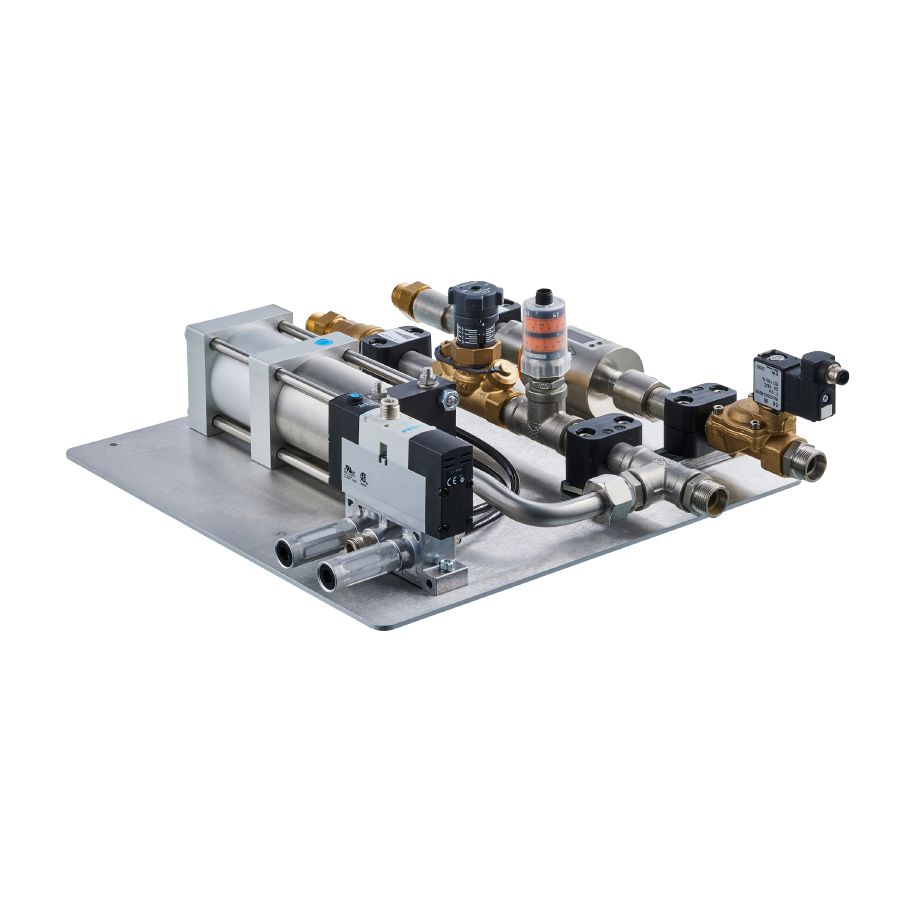

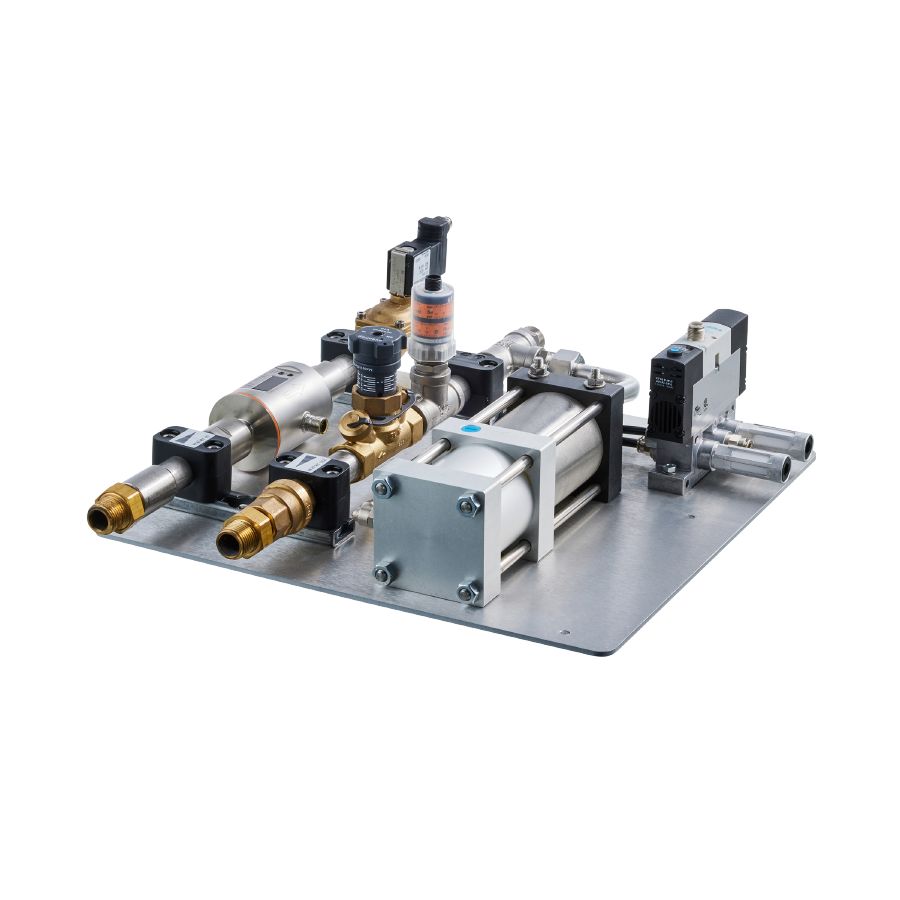

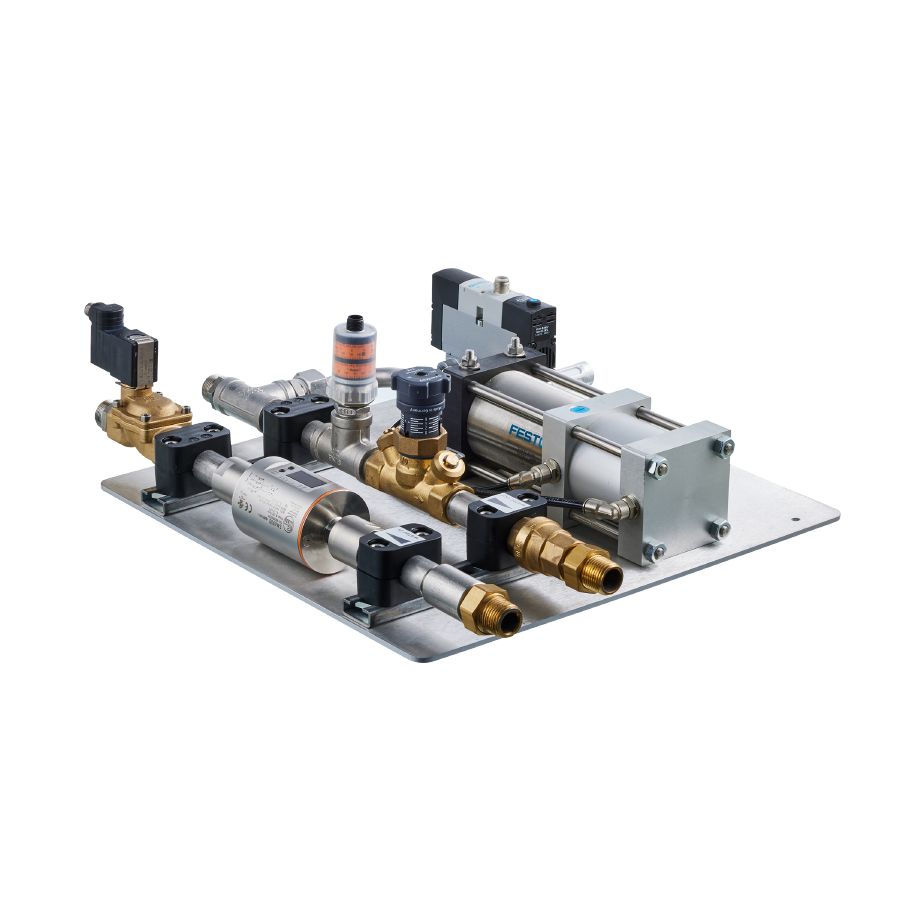

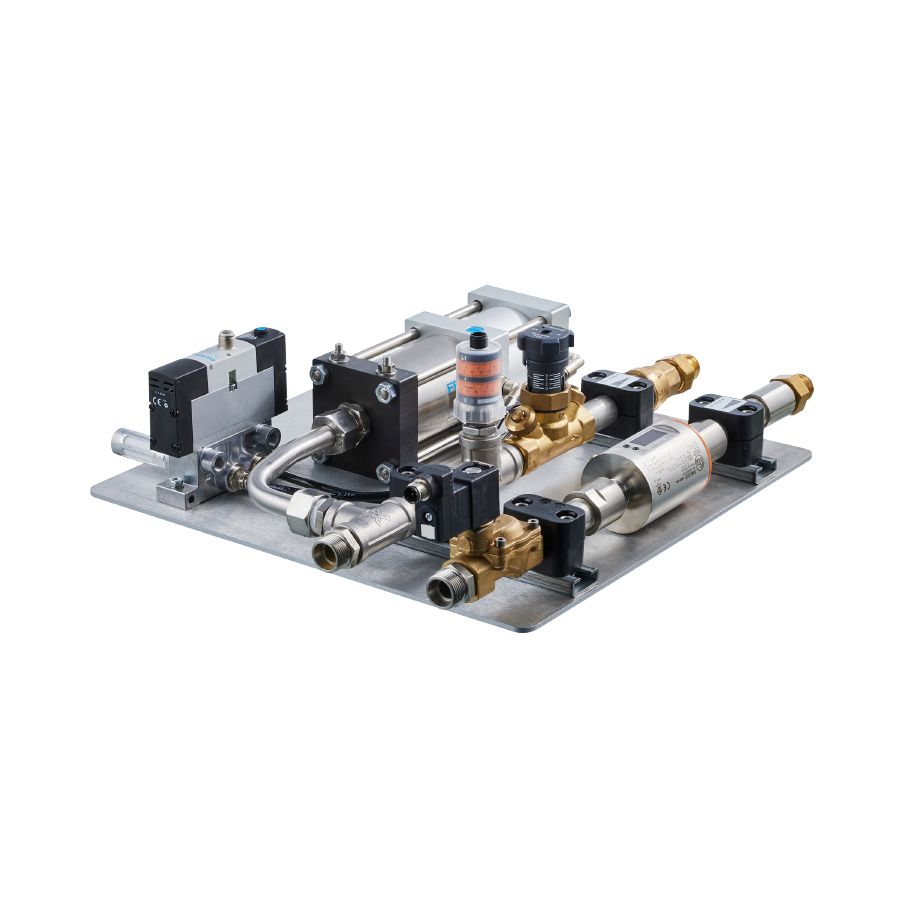

| Components |
| Magnetic-inductive flow meter, SM6000 |
| Electronic pressure monitor, PK6524 |
| water stop valve |
| regulating valve |
| backstop |
| expansion cylinder |
| 5/2-way valve |
|
Outputs
| Output signal |
switching signal; analogue signal; pulse signal; IO-Link (configurable) |
| Output function |
normally open / normally closed; (parameterisable) |
Measuring/setting range
Pressure monitoring
| Measuring range [bar] |
0…10 |
Flow monitoring
| Measuring range [l/min] |
0.1…25 |
Temperature monitoring
| Measuring range [°C] |
-20…80 |
Response times
| Risk time (response time for safety-related faults) [ms] |
500 |
Operating conditions
| Ambient temperature [°C] |
-10…50 |
| Storage temperature [°C] |
-25…80 |
| Protection |
IP 67; (sensors) |
Tests / approvals
| EMC |
| DIN EN 61000-6-2 |
|
| DIN EN 61000-6-3 |
|
|
| Pressure Equipment Directive |
Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
Mechanical data
| Weight [g] |
8702.8 |
| Type of mounting |
with mounting plate |
| Materials |
stainless steel (1.4404 / 316L); PBT-GF20; PC; FKM; TPE; PBT; gunmetal (2.1096.01) |
| Materials (wetted parts) |
stainless steel (1.4404 / 316L); PEEK; FKM; NBR; PVDF; PTFE |
Process connection for welding gun
| Process connection |
M22 x 1,5 |
Process connection for water supply
| Process connection |
threaded connection R 1/2 |
Electrical connection
|
Connector: 4 x M12; Contacts: gold-plated |
