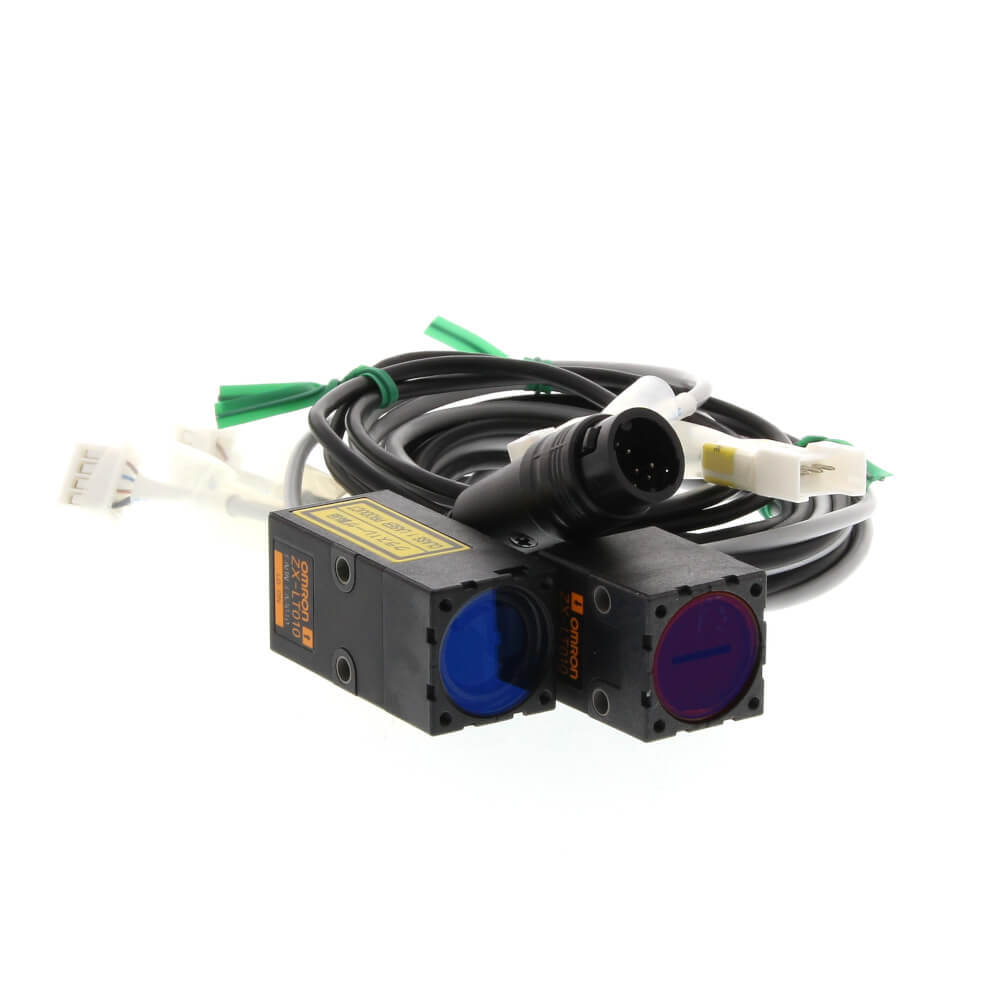

Laser sensor head, through-beam, 30mm beam width (requires amplifier)
| Measurement width | 30 mm |
| Minimum sensing object | 300 µm |
| Repeat accuracy | 12 µm |
| Output type | -5 to 5 V, 1 to 5 V, 4 to 20 mA, PNP/NPN |
| Sensing distance | 500 mm |
| Sensing distance (min.) | 0 mm |
| Sensing method | Through-beam |
| Material housing | Zinc |
| Degree of protection (IP) | IP40 |
 |
ZX-LDA11-N 2M | Smart Sensor amplifier and display, selectable voltage/current output, high/pass/low transistor NPN outputs |
|
|
ZX-LDA41-N 2M | Smart Sensor amplifier and display, selectable voltage/current output, high/pass/low transistor PNP outputs |
|
| ZX-SF11 | RS-232C communications interface |
|
|
| ZX-XC4A 4M | Extension cable (amplifier to head), 4m |
|
Datasheet
EN PDF
Laser displacement sensor head, 40+/-10mm, spot focus (requires amplifier)
Laser sensor head, through-beam, 10mm beam width (requires amplifier)
Laser displacement sensor head, 100+/-40mm, line beam (requires amplifier)
Smart Sensor amplifier and display, selectable voltage/current output, high/pass/low transistor NPN outputs
