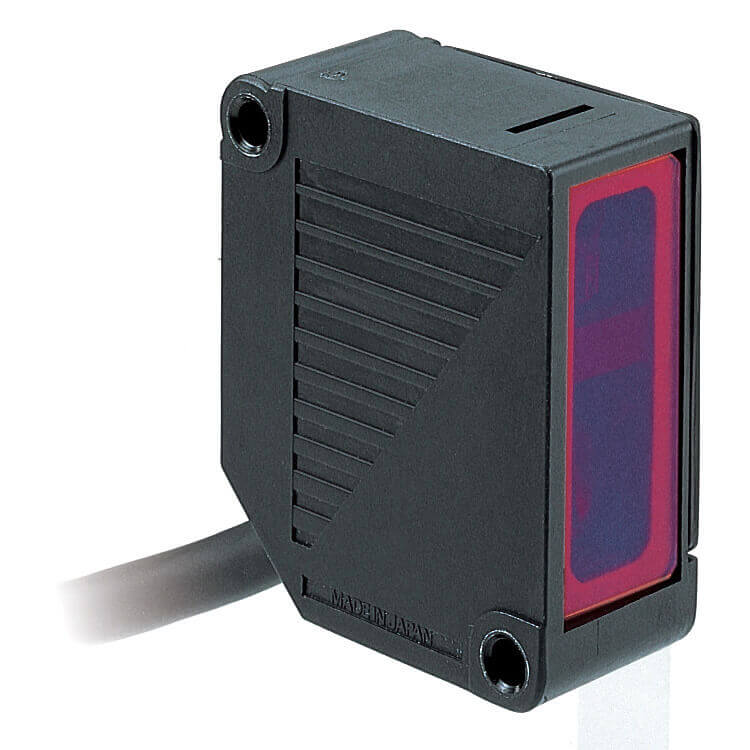

Laser displacement sensor head, 100+/-40mm, spot focus (requires amplifier)
| Repeat accuracy | 16 µm |
| Relative linearity deflection | 0.2 % |
| Sensing distance | 100 mm |
| Sensing distance (min.) | 60 mm |
| Spot size | 0.1 mm |
| Sensing method | Diffuse reflective |
| Material housing | PBT |
| Degree of protection (IP) | IP50 |
 |
ZX-LDA11-N 2M | Smart Sensor amplifier and display, selectable voltage/current output, high/pass/low transistor NPN outputs |
|
|
ZX-LDA41-N 2M | Smart Sensor amplifier and display, selectable voltage/current output, high/pass/low transistor PNP outputs |
|
| ZX-SF11 | RS-232C communications interface |
|
|
| ZX-XC4A 4M | Extension cable (amplifier to head), 4m |
|
Datasheet
EN PDF
Laser displacement sensor head, 40+/-10mm, spot focus (requires amplifier)
Smart Sensor amplifier and display, selectable voltage/current output, high/pass/low transistor NPN outputs
Smart Sensor amplifier and display, selectable voltage/current output, high/pass/low transistor PNP outputs
Laser sensor head, through-beam, 10mm beam width (requires amplifier)
