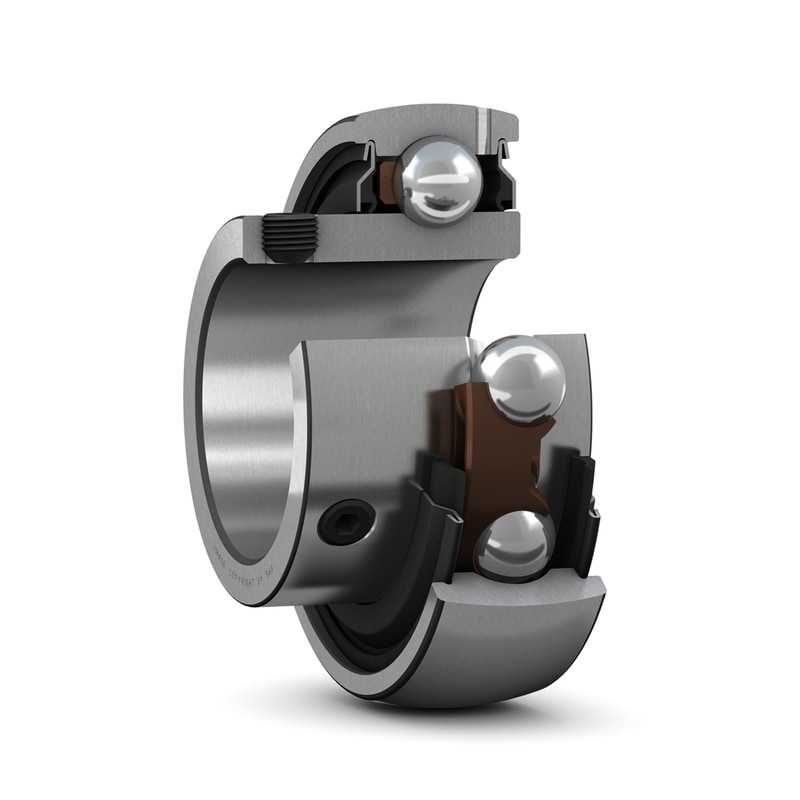

Insert bearings are based on sealed deep groove ball bearings. This variant of insert bearing is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on one side, and is locked onto the shaft by tightening two (set) screws on the inner ring.
| d |
22.225 mm
|
Bore diameter |
|---|---|---|
| D |
52 mm
|
Outside diameter |
| B |
27.2 mm
|
Width of inner ring |
| C |
15 mm
|
Width of outer ring |
| d1 |
≈ 33.74 mm
|
Outside diameter of inner ring |
| B4 |
5 mm
|
Distance face to thread centre |
| r1,2 |
min. 0.6 mm
|
Chamfer dimension of inner ring |
| s1 |
19.5 mm
|
Distance from locking device side face to raceway centre |
| Basic dynamic load rating | C |
14 kN
|
|---|---|---|
| Basic static load rating | C0 |
7.8 kN
|
| Fatigue load limit | Pu |
0.335 kN
|
| Limiting speed |
7 000 r/min
|
|
|
Limiting speed with shaft tolerance h6
|
||
| Calculation factor | f0 |
14
|
| Mass |
0.19 kg
|
| Set screw | G2 |
1/4-28 UNF
|
|---|---|---|
| Hexagonal key size for set screw | N |
3.175 mm
|
| Recommended tightening torque for set screw |
4 N·m
|
