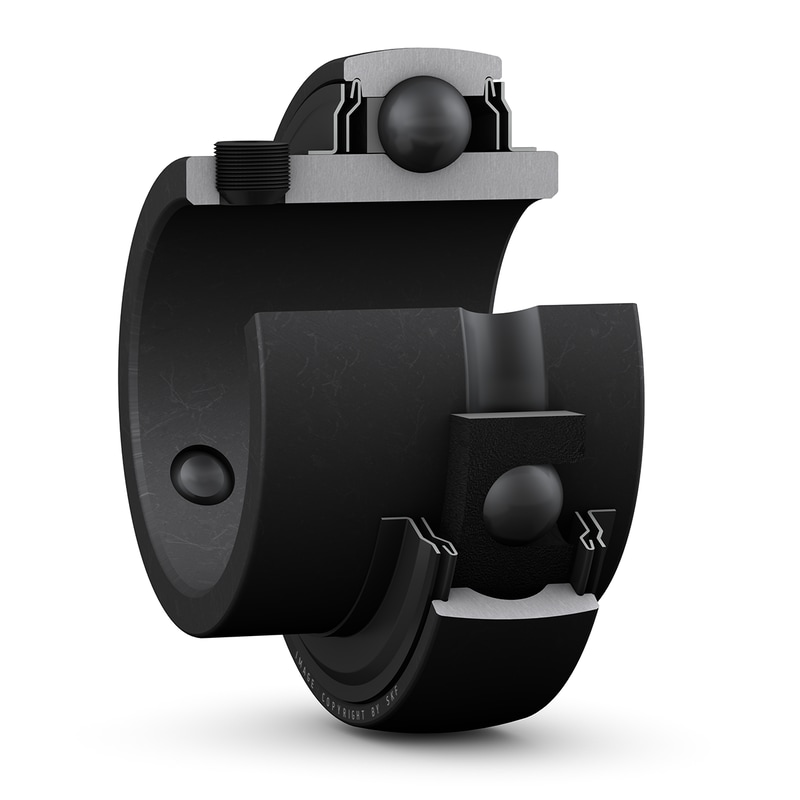

SKF high temperature bearings are designed to deliver increased reliability, reduced complexity and decreased environmental impact in operating temperatures up to 350 °C (660 °F). This makes these products very suitable for applications in kiln trucks, roller hearth furnaces, and bakeries, where there are both constant and alternating directions of rotation.
| Running in required |
No
|
| d |
70 mm
|
Bore diameter |
|---|---|---|
| D |
125 mm
|
Outside diameter |
| B |
69.9 mm
|
Width inner ring |
| C |
28 mm
|
Width outer ring |
| d1 |
≈ 87.05 mm
|
Shoulder diameter inner ring |
| B4 |
12 mm
|
Distance from locking device side face to thread centre |
| s1 |
39.7 mm
|
Distance from locking device side face to raceway centre |
| r1,2 |
min. 1.5 mm
|
Chamfer dimension |
| Basic dynamic load rating | C |
62.4 kN
|
|---|---|---|
| Basic static load rating | C0 |
45 kN
|
| Limiting speed |
80 r/min
|
|
| Operating temperature | T |
max. 350 °C
|
| Mass bearing |
1.95 kg
|
| Set screw | G2 |
M10x1
|
|---|---|---|
| Hexagonal key size for set screw | N |
5 mm
|
| Recommended tightening torque for set screw |
16.5 N·m
|
